Key Features
- 11,000 lb. tensile strength rod
- 16" bendng radius
- Standard units come with swivel rod end and pulling eye
- Deluxe version includes an accessory kit
- 7/16" diameter, pultrusion processed, high strength fiberglass rod
- Frames allow for vertical or horizontal payout
- Frame size: 41-3/4"L x 16-3/4"W x 44-1/2"H
- 3/8" UNC male threaded rod end
- Low profile with wheels inside the frame width
- Steel brake handle
- Available in up to 1,500' lengths
- Frame mounted terminal box for transmitter hook up
- 25 gauge copper tracer wire imbedded in rod
PDF Catalogs & Additional Info

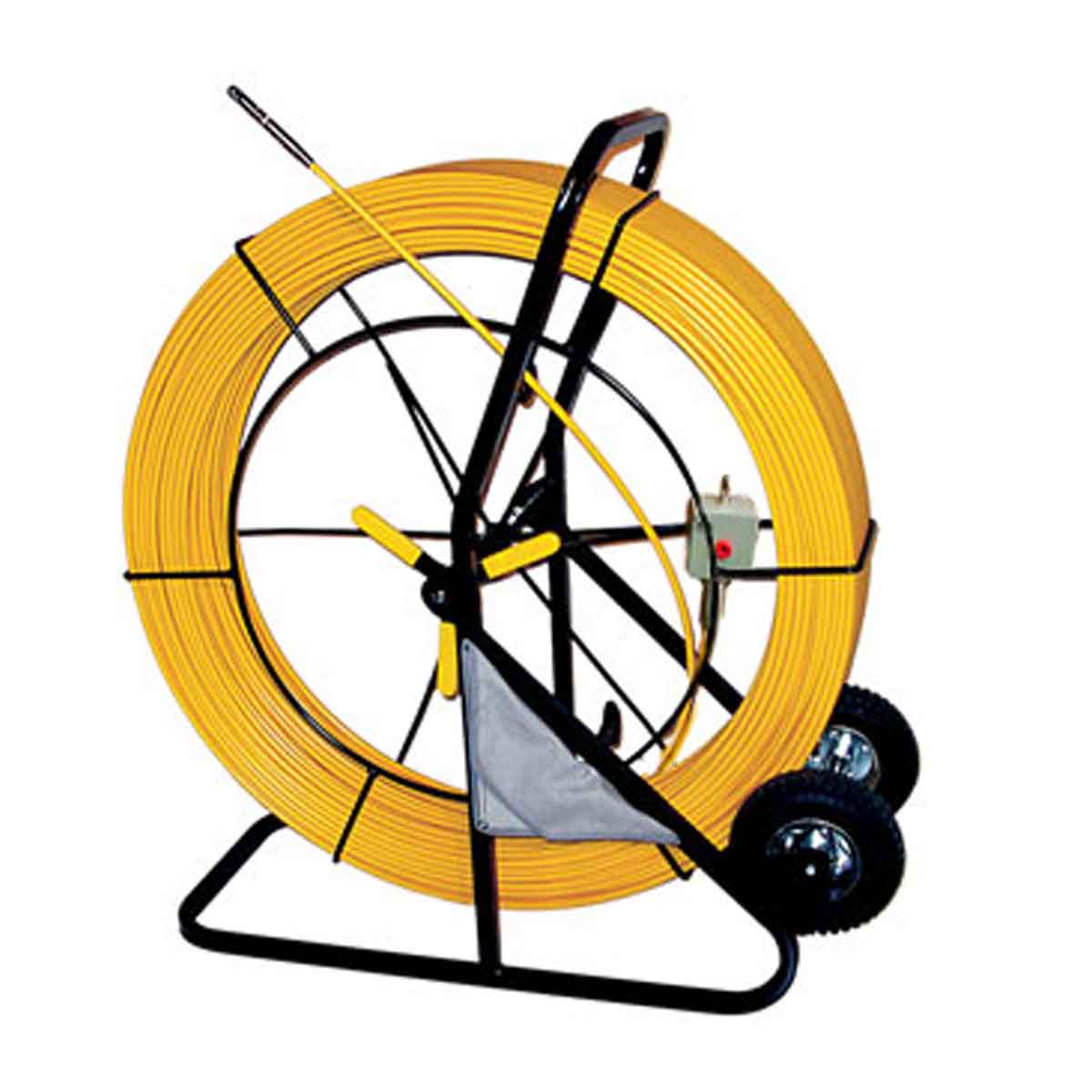

DCD 7/16" Detectable Ruf Rod Duct Rodder
It is recommended that a roller guide be used to help the signal create a better connection between the end of the rod and the wall of the ducting. This helps the signal to complete the circuit back to earth.
The Standard Ruf Rods include a female rod end, a swivel rod end, and a pulling eye. The Deluxe version includes following accessories: (1) Splice Connector, (1) Flexible Guide Head, (1) Roller Guide, (1) Clevis End, (1) Fiberglass Adhesive, (1) Rod Gripper, and (1) Accessory Pouch.
The core of the rod is manufactured by the pultrusion process. This involves impregnating high strength continuous glass fiber filaments with a liquefied resin. The fibers are drawn into a heated die where the resin matrix is cured, bonding the fibers together and allowing mechanical loads to be transmitted through the matrix and distributed amongst the fibers. The resulting pultruded rod combines both the high stiffness required to push the rod through long distances of ducting, with the flexibility to handle tight bends without damage. This inner core is then coated with a highly durable, scratch resistant polypropylene sheath which protects the core from mechanical damage.
A 25 gauge copper tracer wire imbedded in the rod allows a locate signal to be transmitted through the length rod.
| Part # | Rod Diameter (OD) | Length | Duct Size | Size (H x W x D) | Weight |
| 56200-400X | 7/16" | 400' | 4" or larger | 44.5" x 41.75" x 16.75" | 84 lbs. |
| 56200-400X | 7/16" | 500' | 4" or larger | 44.5" x 41.75" x 16.75" | 94 lbs |
| 56200-400X | 7/16" | 600' | 4" or larger | 44.5" x 41.75" x 16.75" | 104 lbs. |
| 56200-400X | 7/16" | 700' | 4" or larger | 44.5" x 41.75" x 16.75" | 114 lbs |
| 56200-400X | 7/16" | 800' | 4" or larger | 44.5" x 41.75" x 16.75" | 124 lbs. |
| 56200-400X | 7/16" | 900' | 4" or larger | 44.5" x 41.75" x 16.75" | 134 lbs. |
| 56200-400X | 7/16" | 1,000' | 4" or larger | 44.5" x 41.75" x 16.75" | 144 lbs. |
| 57000-006 | 7/16" | Kit includes: One (1) splice connector, one (1) flexible guide head, one (1) roller guide, one (1) clevis end, one (1) adhesive tube, one (1) rod gripper and an accessory pouch | |||
