Duct Seal-Offs & Hose Assembly

Duct Seal-Off cones are available in three different sizes that cover duct sizes from 1/2” to 6”. The cones can be used in conjunction with the 58400 Series Pull Line Blower or with the 58000-000 Control Valve if using an air compressor.

The Seal-Offs cones connect to the 2" hose of the 58400 series Pull Line Blower using the 58420-040 Seal Off body.

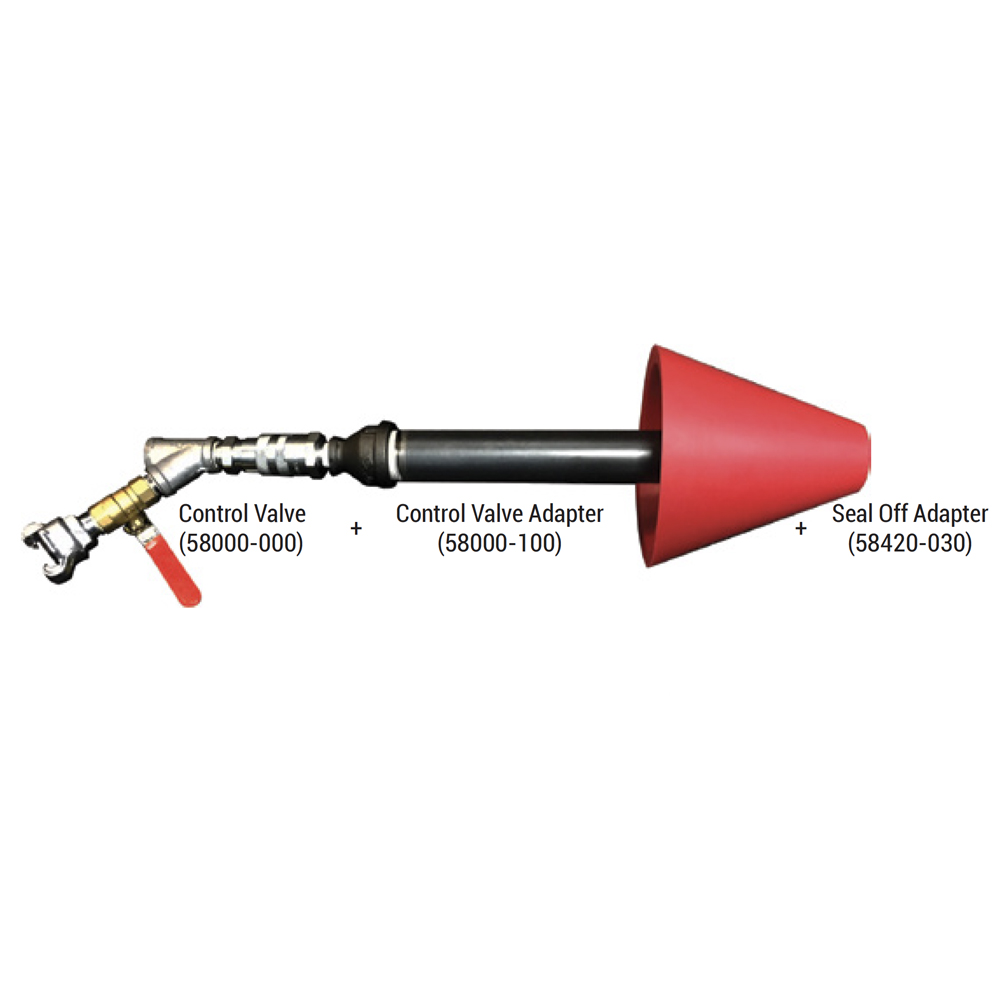

When using an air compressor, the 58000-100 Control Valve adapter allows the Seal-Offs to connect to the 58000-000 Control Valve. The Control Valve attaches directly to a standard 1/2" male air compressor hose fitting. The 58420-040 Seal-Off Body is not required when using the Seal-Offs with the 58000-000 Control Valve.

PRODUCT

PRICE

Seal-Off Nozzle for 1/2" - 1-1/2" Duct (58420-010)

$42.35

Seal-off Nozzle for 1-1/2" - 3" Duct (58420-020)

$65.30

Seal-off Nozzle for 2-1/2" - 6" Duct (58420-030)

$127.07

Seal-off Body (58420-040)

$249.12

Seal-off Kit C/w Seal-off Body & 3 Seal-off Adaptors (58420-000)

$399.51

Hose Assembly 2" X 25' optional hose (58410-025)

$253.45

Hose Assembly 2" X 15' Long (58410-015)

$188.11

ACCESSORIES

Seal-Off Nozzle Adapter for Control Valve (58000-100)

$171.15

Control Valve with 3/16", 1/4" and 3/8" Rope Guides (58000-000)

$175.55

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Description	Weight

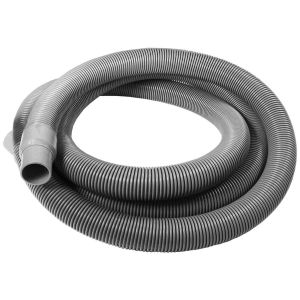

58410-025	Hose Assembly - 2" diameter x 25' length	10.5 lbs

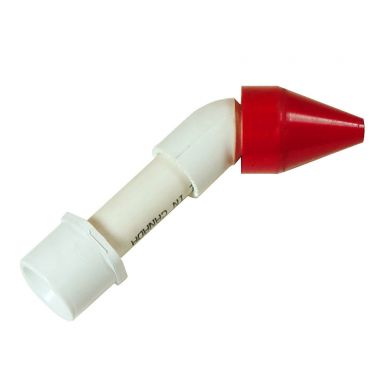

58420-010	Seal-Off Adapter for 0.5" to 1.5" ducts	0.36 lbs

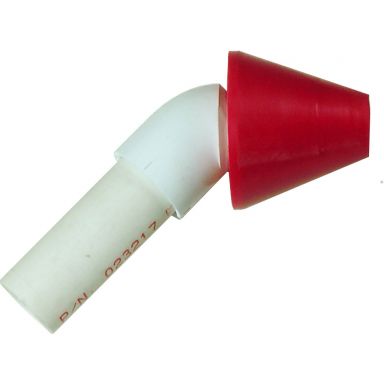

58420-020	Seal-Off Adapter for 1.5" to 3" ducts	0.72 lbs

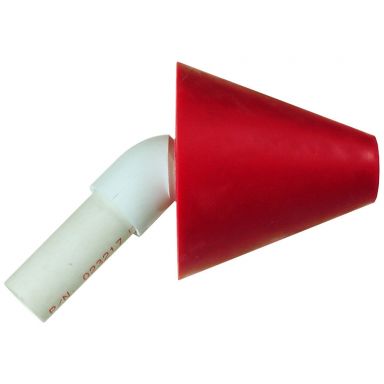

58420-030	Seal-Off Adapter for 2.5" to 6" ducts	2.01 lbs

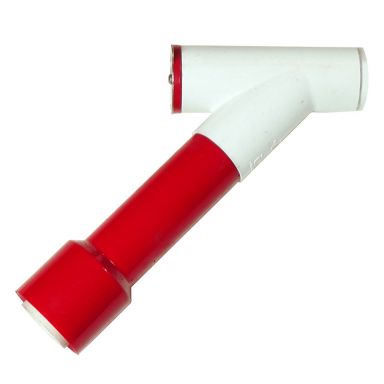

58420-040	Seal-Off Body for All Adapter Sizes	1.46 lbs

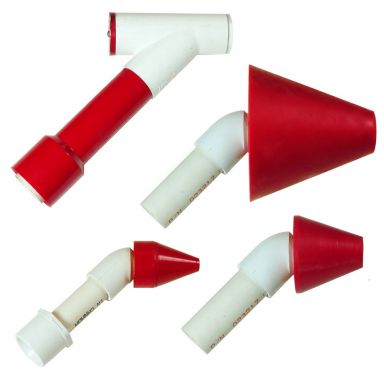

58420-000	Seal-Off Kit (Seal Off Body & All 3 Adapter Sizes)	4.55 lbs
58400-110	110V Pull Line Blower Kit w/Seal-Off Kit, 25' Hose Assembly	46 lbs
