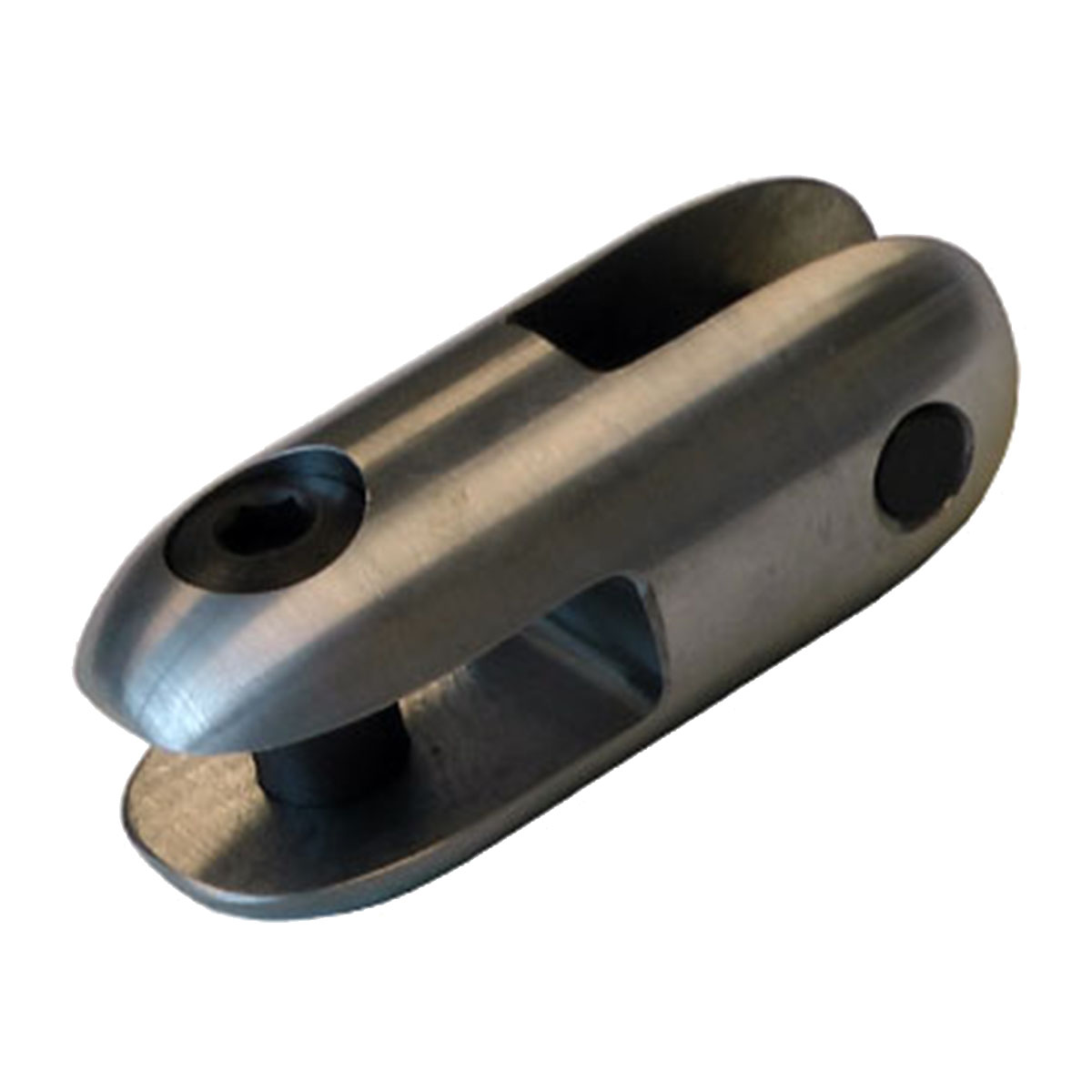

Can-Link Rope Connectors

Series 00520 Connectors make it easy to connect items with lugs or wire loop fittings, perfect for attaching wire mesh grips to pulling wires.

With multiple size options, all constructed of high strength stainless steel, and many slotted or hexagon hardened clevis pins to choose from, these versatile connectors can be customized to meet the demands of almost any pulling application.

PRODUCT

PRICE

Can-link Connector 2,500 lb 7/8" Diameter (00520-010)

Quote Only

Can-link Connector 5,000 lb 1-1/4" Diameter (00520-020)

Quote Only

Can-link Connector 9,000 lb 1-1/2" Diameter (00520-027)

Quote Only

Can-link Connector 15,000 lb 2" Diameter (00520-035)

Quote Only

Can-link Connector 25,000 lb 2-3/8" Diameter (00520-040)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

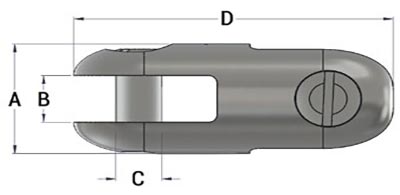

Part #	3:1 SafeWorking Load	A	B	C	D	Weight
00520-010	2,500 lb	7/8”	3/8”	5/16”	2-1/8”	0.17 lb
00520-020	5,000 lb	1-1/4”	17/32”	13/32”	2-7/8”	0.46 lb
00520-027	9,000 lb	1-1/2”	19/32”	1/2”	3-3/8”	0.73 lb
00520-035	15,000 lb	2”	25/32”	11/16”	4-9/16”	2.0 lb
00520-040	25,000 lb	2-13/32”	1”	7/8”	6-7/32”	4.0 lb
