Rope-to-Swivel Connectors

Made entirely from stainless steel (including the sheave), Series 00521 Connectors make it easy to connect two pulling ropes for longer runs. The series 00521 rope to rope connector is available in one size, supporting ropes with up to 7/8" diameter and an amazing 15,000 lbs 3:1 safe working load.
PRODUCT
PRICE

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
Total: $0.00


Sign in or register to access Job Lists.

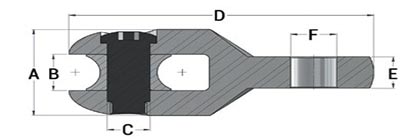

Rope-to-Swivel Connectorss diagram
Part # 3:1 Safe
Working Load
Maximum
Rope Diameter
A B C D E F Weight Fits Line
Swivel
00522-020 15,000 lb 0.625" 1.75" 0.75" 0.6875" 4.875" 0.65625" 0.75" 1.6 lb 00505-030
00505-035
00522-020A 15,000 lb 0.625" Same as above without sheave 1.3 lb
00522-025 7,000 lb 0.875" 2" 0.9375" 0.6875" 5.3125" 0.5" 0.53125" 2.1 lb 00505-020
00505-025
00505-027
00522-025A 7,000 lb 0.875" Same as above without sheave 1.8 lb
00522-035 15,000 lb 0.875" 2" 0.9375" 0.6875" 5.375" 0.65625" 0.75" 2.3 lb 00505-030
00505-035
00522-035A 15,000 lb 0.875" Same as above without sheave 2.0 lb
00522-040 25,000 lb 0.875" 2” 1" 0.875" 6.21875" 0.875" 0.9375" 3.9 lb 00505-040
00522-040A 25,000 lb 0.875" Same as above without sheave 3.6 lb
