Rope-to-Rope Connectors

Made entirely from stainless steel (including the sheave), Series 00521 Connectors make it easy to connect two pulling ropes for longer runs. The series 00521 rope to rope connector is available in one size, supporting ropes with up to 7/8" diameter and an amazing 15,000 lbs 3:1 safe working load.
PRODUCT
PRICE

Quote Only

Quote Only

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
Total: $0.00


Sign in or register to access Job Lists.

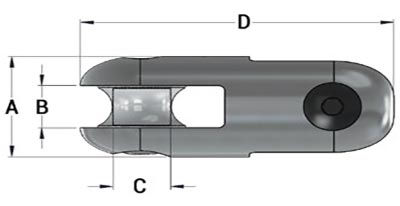

Rope-to-Rope Connectors diagram

Part # 3:1 Safe Working Load Maximum Rope Diameter A B C D Weight
00521-020 15,000 lb 0.625" 1.75" 0.75" 0.6875" 4.875" 1.6 lb
00521-035 15,000 lb 0.875" 2" 0.9375" 0.6875" 5.5" 2.7 lb
00521-040 25,000 lb 0.875" 2.40625" 1" 0.6875" 6.21875" 4.5 lb
00521-045 25,000 lb 1.375" 2.90625" 1.40625" 0.875" 8.40625" 9.3 lb
