Key Features
- No ghost signals
- One-hand locating and mapping

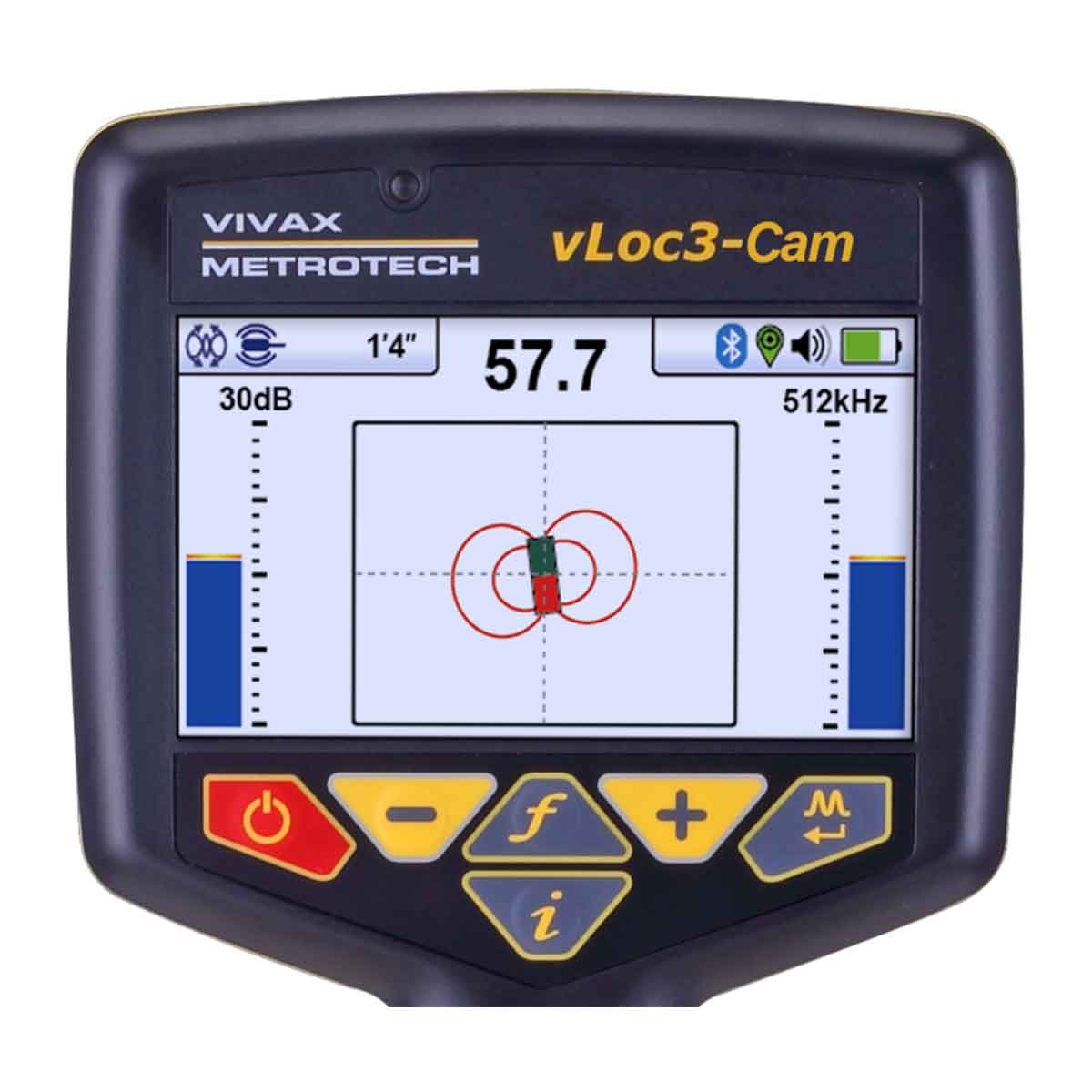

- Graphical locate display
- Sonde locate and pushrod trace modes
- Optional Bluetooth option for GPS mapping
- High visibility color 4.3”/10cm Display

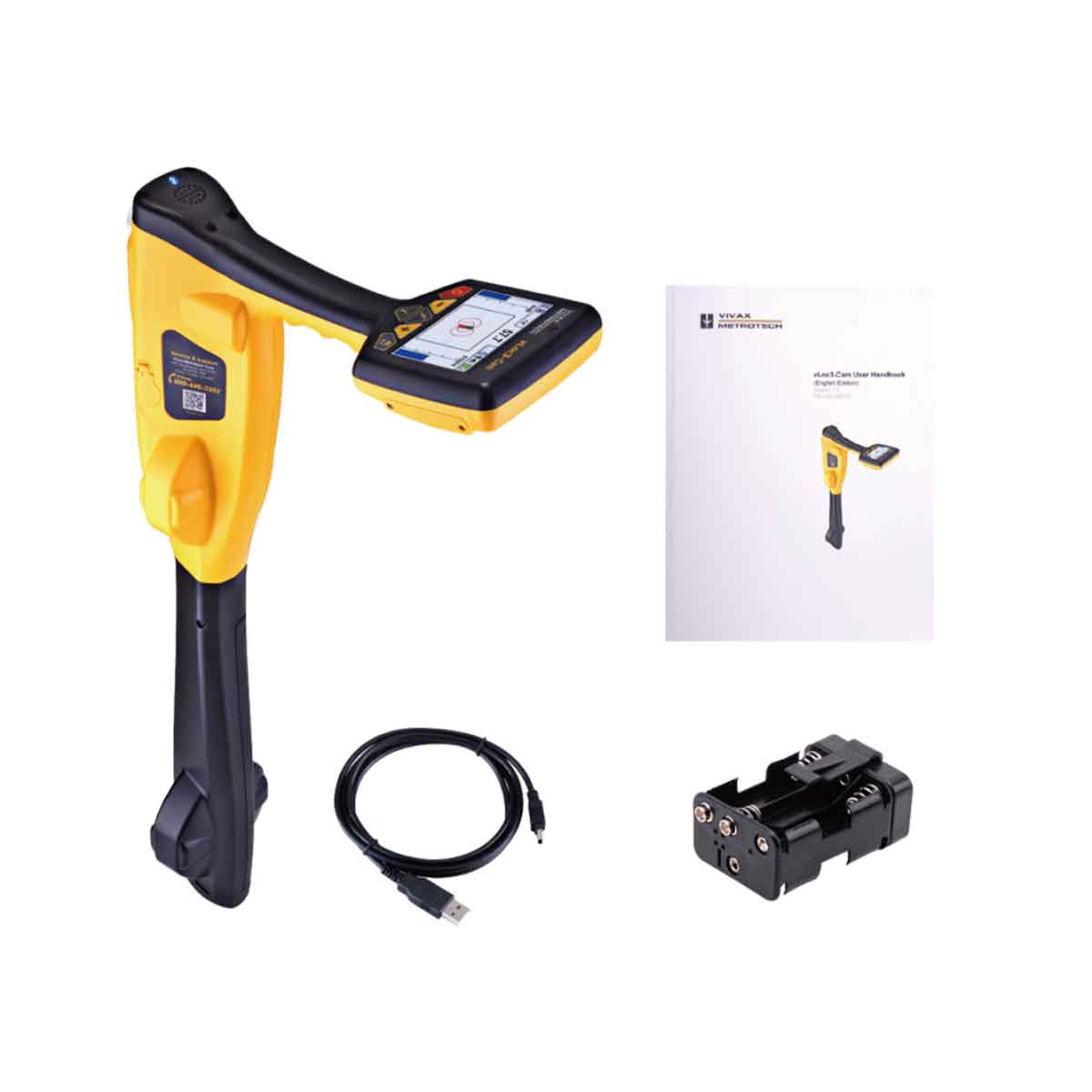

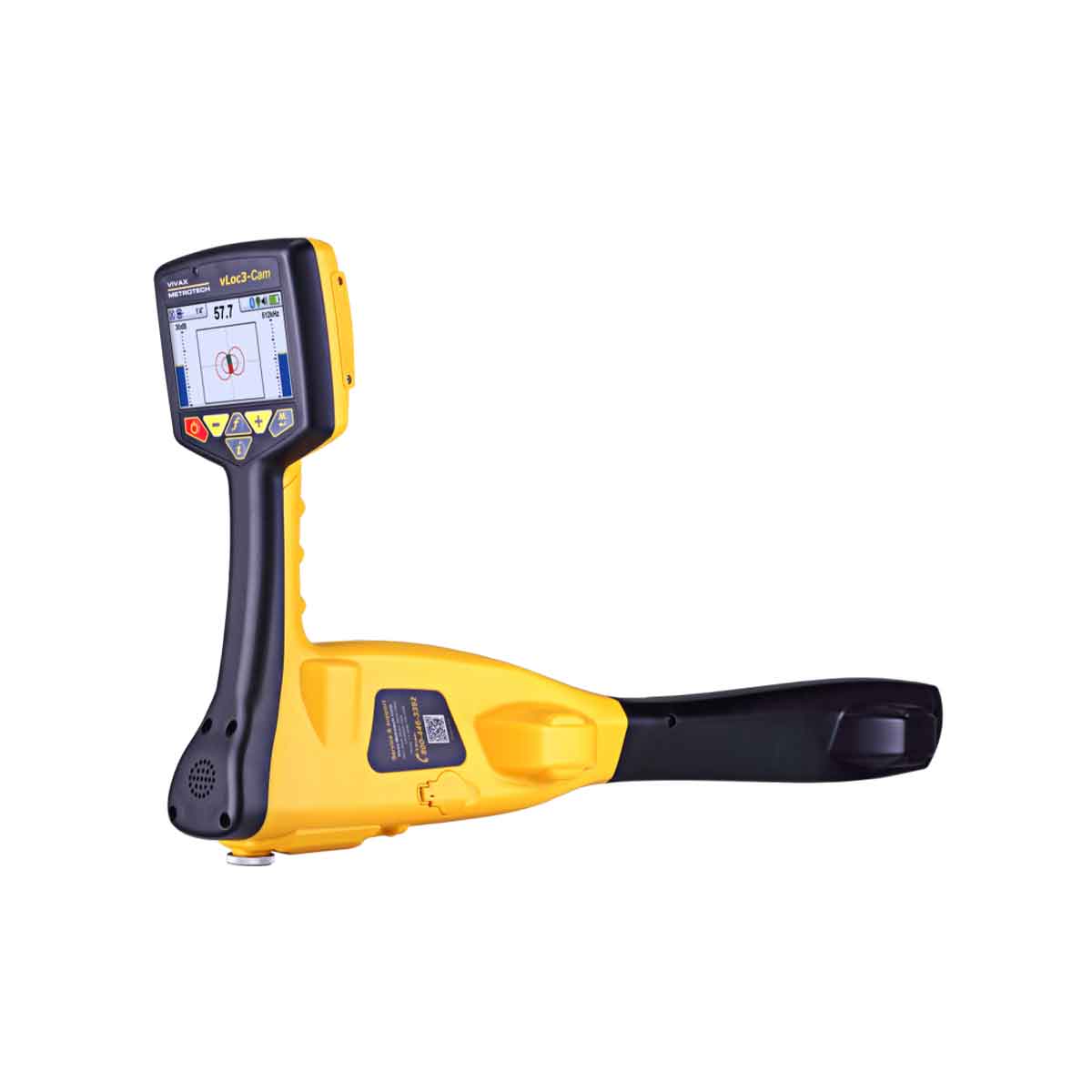

vLoc3-Cam Pipe Camera & Sonde Locator
The vLoc3-Cam includes multiple sonde frequencies making it compatible with the major push cameras and crawler cameras on the market. The Pushrod Trace mode shows a second display geared for tracing the path of the pushrod deployed in the pipe or tracing pipes with an optional portable transmitter.
The vLoc3-Cam comes with two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/60 Hz from nearby or overhead power lines. For active locating, with the use of a portable transmitter, the vLoc3-Cam comes with an 83.1kHz frequency for tracing the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets as well as locating ungrounded small diameter drop wires and inducing signals through the soil, onto services when direct connecting is not an option.
WCT Products is the Southern California Distributor for Vivax-Metrotech products. Reach out for a quote or demonstration and we'll be in touch!
