Cable Sheaves w/ Hangers

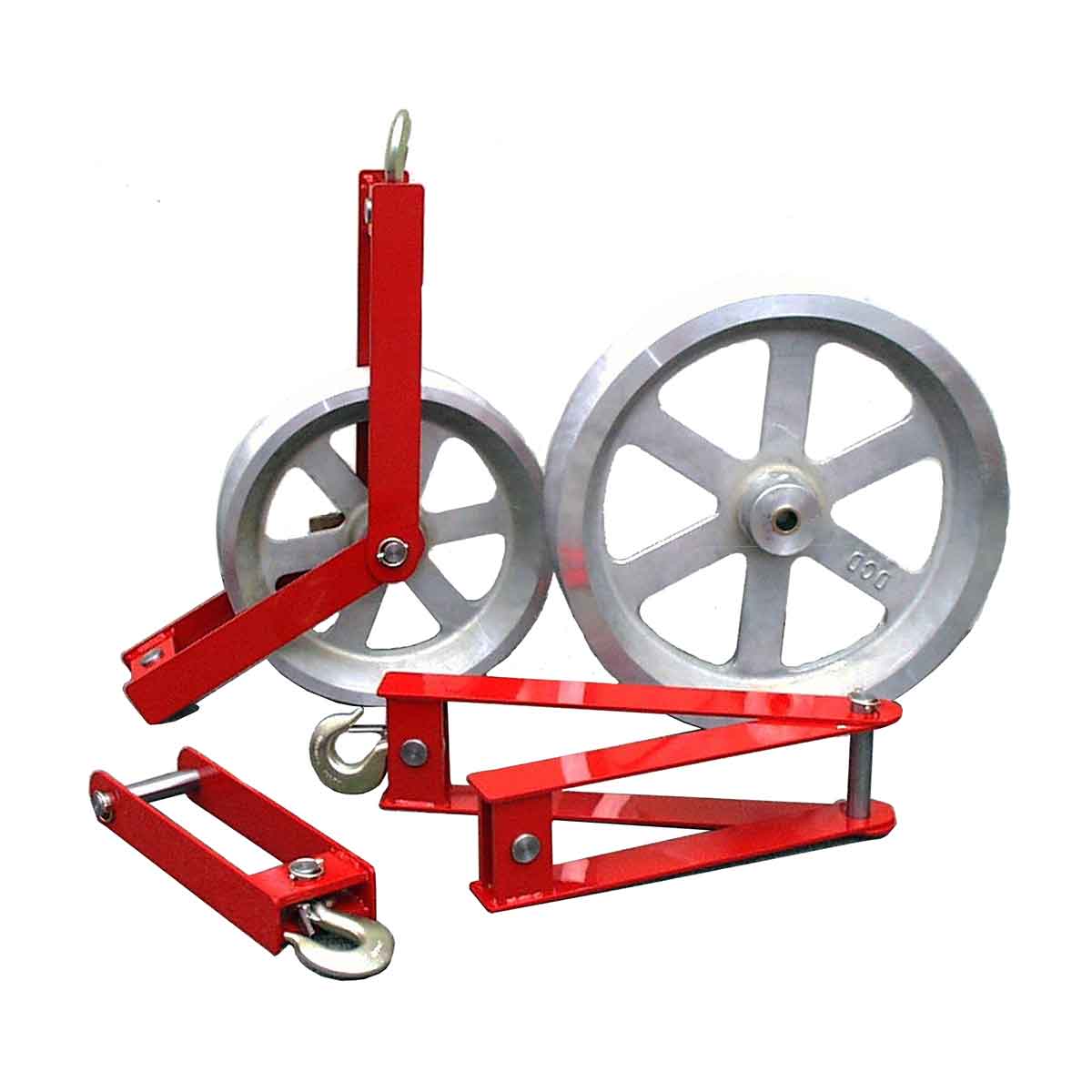

Single or Double Hangers for use with our cable sheaves. The sheaves and hangers may be purchased as assemblies or individually. The Single Hangers are provided with a safety hook and the Double Hangers have one hook and one pin through which a rope may be fed or other items attached. A great feature of the hangers is the ease with which they are assembled/attached to either a sheave or a quadrant. A simple pin with a handle at one end and a locking pin at the other does the job. It should be noted that the handle at one end of the pin may be used to support the hanger in a horizontal position should that be necessary. All parts are designed to take 10,000 lbs. line load for a 3:1 Safety Factor.
PRODUCT
PRICE

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
Total: $0.00


Sign in or register to access Job Lists.
Sheave with Single Hanger Sheave with Double Hanger Single Hanger Only Double Hanger Only Sheave Only Sheave Size
(Width x Diameter)
32000-420 32100-420 32800-400 32810-400 32900-420 4" x 20"
32000-526 32100-526 32800-500 32810-500 32900-526 5" x 26"
2000-611 32100-611 32800-600 32810-600 32900-611 6" x 11"
32000-620F* 32100-620F 32800-600 32810-600 32900-620F 6" x 20"
32000-626 32100-626 32800-601 32810-601 32900-626 6" x 26"
32000-811 32100-811 32800-800 32810-800 32900-811 8" x 11"
32000-811F* 32100-811F 32800-800 32810-800 32900-811F 8" x 11"
