Line Darts & Ultra Light Birds
Line Darts
Series 58300 Birds feature tapered cones, providing better flexibility for blowing around bends, and better sealing with increased speed when blowing under pressure. Cones are color coded to correspond with the 58200 Duct Seal Kits and cover 1" to 6" nominal duct sizes. Replacement cones are available too.Ultra Light Birds
The all polyurethane Series 58320 Ultra-Light Birds are a fraction of the weight of the line darts, tough enough to blow through 2" to 6" conduits, but thin and flexible enough to pull back if they get stuck.
The Line Darts and Ultra-Light birds have a similar dual cone design. The Line Darts have a metalic rods and eyes while the Ultra-Light Birds are made entirely polyurethane to reduce weight. Both styles can be ordered as individual units for a paticular size duct or as kits for a variety of sizes.
| Part # | Description / Nominal Duct Size | Length | Weight |

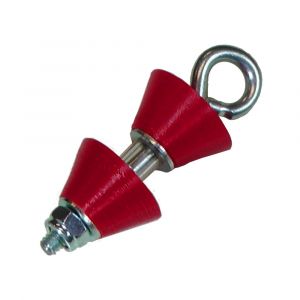

| 58300-100 | Red Line Dart for 1" Ducts | 2.625" | 0.04 lb |

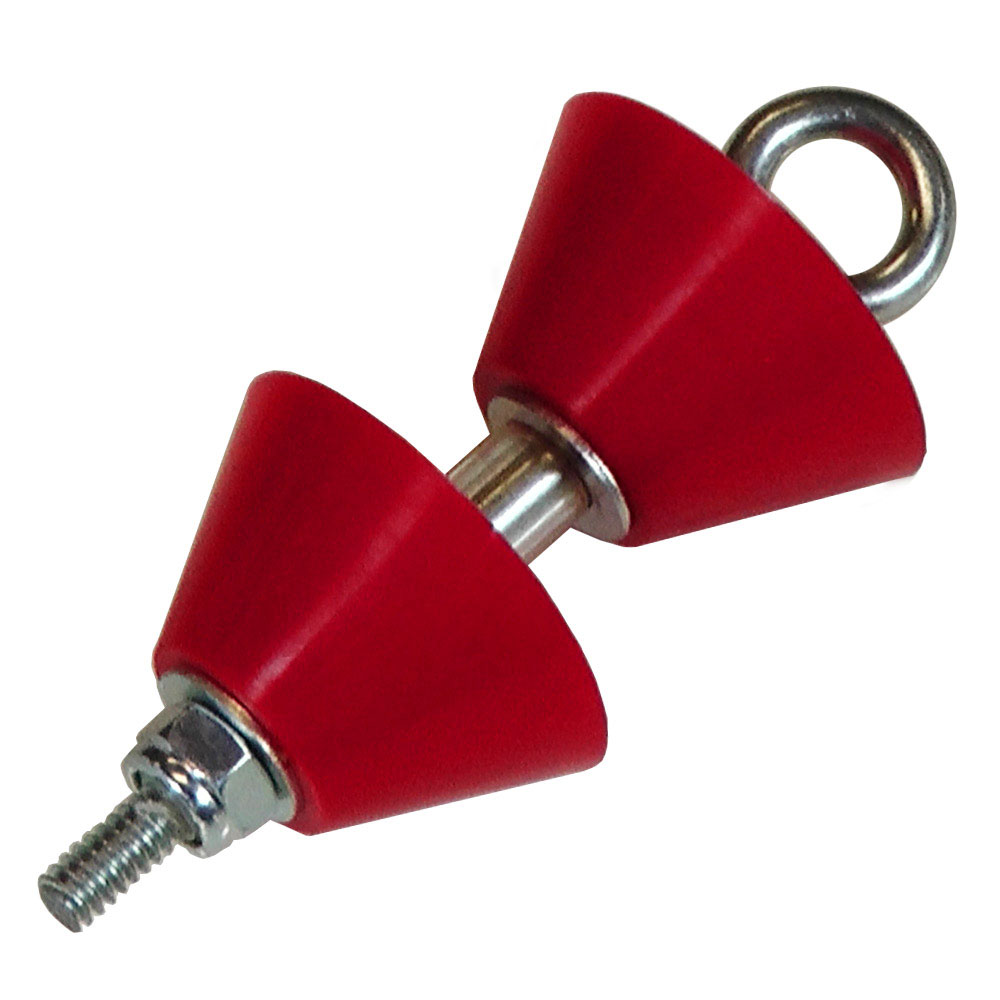

| 58300-125 | Yellow Line Dart for 1.25" Ducts | 3.0625" | 0.06 lb |

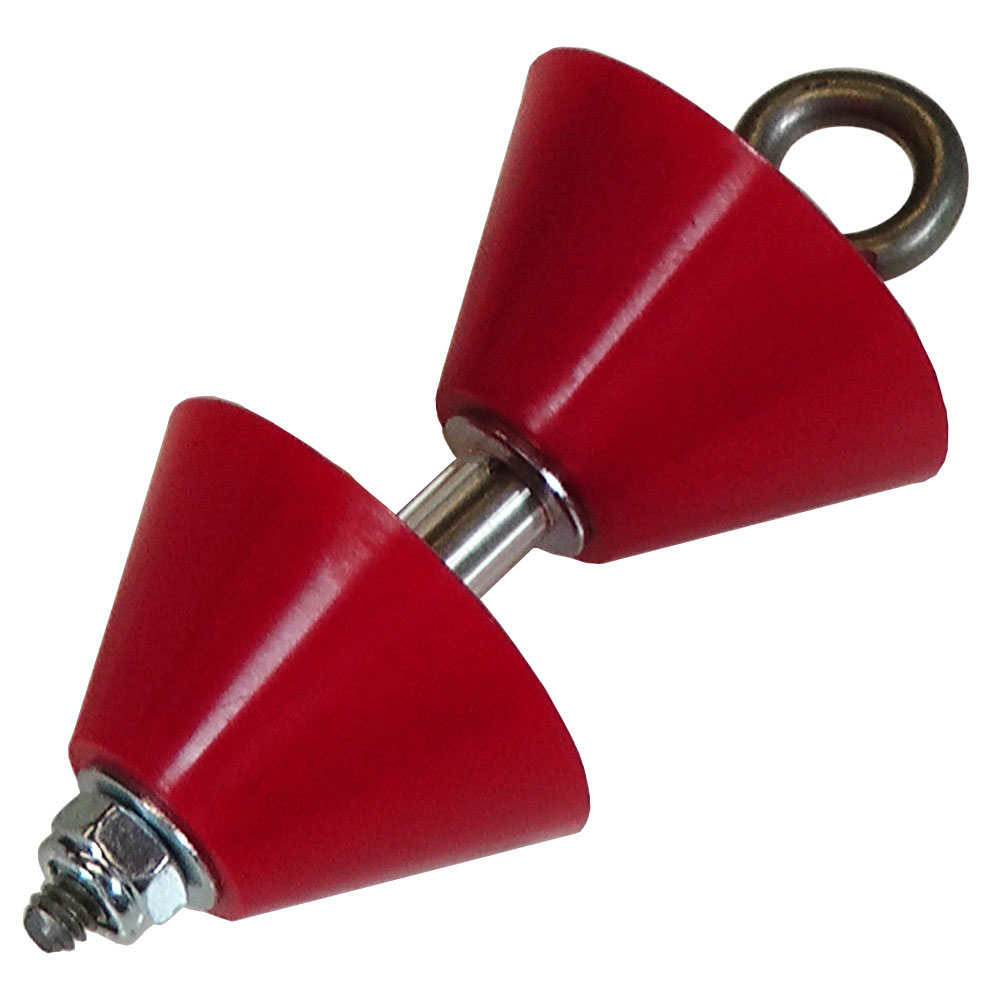

| 58300-150 | Black Line Dart for 1.5" Ducts | 3.5" | 0.07 lb |

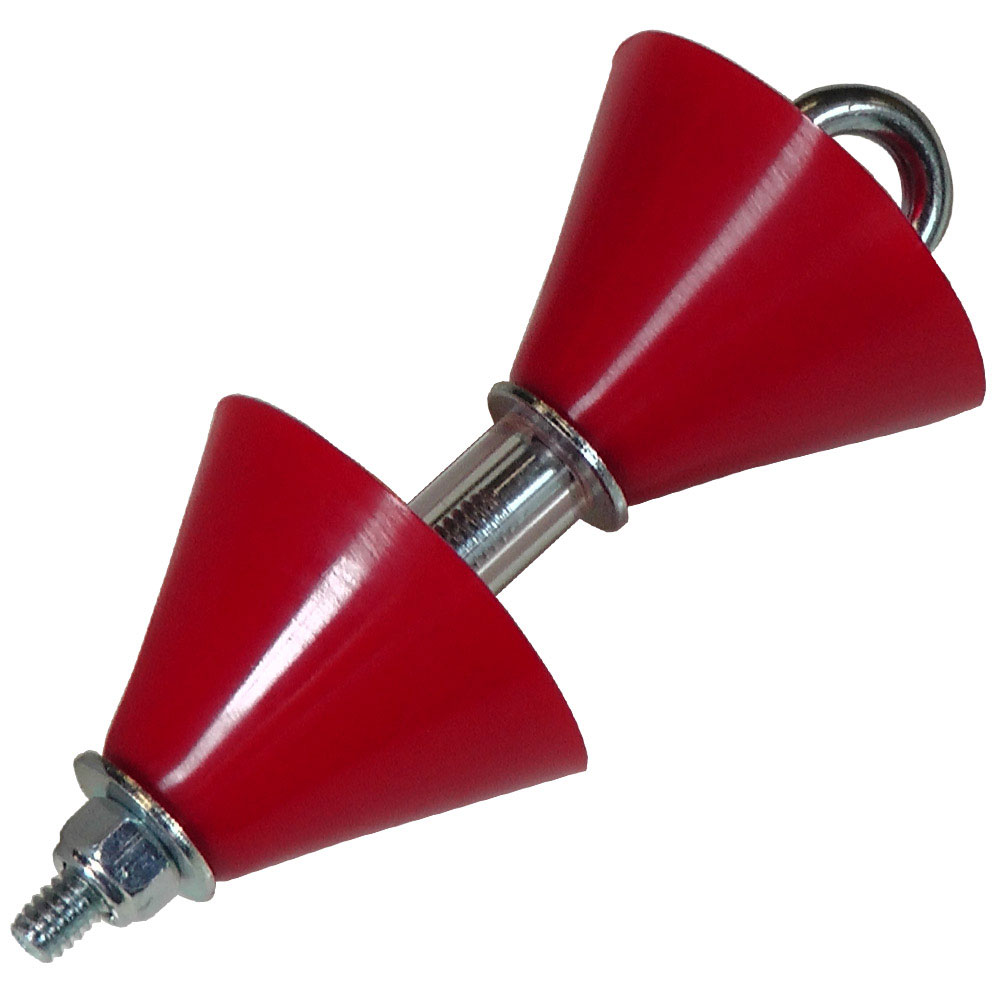

| 58300-200 | Green Line Dart for 2" Ducts | 5" | 0.17 lb |

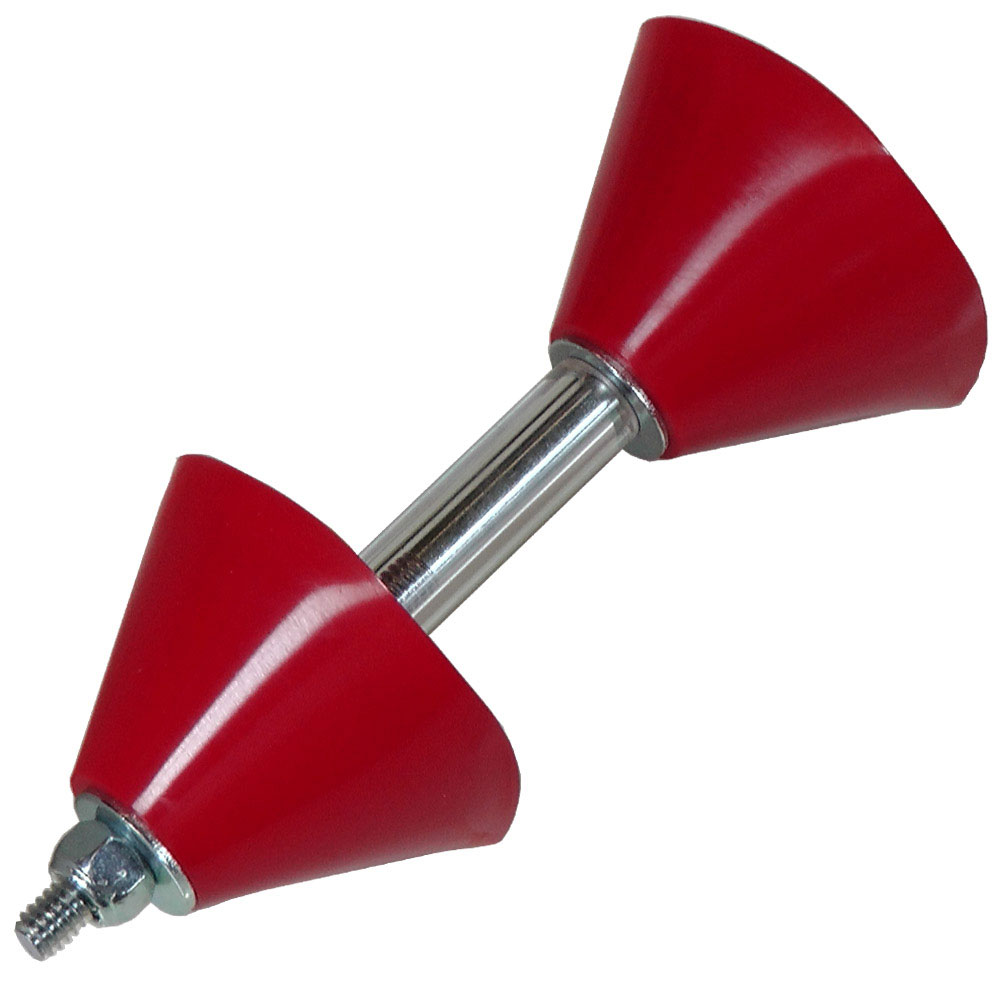

| 58300-250 | Red Line Dart for 2.5" Ducts | 5.25" | 0.18 lb |

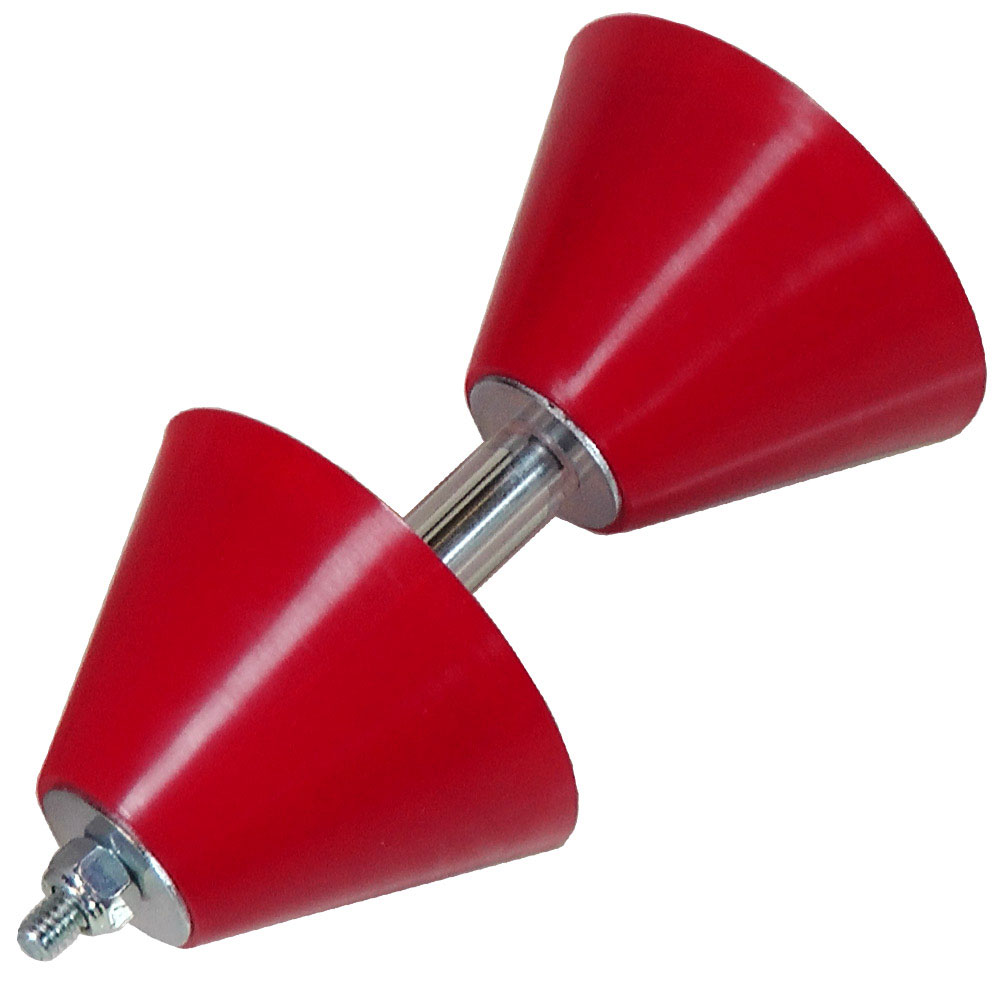

| 58300-300 | Yellow Line Dart for 3" Ducts | 5.625" | 0.27 lb |

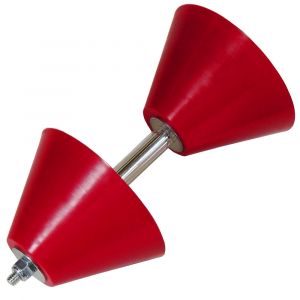

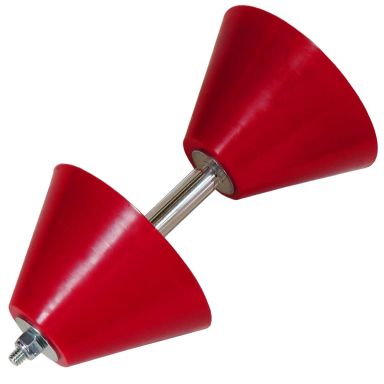

| 58300-400 | Blue Line Dart for 4" Ducts | 7.125" | 0.39 lb |

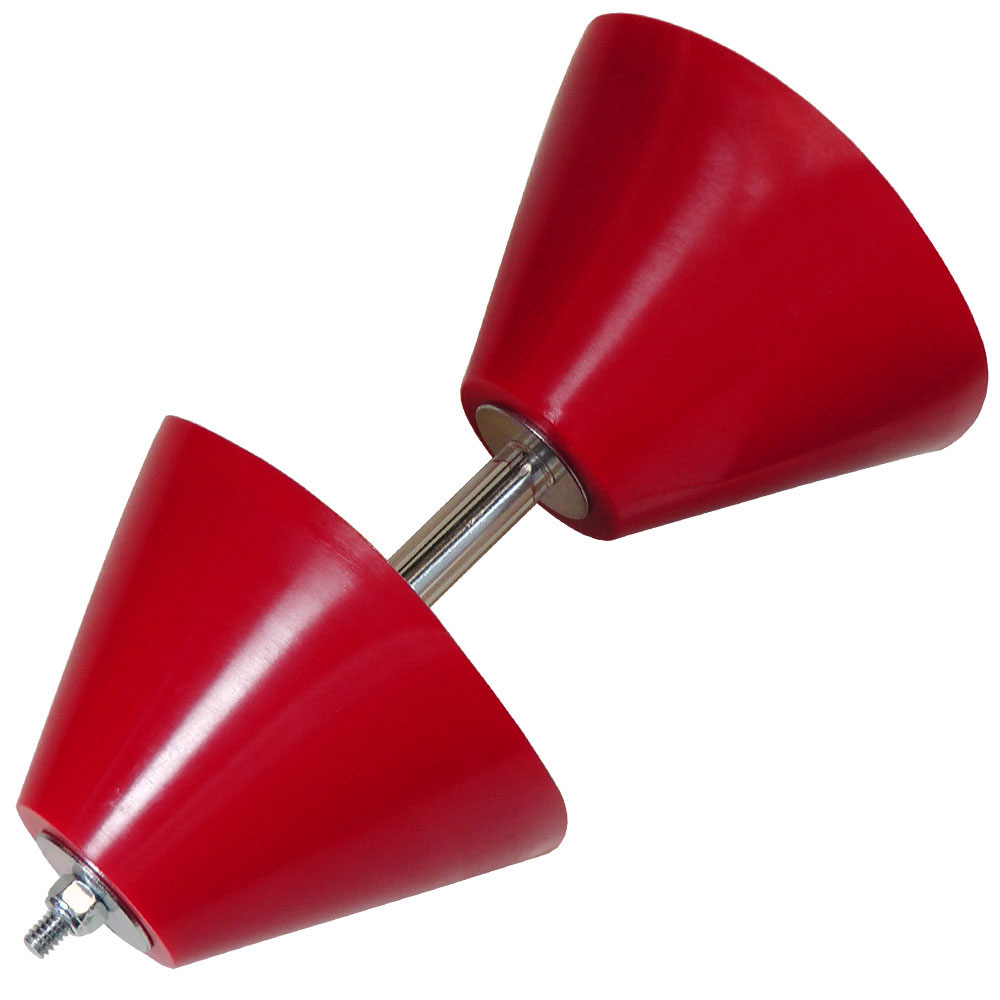

| 58300-500 | Orange Line Dart for 5" Ducts | 8.375" | 0.75 lb |

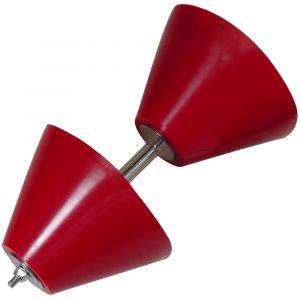

| 58300-600 | Black Line Dart for 6" Ducts | 9.25 " | 0.94 lb |

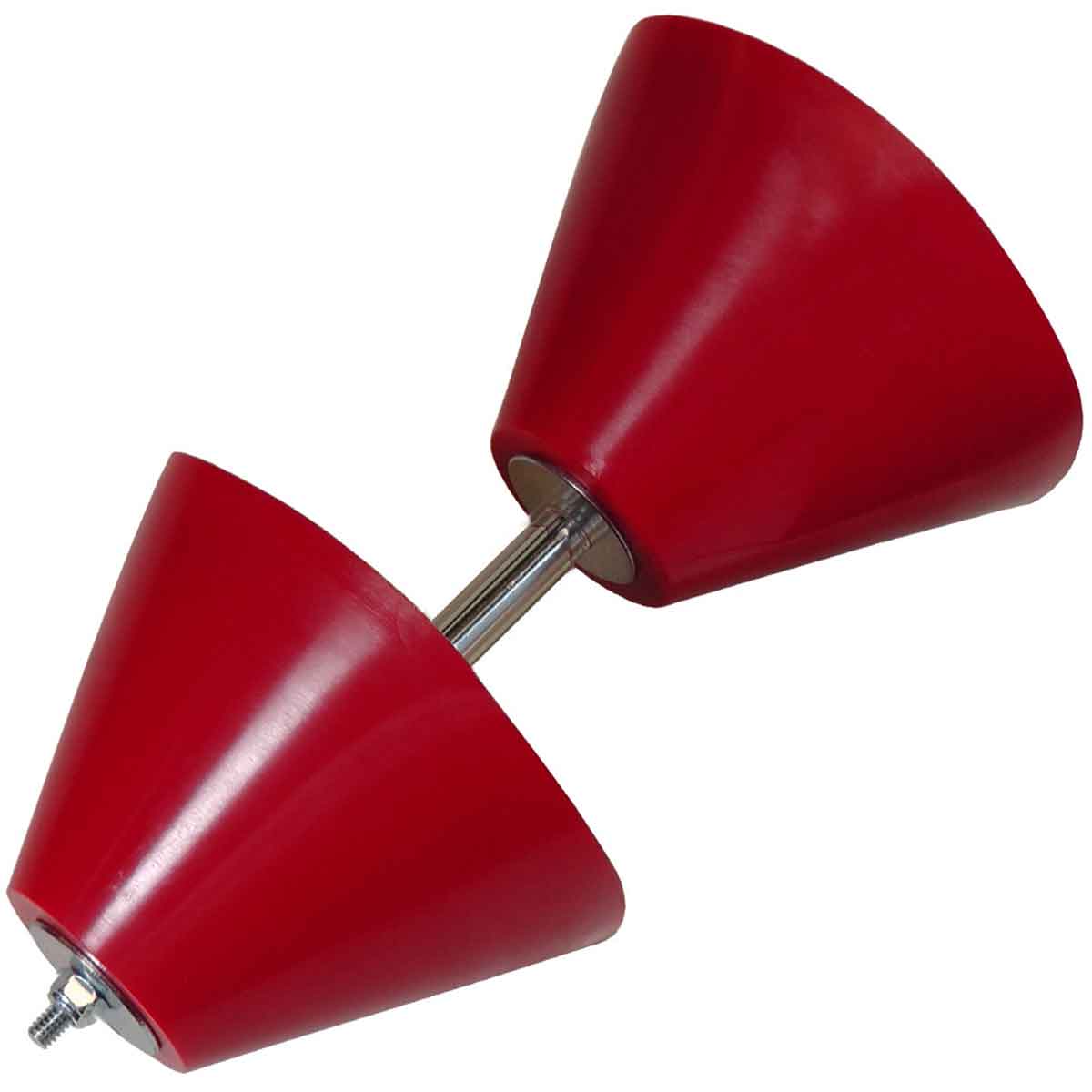

| 58300-800 | Red Line Dart for 8" Ducts | 10.96875" | 1076 lb |

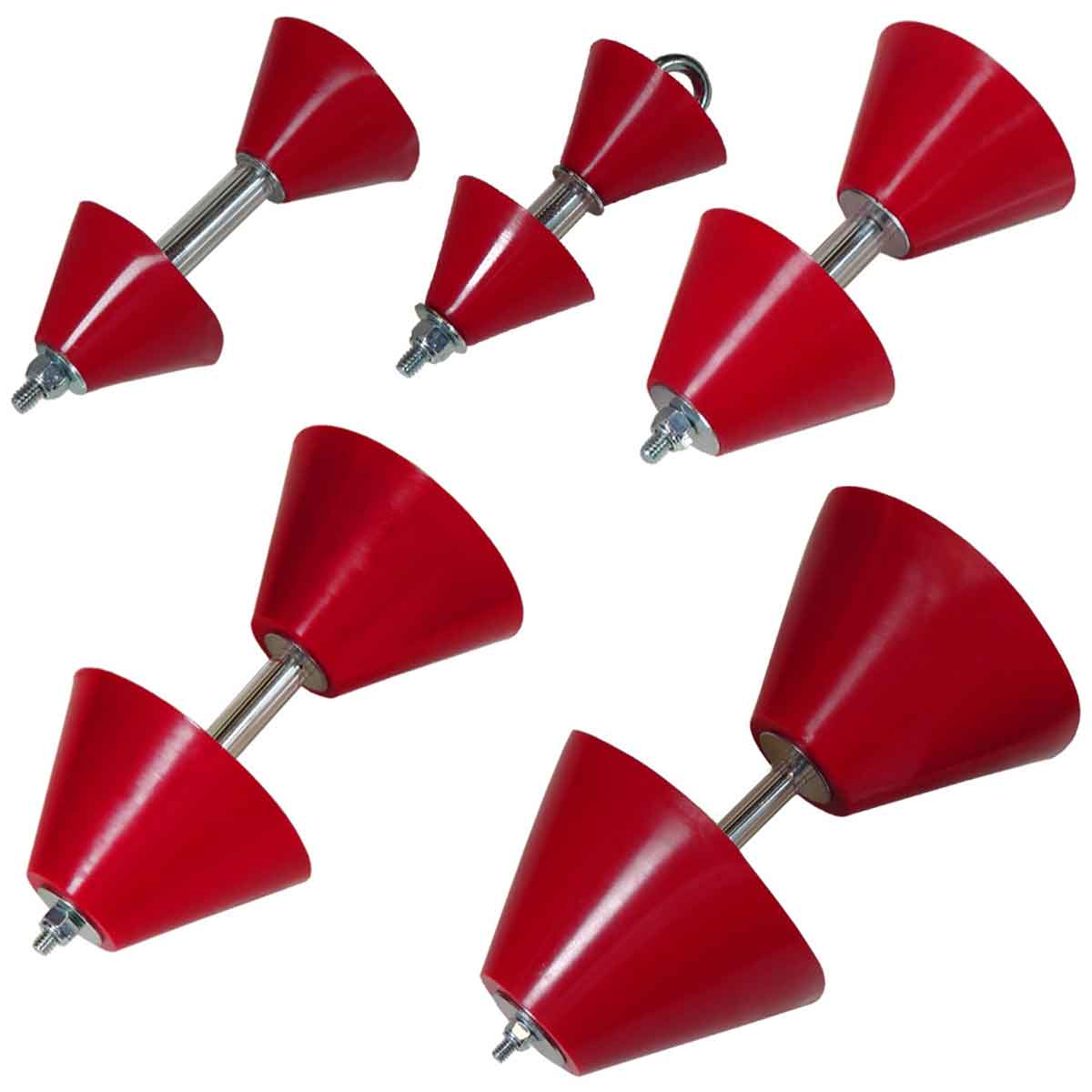

| 58300-KTI | Line Dart Kit for 2", 2.5", 3", 4" & 6" Ducts | 6.00 lb | |
| Part # | Description / Nominal Duct Size | Weight |

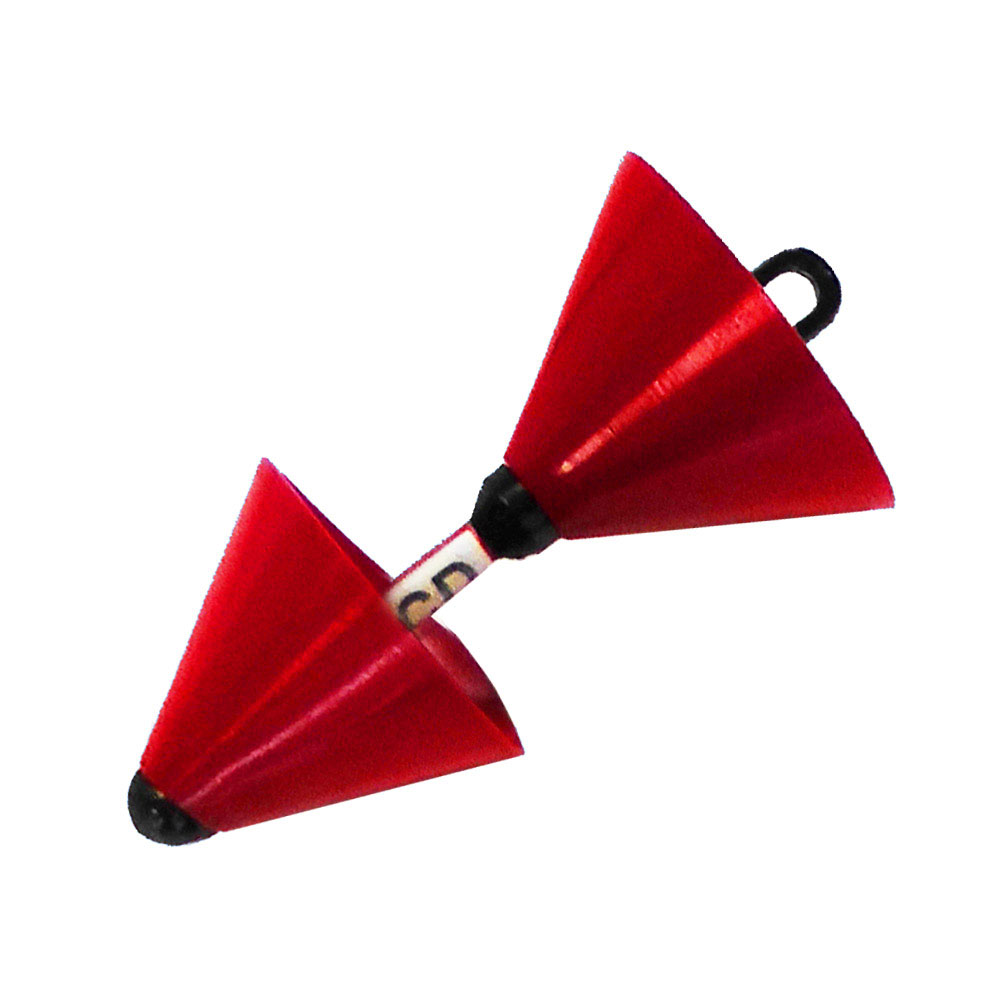

| 58320-200 | Ultra Light Bird for 2" Ducts | 0.04lb |

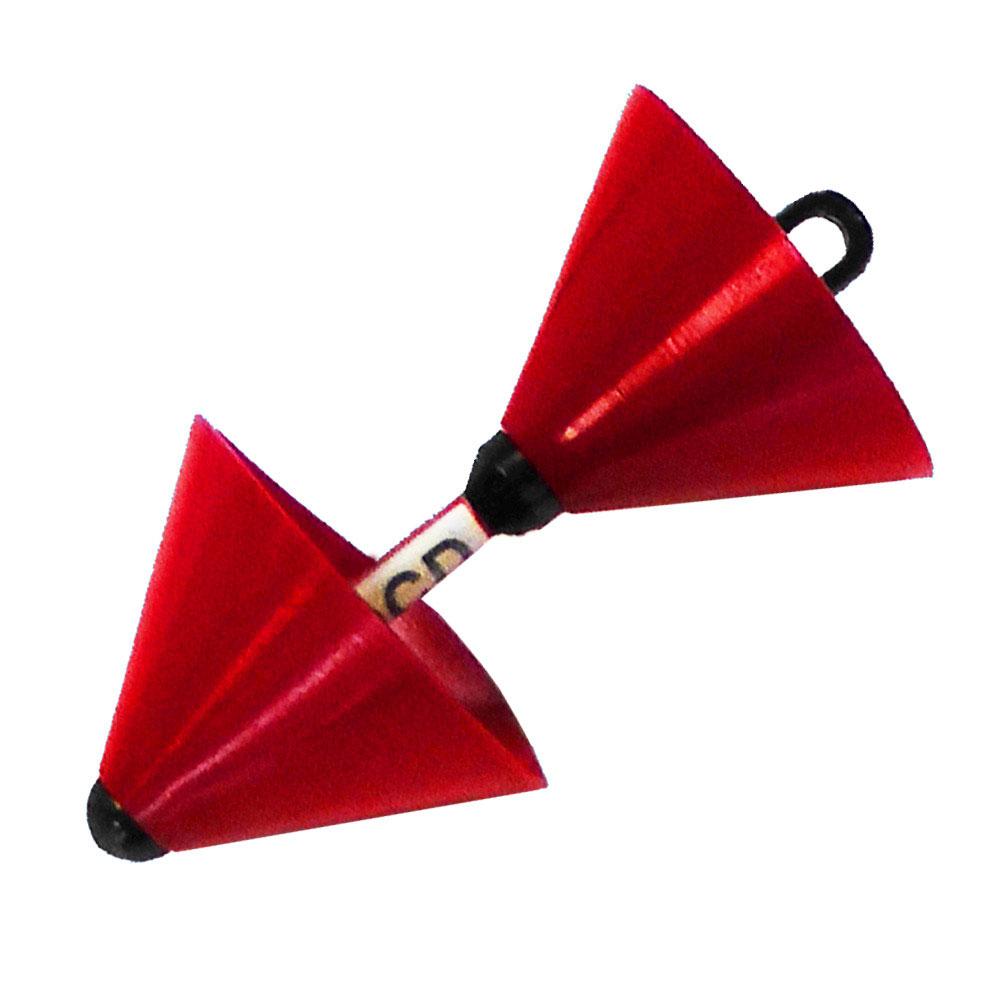

| 58320-250 | Ultra Light Bird for 2.5" Ducts | 0.06 lb |

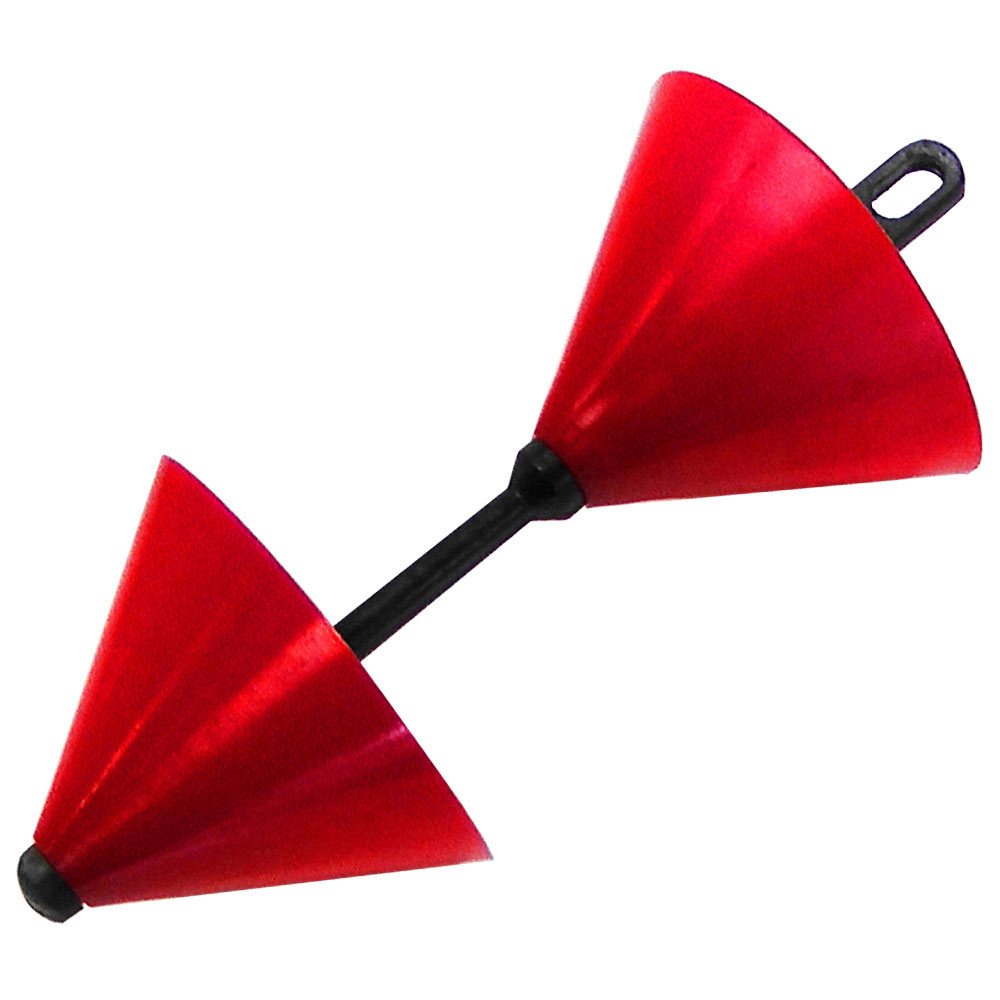

| 58320-300 | Ultra Light Bird for 3" Ducts | 0.08 lb |

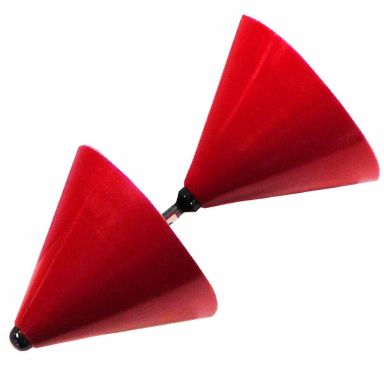

| 58320-350 | Ultra Light Bird for 3.5" Ducts | 0.11 lb |

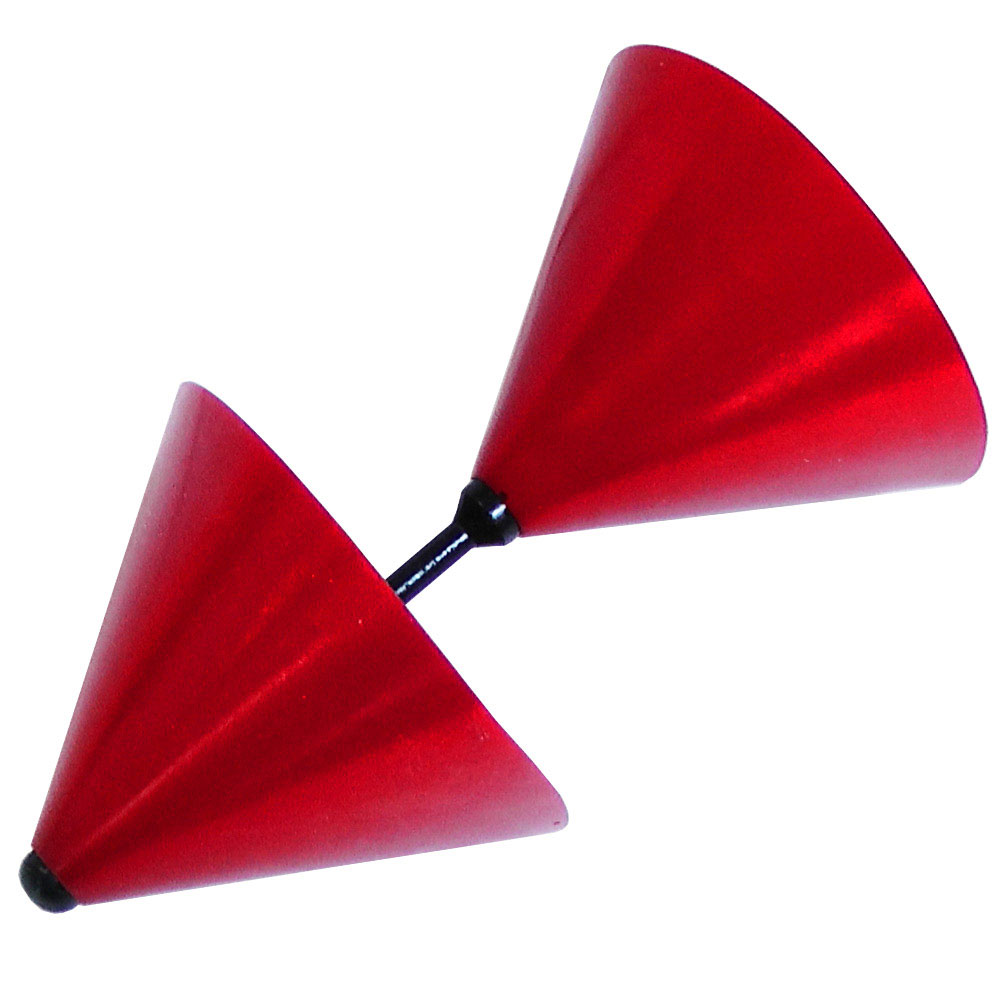

| 58320-400 | Ultra Light Bird for 4" Ducts | 0.14 lb |

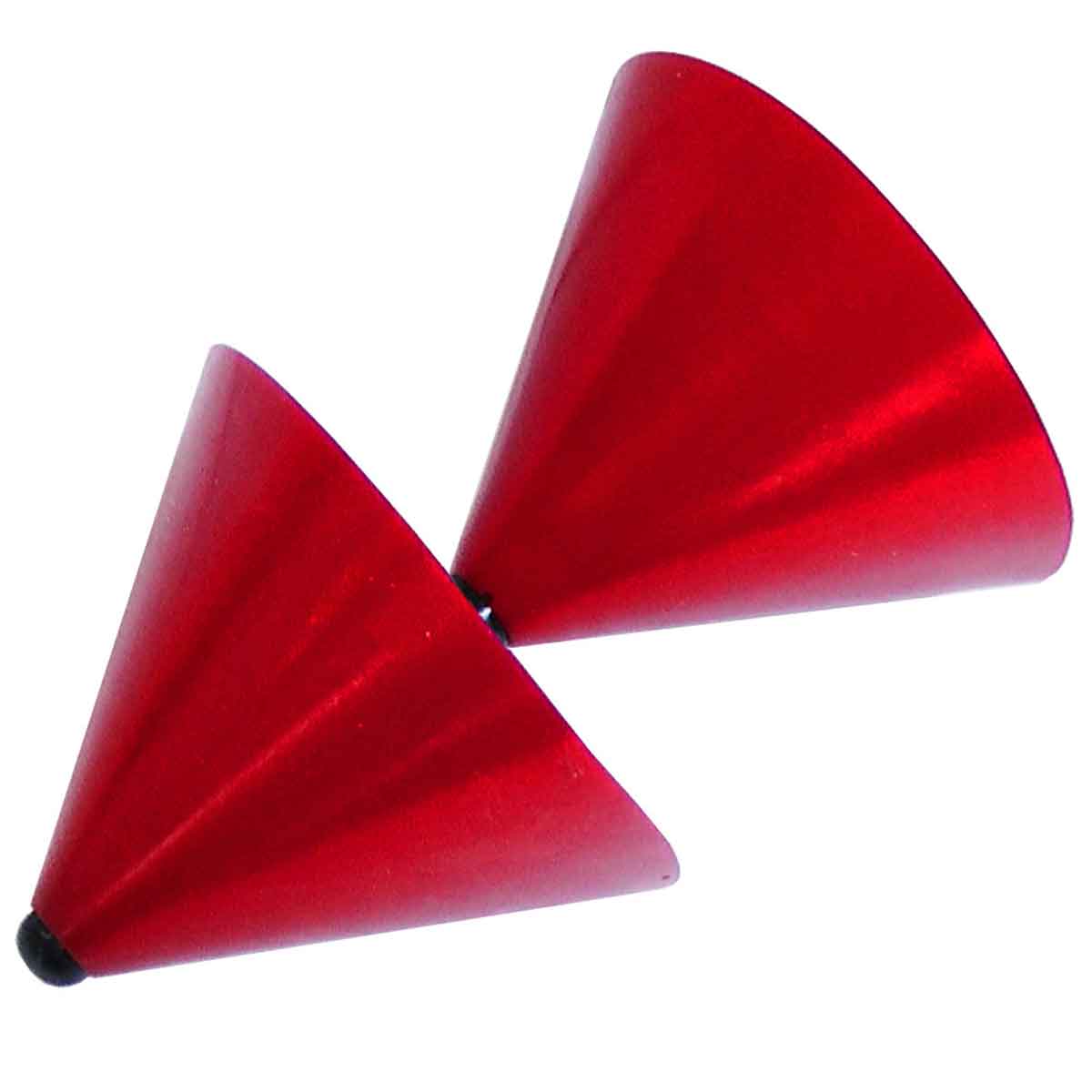

| 58320-500 | Ultra Light Bird for 5" Ducts | 0.19 lb |

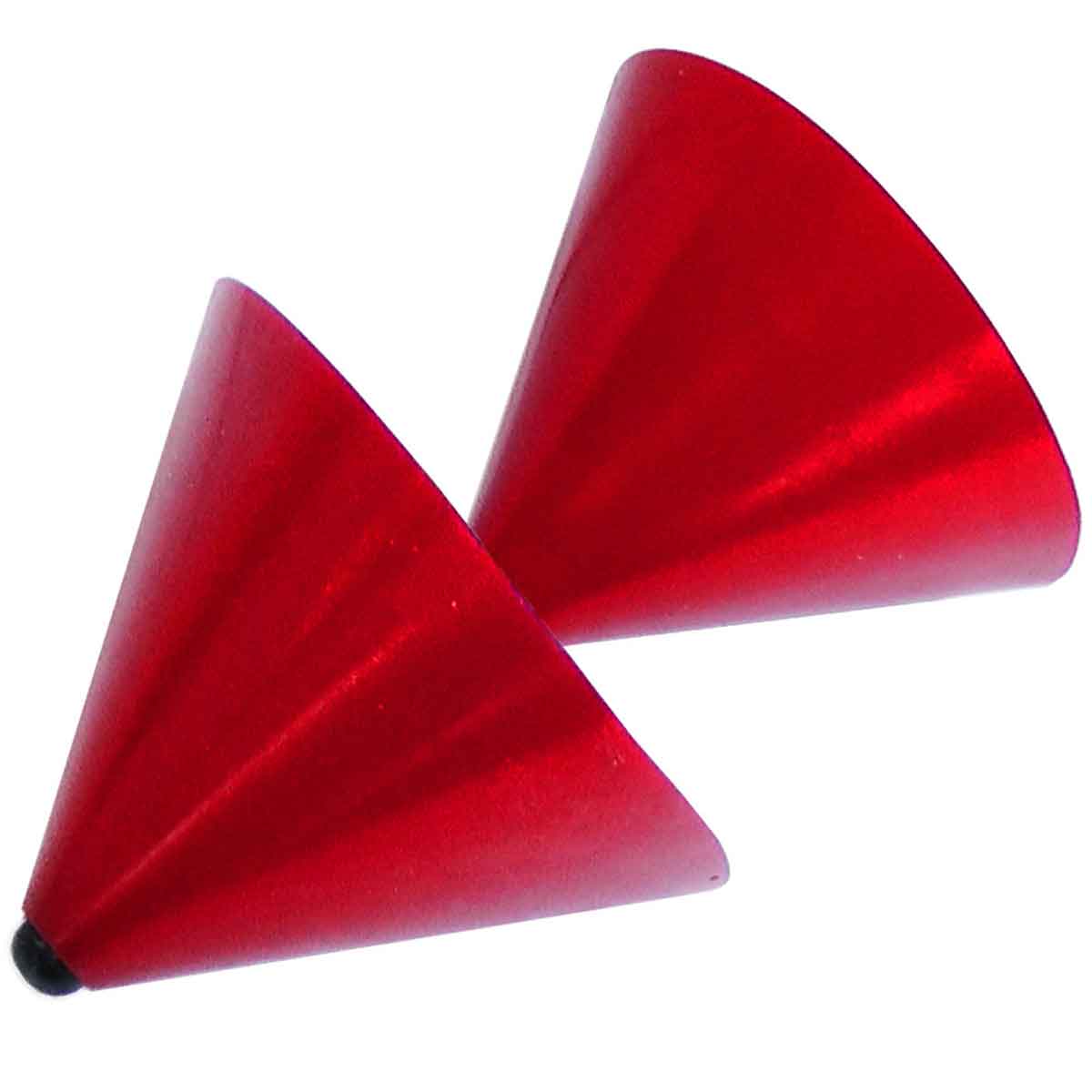

| 58320-600 | Ultra Light Bird for 6" Ducts | 0.34b |

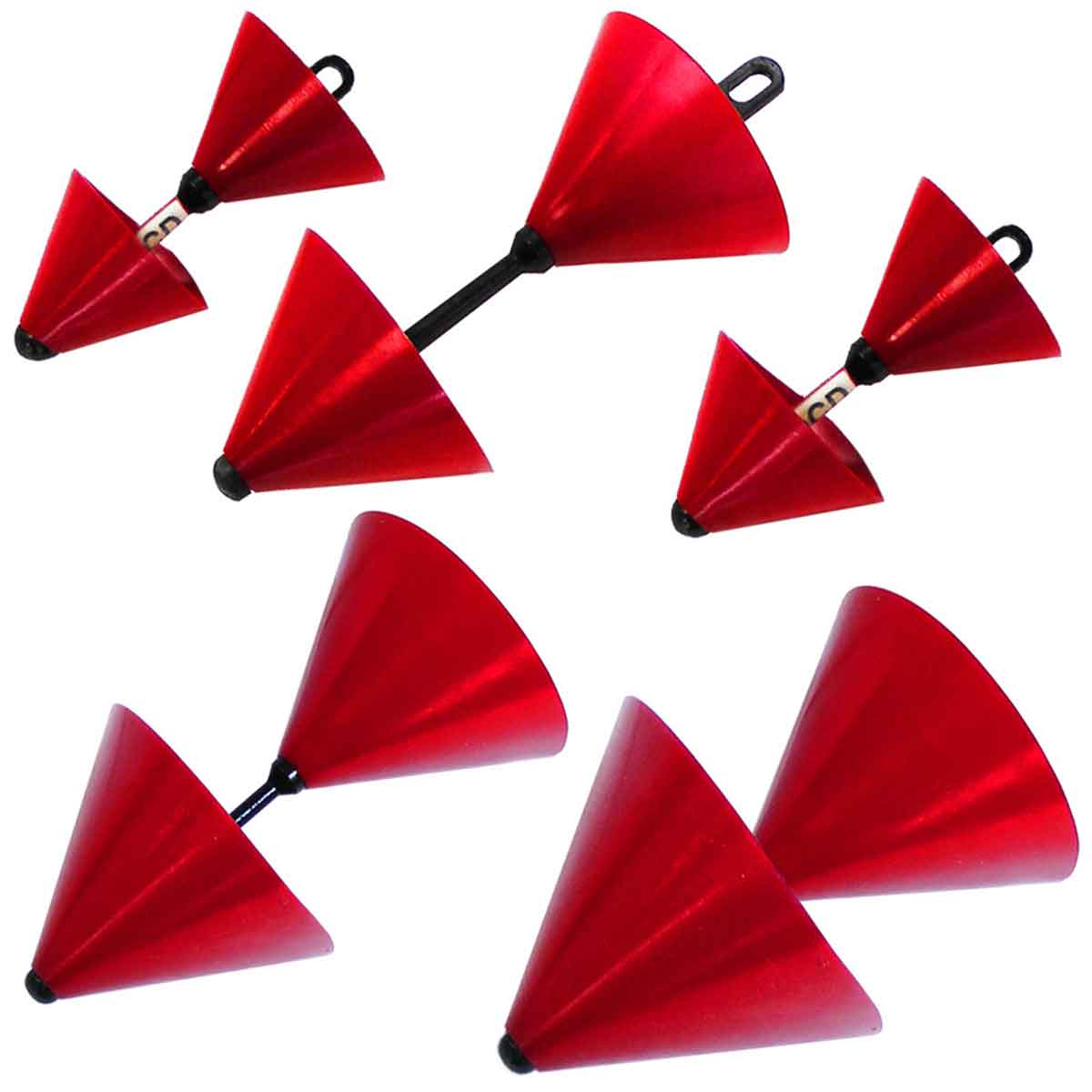

| 58320-KTI | Ultra Light Bird for 2", 2.5", 3", 4" & 6" Ducts | 1.02 lb |
