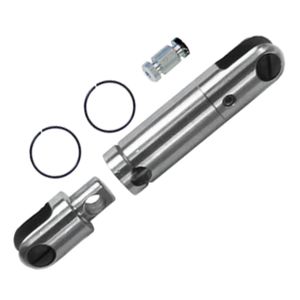

Breakaway Swivels

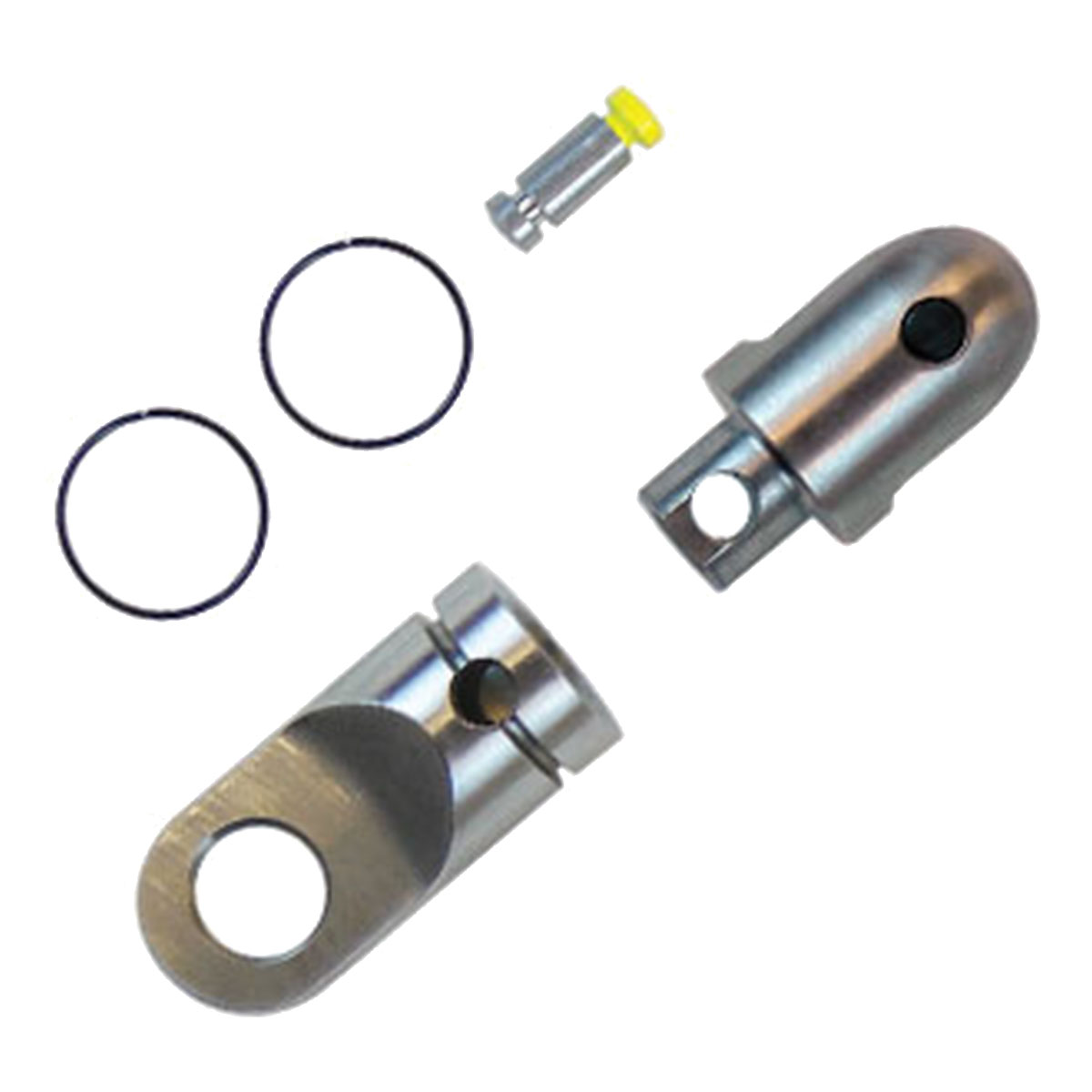

This product is similar to the Breakaway Connector (00530 series) as it protects the utility being installed from overload with the addition of a built-in swivel. The breakaway pins may be changed to allow the same breakaway pin connector or to be used with a variety of different breakaway pin strengths. Changing a pin takes just seconds. Breakaway Pin Kits are sold separately in packs of 10.

PRODUCT

PRICE

Breakaway Swivel 5/8" Diameter (00550-005)

Quote Only

Breakaway Swivel 7/8" Diameter (00550-010)

Quote Only

Breakaway Swivel 1-1/4" Diameter (00550-020)

Quote Only

Breakaway Pin Kit 125 lb, 10/kit (00555-00125)

Quote Only

ACCESSORIES

Breakaway Pin Kit 125 lb, 10/kit (00555-00125)

Quote Only

Breakaway Pin Kit 150 lb, 10/kit (00555-0015)

Quote Only

Breakaway Pin Kit 200 lb, 10/kit (00555-002)

Quote Only

Breakaway Pin Kit 340 lb, 10/kit (00555-0034)

Quote Only

Breakaway Pin Kit 400 lb, 10/kit (00555-004)

Quote Only

Breakaway Pin Kit 450 lb, 10/kit (00555-0045)

Quote Only

Breakaway Pin Kit 600 lb, 10/kit (00555-006)

Quote Only

Breakaway Pin Kit 675 lb, 10/kit (00555-007)

Quote Only

Breakaway Pin Kit 1370 lb, 5/kit (00555-013)

Quote Only

Breakaway Pin Kit 1800 lb, 5/kit (00555-018)

Quote Only

Breakaway Pin Kit 2000 lb, 5/kit (00555-020)

Quote Only

Breakaway Pin Kit 2700 lb, 5/kit (00555-027)

Quote Only

Breakaway Pin Kit 3600 lb, 5/kit (00555-036)

Quote Only

Breakaway Pin Kit 4000 lb, 5/kit (00555-040)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

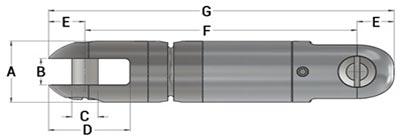

Part #	A	B	C	D	E	F	G	Use BreakawayPin Kits in	Weight
00550-005	5/8"	9/32"	3/16"	11/16"	1/4"	2-3/4"	3-1/4"	Group A	0.17 lb
00550-005	7/8"	3/8"	5/16"	31/32"	7/16"	3-3/16"	4-3/16"	Group B	0.42 lb
00550-020	1-1/4"	17/32"	13/32"	1-9/32"	17/32"	4-1/2"	5-9/16"	Group C	1.20 lb

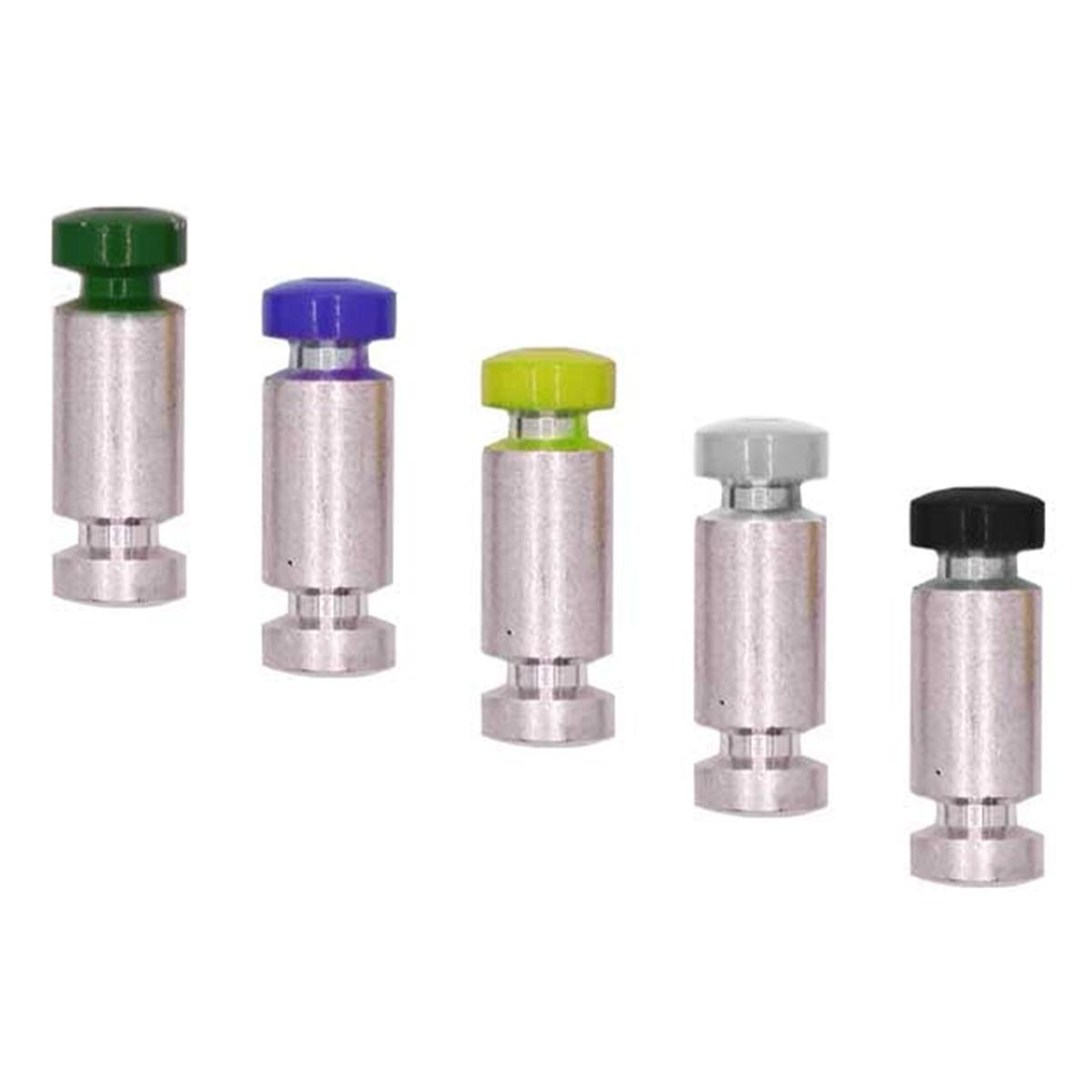

Part #	Quantity	Breaking Point (+/- 10%)	Color Code	Group
00555-00125*	10 pins/kit	125 lb	Green	A
00555-0015*	10 pins/kit	150 lb	Black	A
00555-002	10 pins/kit	200 lb	White	A
00555-003	10 pins/kit	300 lb	Purple	A
00555-0034	10 pins/kit	340 lb	Red	A
00555-004	10 pins/kit	400 lb	Yellow	A
00555-0045	10 pins/kit	450 lb	Blue	A
00555-006	10 pins/kit	600 lb	Orange	A
00555-007	10 pins/kit	675 lb	Black	A
00535-002	10 pins/kit	200 lb	White	B
00535-004	10 pins/kit	400 lb	Yellow	B
00535-005	10 pins/kit	500 lb	Green	B
00535-006	10 pins/kit	600 lb	Orange	B
00535-006S	10 pins/kit	600 lb	Blue	B
00535-008	10 pins/kit	800 lb	Gray	B
00535-008S	10 pins/kit	800 lb	Black	B
00535-010	10 pins/kit	1,000 lb	Red	B
00555-013	5 pins/kit	1,370 lb	White	C
00555-018	5 pins/kit	1,800 lb	Green	C
00555-020	5 pins/kit	2,000 lb	Blue	C
00555-027	5 pins/kit	2,700 lb	Black	C
00555-036	5 pins/kit	3,600 lb	Yellow	C
00555-040	5 pins/kit	4,000 lb	Red	C
