Key Features

2-pole induction continuous rated motor with squirrel cage rotor. Stator insulation class "F" (155ºC), rated IP68.
The rotor shaft is carried in two single row, deep groove ball bearings. The bearings are enclosed with high temperature grease sealed for life.
Waterproof/oil proof, rubber-insulated, neoprene-sheathed copper conductor flexible cable, 20ft. (6m) length standard (M0.5/M1) and 33 feet on M2. Type SJTW in North America.
Double Silicon Carbide/Silicon Carbide and Carbon/Ceramic Mechanical seals with External Oil Seal.
304 SS Outer Casing
304 SS Stator Casing
Cast Iron Diffuser
Shaft: Heat Treated 410 Stainless Steel
Hardware: 304 Stainless Steel
Impeller: Cast Iron
pH Range 5-8

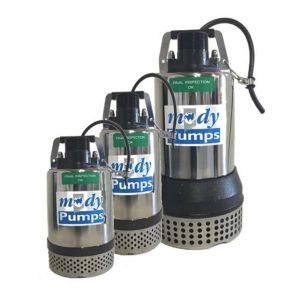

Mody M Series Submersible Water Pumps

These economical, stainless steel cased submersible pumps are available in 1/2HP, 1HP & 2HP versions. The M Series pumps feature 2-pole induction continuous rated motors and hardened cast iron impellers for extended life.
The pressure compensated sealing device, double mechanical seals immersed in an oil bath, ensures a minimal pressure differential across the seal faces. The M Series pumps feature 304 stainless steel strainers with 1/4" round holes to filter out abrasive particles normally found in raw water.
Each pump comes equipped with a carrying handle, 20ft. power cord and 2" NPT male discharge.

60Hz	M0.5	M1	M2
Discharge Connection- (inches)	2″	2″	2″
Rated Power – (HP/kW)	0.5/0.4	1/0.75	2/0.5
Speed – (rpm)	3400	3400	3400
Rated Current @ 115v (1 Ph.)	5A	10A	20A
Solids Passage [mm, inches]	6, 1/4″	6, 1/4″	6, 1/4″
Height – (mm, inches)	340, 13.38″	360, 14.17″	438, 17.25″
Weight – (kg lbs)	28/12.5	31/14	52/23.5
