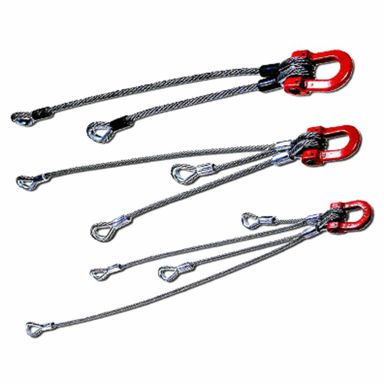

Wire Rope Bridle Slings

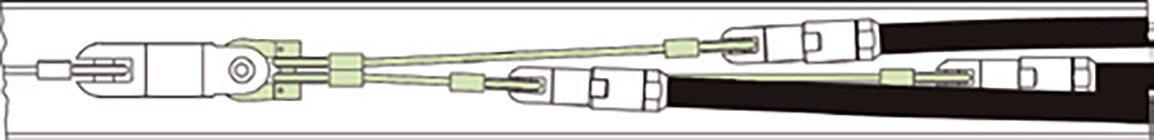

The Wire Rope Bridle Sling allows multiple pulls at one time by attaching two, three, or four cables or ducts to the puller. The various "legs" are staggered in length so the individual connections are not interfering with each other. The lead coupler can be easily dismantled to change out a leg or to add another leg.

Manufactured from aircraft quality for durability, each leg is marked with load capacity and they have a three times safety factor on that rating. The safety factor is based on equal pull on all cables (horizontal pull only).

Couplers and wire rope sling legs may be ordered separately.

DUB-Lite (00503 series) or Line Swivels (00505 series) are recommended to permit free rotation of the bridle at the legs and coupler. The recommended swivels are sized to suit the load and connection: smaller swivels over the leg loop, a larger swivel to fit the shackle.

*See chart below under "Technical Details" for more specs.

PRODUCT

PRICE

Wire Rope Bridle Sling 1/8" 2 Way Staggered Swl 1,300 lb (23125-020)

Quote Only

Wire Rope Bridle Sling 1/8" 3 Way Staggered Swl 1,950 lb (23125-030)

Quote Only

Wire Rope Bridle Sling 1/8" 4 Way Staggered Swl 2,600 lb (23125-040)

Quote Only

Wire Rope Bridle Sling 1/4" 2 Way Staggered Swl 4,600 lb (23250-020)

Quote Only

Wire Rope Bridle Sling 1/4" 3 Way Staggered Swl 6,900 lb (23250-030)

Quote Only

Wire Rope Bridle Sling 1/4" 4 Way Staggered Swl 9,200 lb (23250-040)

Quote Only

Wire Rope Bridle Sling 3/8" 2 Way Staggered Swl 9,600 lb (23375-020)

Quote Only

Wire Rope Bridle Sling 3/8" 3 Way Staggered Swl 14,400 lb (23375-030)

Quote Only

Wire Rope Bridle Sling 3/8" 4 Way Staggered Swl 19,200 lb (23375-040)

Quote Only

Wire Rope Bridle Sling 1/2" 2 Way Staggered Swl 13,800 lb (23500-020)

Quote Only

Wire Rope Bridle Sling 1/2" 3 Way Staggered Swl 20,700 lb (23500-030)

Quote Only

Wire Rope Bridle Sling 1/2" 4 Way Staggered Swl 27,600 lb (23500-040)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Wire Diameter	# of Legs	3:1 Safe Working Load		Weight	Recommended DUB-Lit		Recommended Line Swivel
Part #	Wire Diameter	# of Legs	Leg Capacity	Sling Capacity	Weight	Over Shackle	Over Leg Loop	Over Shackle	Over Leg Loop
23125-020	1/8"	2	650 lb	1,300 lb	0.5 lb	00503-202 00503-204 00503-205	00503-202	00505-020 00505-025 00505-027	00505-005 00505-010 00505-015
23125-030	1/8"	3	650 lb	1,950 lb	0.6 lb
23125-040	1/8"	4	650 lb	2,600 lb	0.6 lb
23250-020	1/4"	2	2,300 lb	4,600 lb	1.2 lb	00503-204 00503-205 00503-208 00503-210	00503-202	00505-027 00505-030 00505-035	00505-010 00505-015 00505-020 00505-025
23250-030	1/4"	3	2,300 lb	6,900 lb	1.6 lb
23250-040	1/4"	4	2,300 lb	7,100 lb	2.0 lb
23375-020	3/8"	2	4,800 lb	9,600 lb	2.9 lb	00503-208* 00503-210* 00503-215	00503-204 00503-205 00503-208 00503-210	00505-035â€ 00505-040 00505-041 00505-045	00505-020 00505-025 00505-027 00505-030
23375-030	3/8"	2	4,800 lb	12,000 lb	3.7 lb
23375-040	3/8"	4	4,800 lb	18,000 lb	5.9 lb
23500-020	1/2"	2	6,900 lb	13,800 lb	6.7 lb	00503-215	00503-204** 00503-205 00503-208 00503-210	00505-040 00505-041 00505-045 00505-050	00505-030 00505-035
23500-030	1/2"	3	6,900 lb	20,700 lb	8.6 lb
23500-040	1/2"	4	6,900 lb	28,300 lb	12.7 lb
