TUF-Lugger Cable Puller

The TUF-Lugger Cable Puller is designed to handle most cable pulling requirements up to a 5,500 lbs. load. At the heart of this cable puller is a removable TUF-Lugger Lite Electric Winch which offers single speed simplicity, a smooth capstan reduces tension, and it can also be used in other applications.

The 42600 Series Tuf-Lugger features open sided duct guides for insertion or removal from the pull at any time, and a feed out sheave that allows the user to stand clear of the pull line. Unit comes mounted on 4 wheels for easy transport to the pulling location, no assembly is required... just roll it in and roll it out.

The outer beam of the TUF-Lugger is made up of 2" Schedule 40 aluminum pipe designed to allow access to overhead and underground ducting; extendable arm options available to customize your system. An optional load indicator with monitoring software can also be installed.

PRODUCT

PRICE

Tuf-lugger Cable Puller w/ Frame and Winch (42600-000)

Quote Only

ACCESSORIES

Voltage Coverter 220V to 110V, 3000 Watts (40000-001)

Quote Only

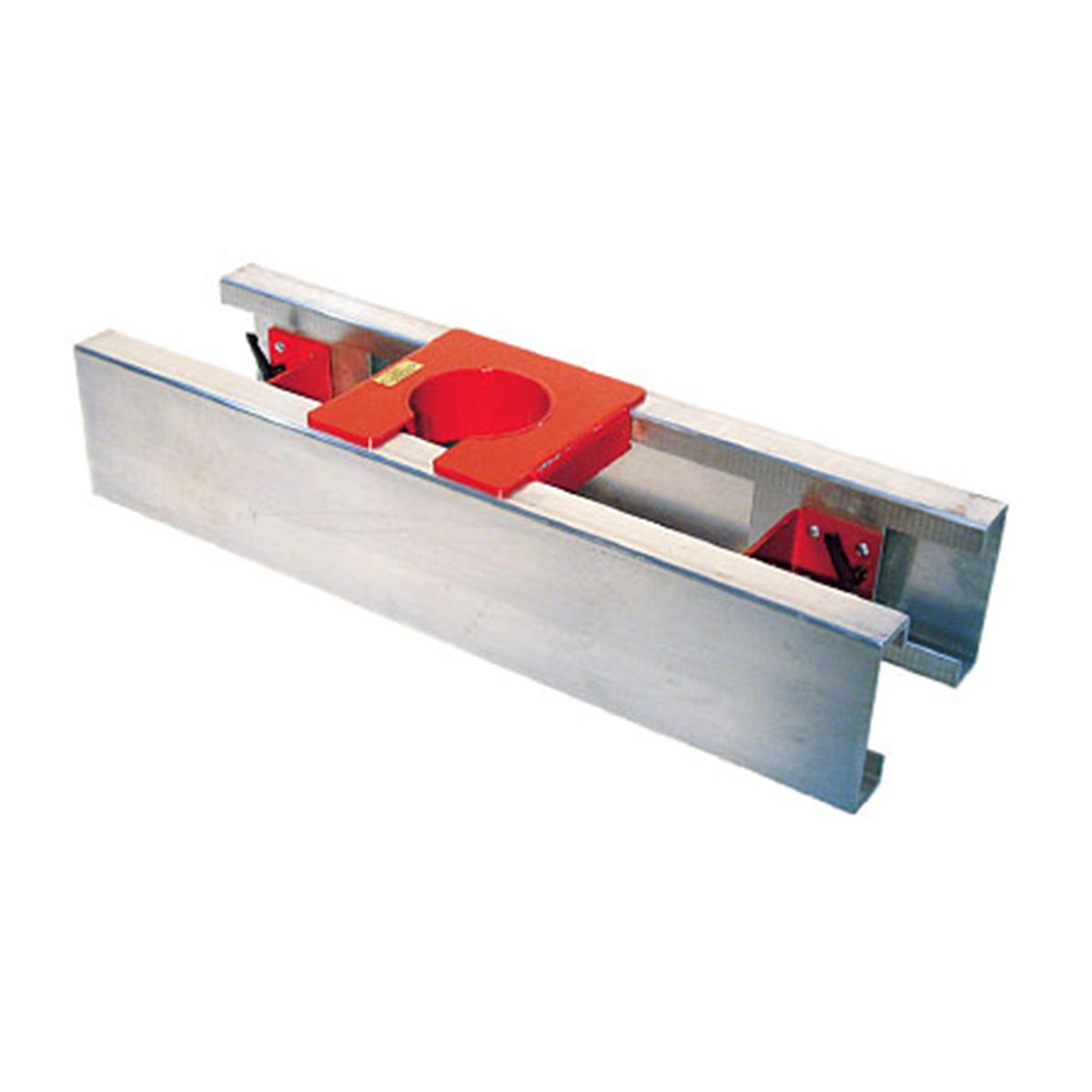

Manhole Adapter (40000-300)

Quote Only

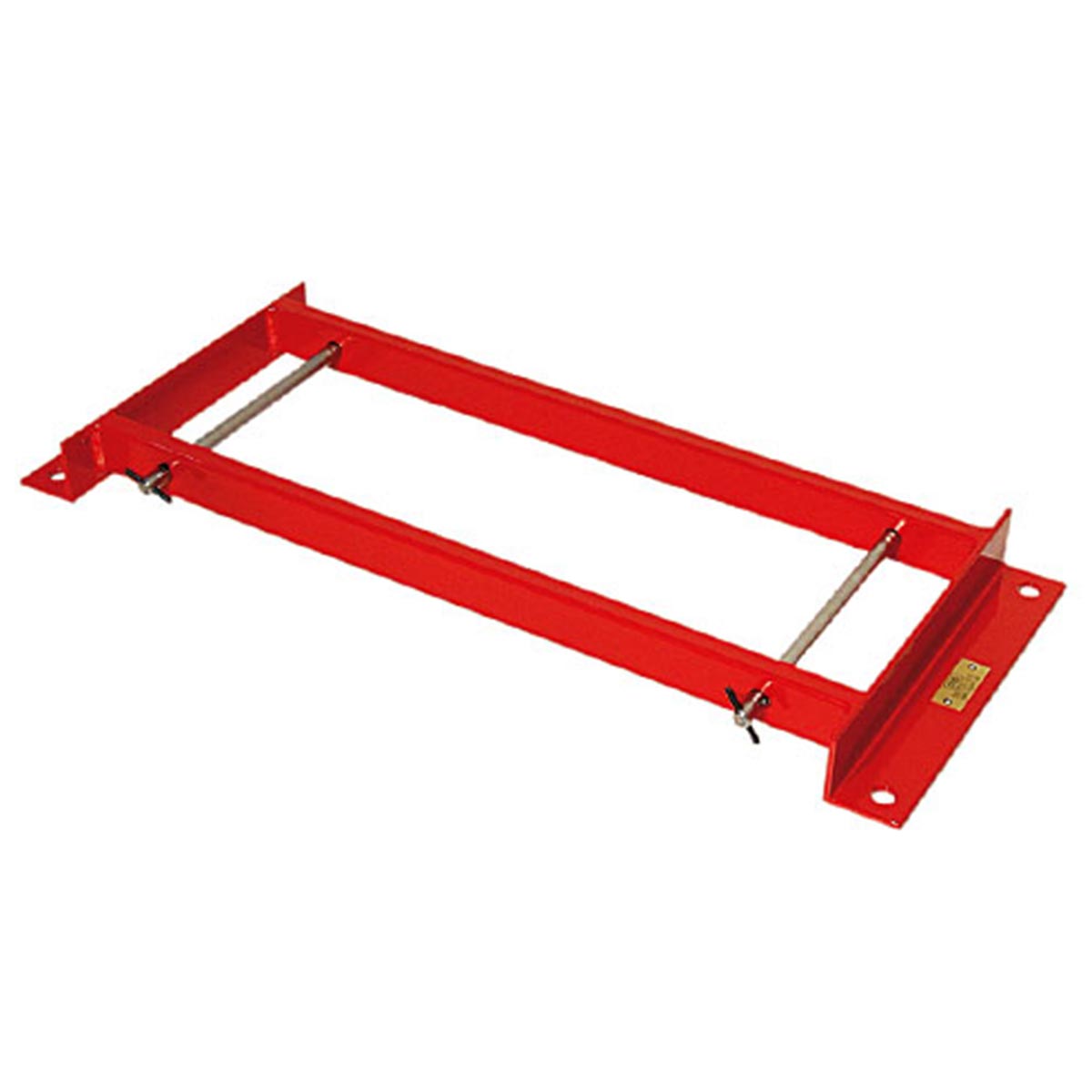

Floor Mount Frame (40000-400)

Quote Only

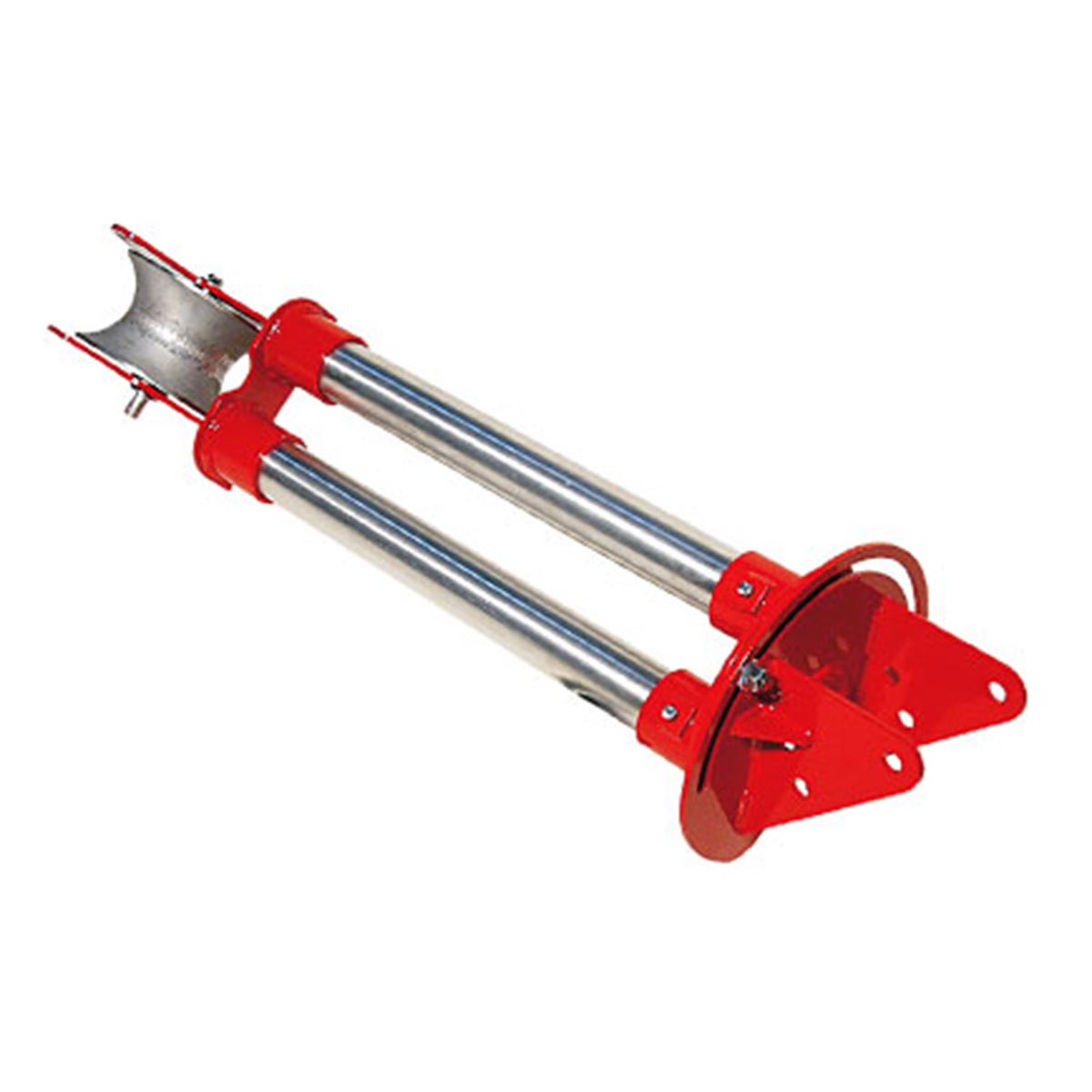

Universal Adapter (40000-500)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Description	Power Info	Max Pulling Force (Single Line)	Max Speed (Single Line)	Work Cycle	Max Height Reachd	Weight
42600-000	TUF-Lugger™ Cable Pulling Device	115V, 10 amp (Requirement)	5,500 lb	49.3' per minute	15 minutes per hour	6-1/2'	237 lbs
40000-001	Voltage Converter (220V to 110V)	3,000 watts (Limit)	-	-	-	-	27 lbs
