Duct Entry Guides

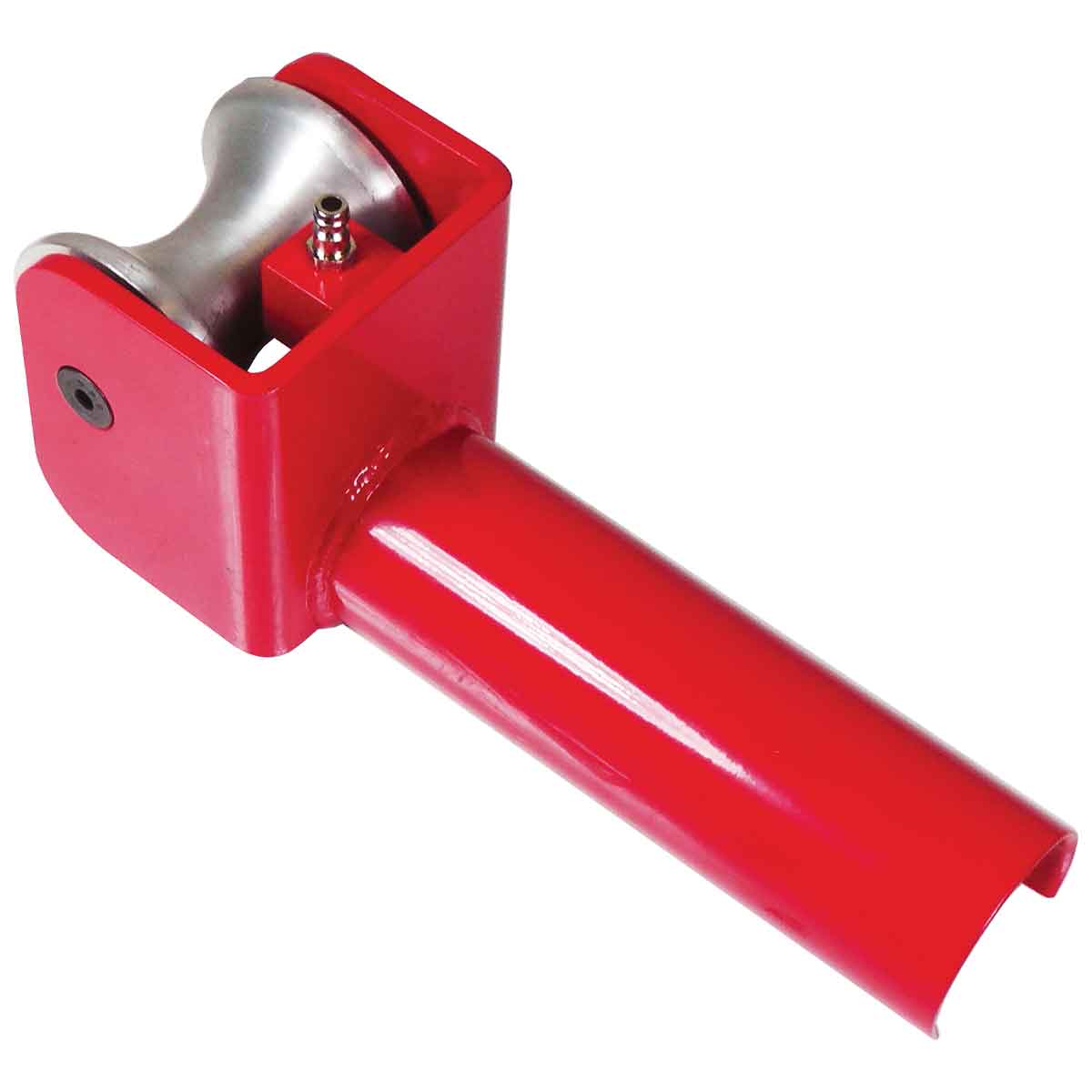

Second, because of the built-in spray nozzle for the Tube-Lube 326 application, there is one half of a quick-disconnect coupling attached to a spray nozzle that will direct the lubricant right onto the cable as it is fed into the ducting.

Part # | Spare Sheave | 3:1 Safe Working Load | Duct Diameter | A | Weight |

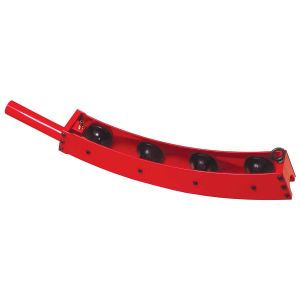

32500-125* | 32900-202P** | 3,000 lb | 1.25" | 7.5" | 7.4 lb |
32500-150* | 32900-202P** | 3,000 lb | 1.5" | 7.5" | 7.5 lb |

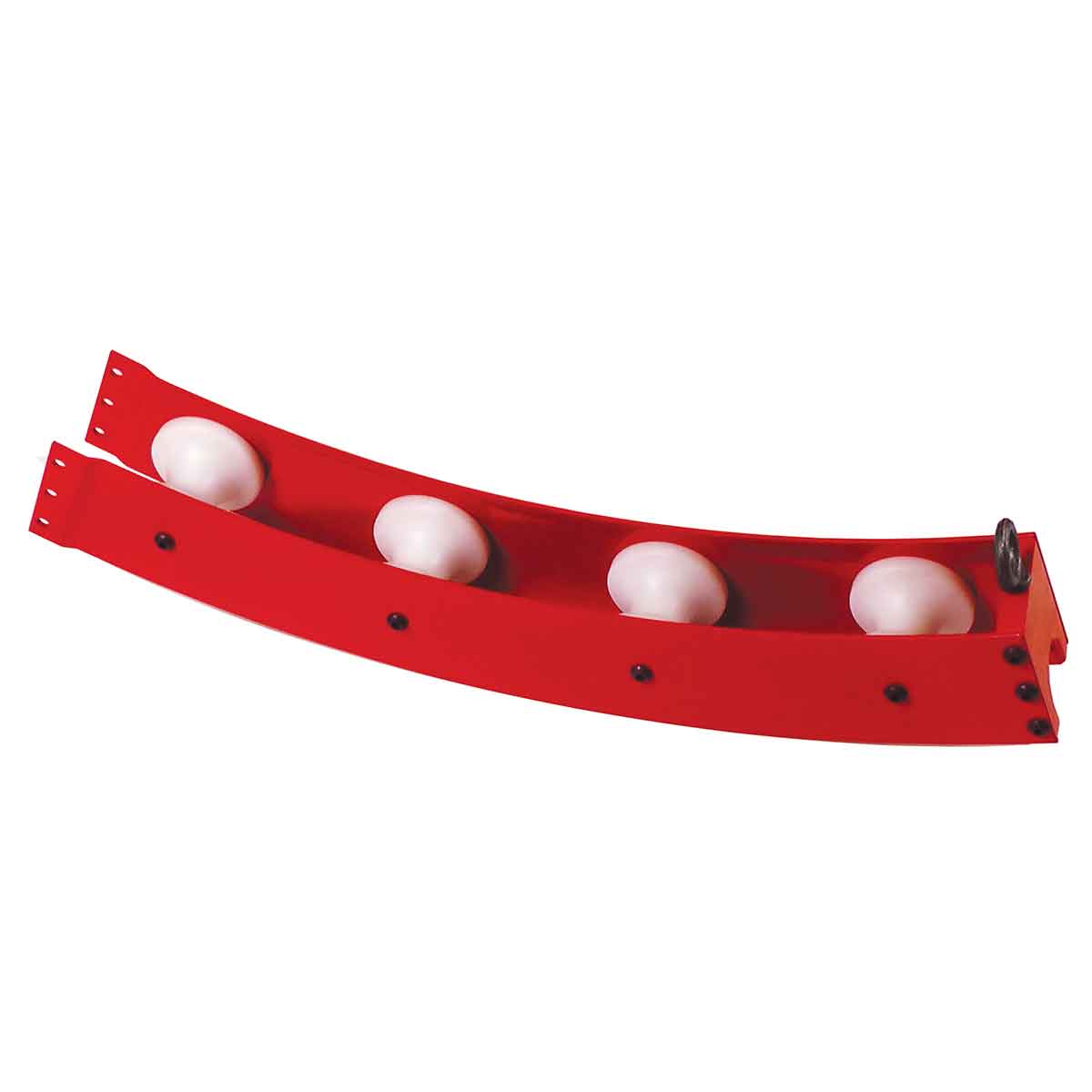

32501-125* | 32900-202P** | 3,000 lb | Extension Quadrant | - | 5.7 lb |
32500-200 | 32900-303 | 3,000 lb | 2" | 7.5" | 5.3 lb |
32500-250 | 32900-303 | 3,000 lb | 2.5" | 7.5" | 5.7 lb |
32500-300 | 32900-307 | 6,000 lb | 3" | 9.5" | 14.1 lb |
32500-400 | 32900-407 | 6,000 lb | 4" | 11.5" | 19.0 lb |
32500-480 | 32900-407 | 6,000 lb | 4" Schedule 80 | 11.5" | 17.0 lb |
32500-500 | 32900-507 | 6,000 lb | 5" | 13.5" | 24.0 lb |
32500-600 | 32900-611 | 6,000 lb | 6" | 15.5" | 44.0 lb |
