Heavy-Duty Breakaway Connectors
These versatile swivels support multiple pins with varying breaking points, allowing you to swap the breakaway pin on the fly to meet the needs of most cable pulling and lifting applications.

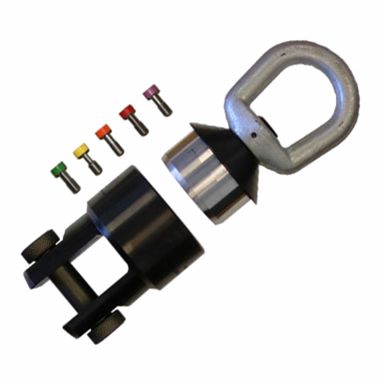

These products are designed to protect polyethylene ducting from overload during installation by directional drilling and are used between the pullback swivel and the duct puller. The connectors are a three part product, held together by a group of pins. The pins are designed to break in tension at a specific load. *Uses 00565 pins.

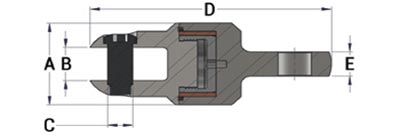

| Connector Part # | A | B | C | D | E | Weight | Replacement Clevis Pin Kit |
| 00560-010 | 2.5" | 1" | 0.6875" | 6.5" | 0.75" | 4 lb | 00035-HEX |
| 00560-010S | 2.5" | 1" | 0.6875" | 6.5" | 0.75" | 4 lb | 00035-HEXS |
| 00560-020 | 3.75" | 1.5" | 1" | 12" | 0.875" | 15 lb | 00508-P010 |
| 00560-020S | 3.75" | 1.5" | 1" | 12" | 0.875" | 15 lb | 00508-P010S |

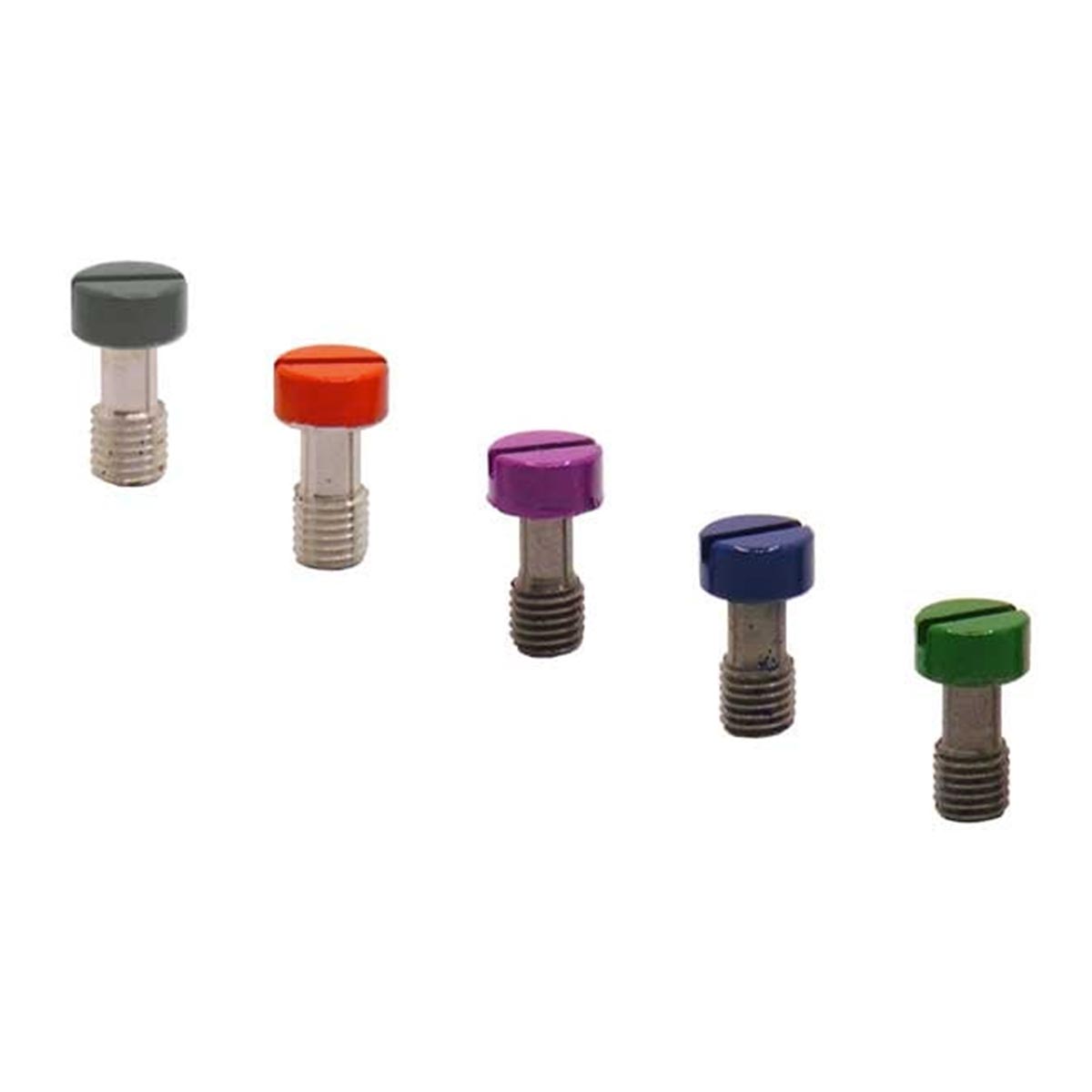

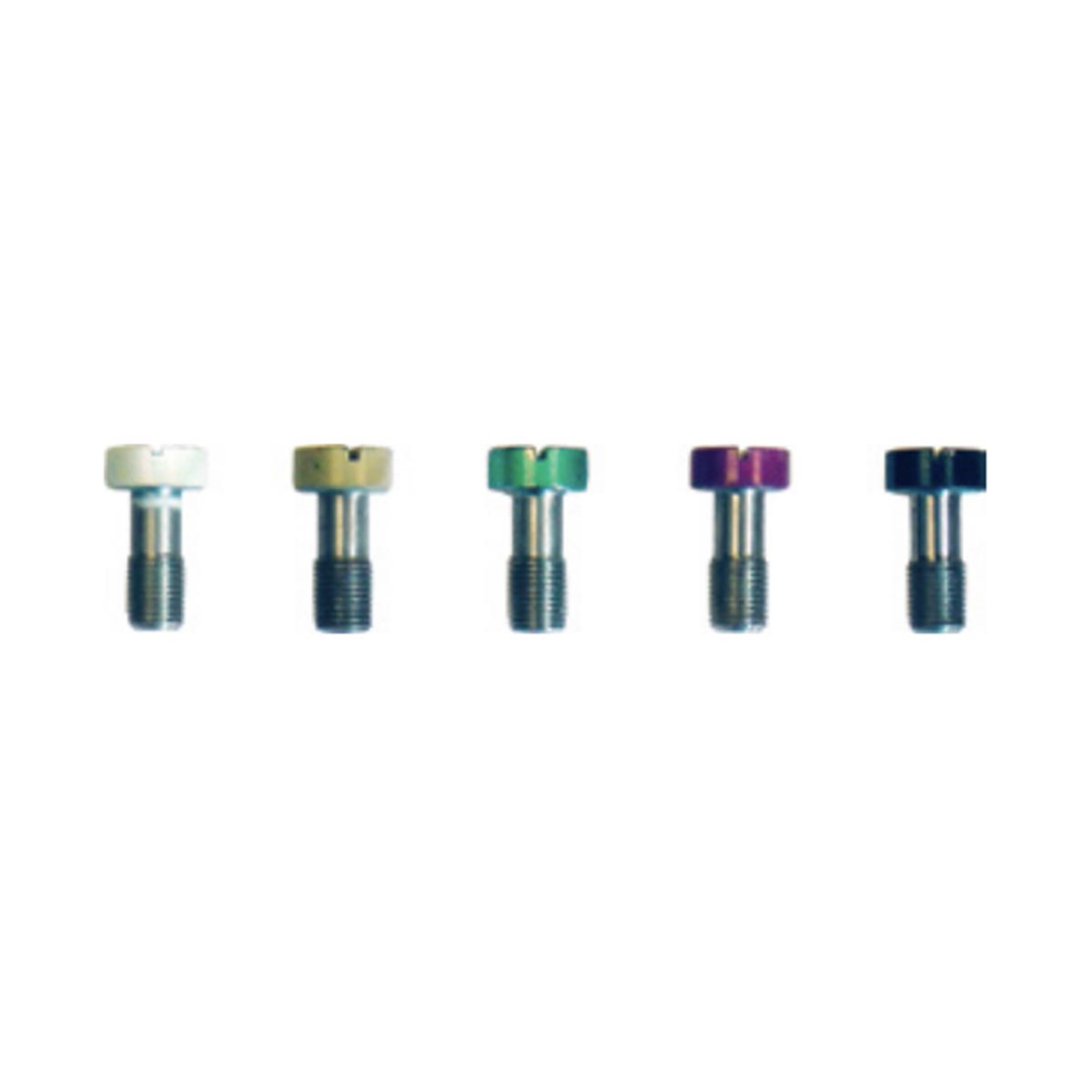

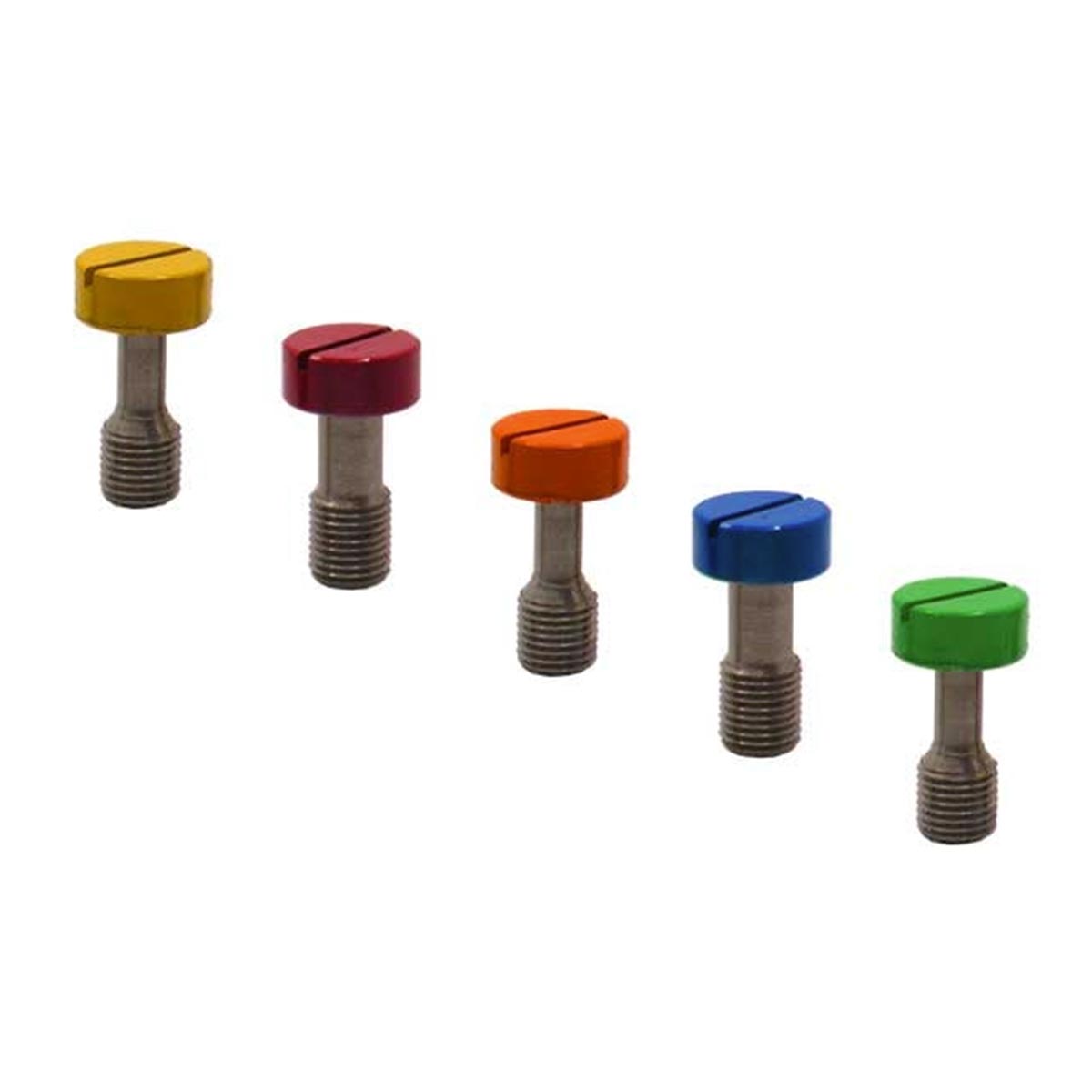

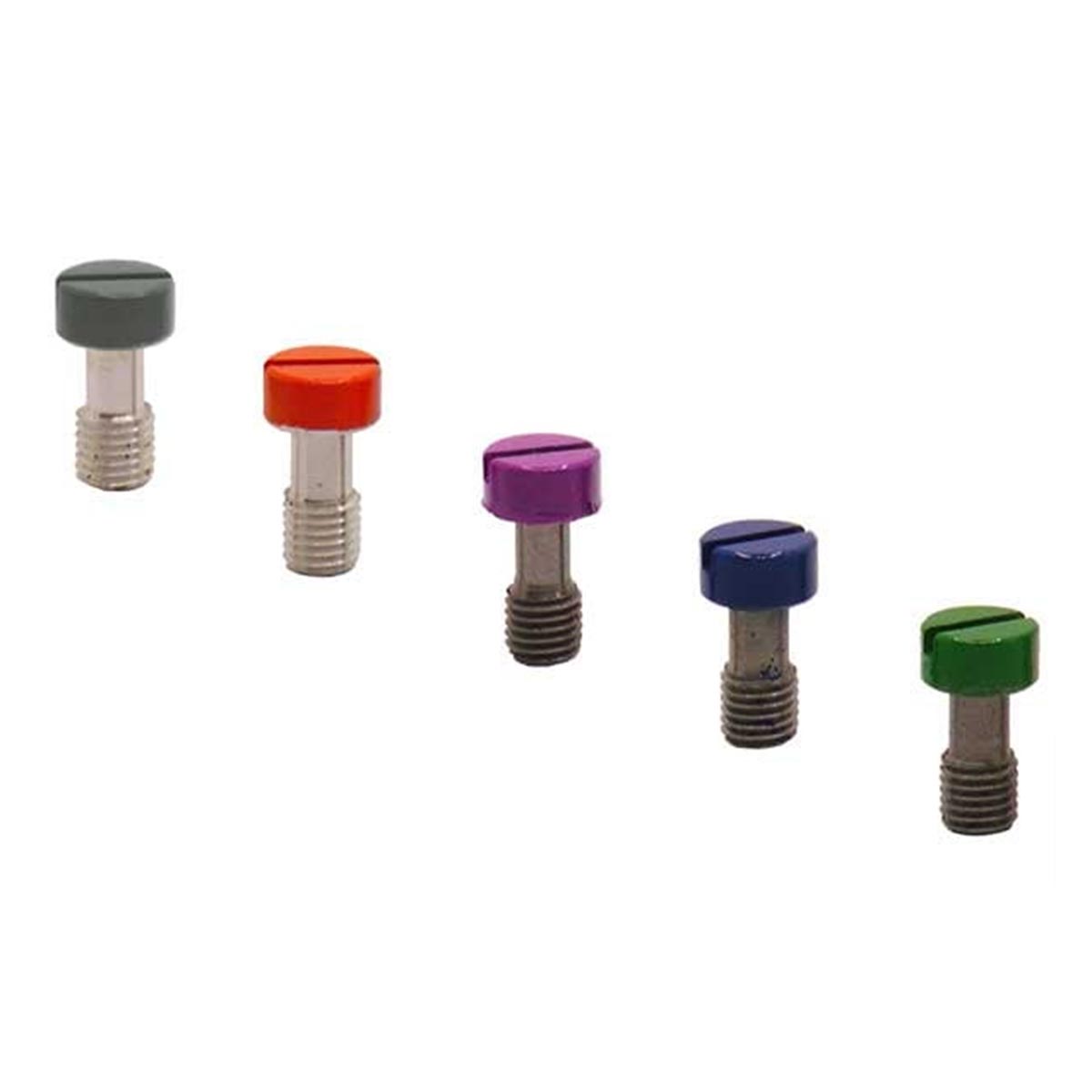

| Part # (5 pins/kit) | Breaking Point (+/- 5%) | Color Code | Maximum Torque | Preload | Compatible Breakaway Connector Part # |
| 00565-025* | 250 lb | Brown | 0.3 ft-lb | 60 lb | 00560-010 |
| 00565-040* | 400 lb | Gray | 0.5 ft-lb | 130 lb | |
| 00565-070 | 700 lb | Green | 2.0 ft-lb | 420 lb | |
| 00565-075 | 750 lb | Yellow | 2.0 ft-lb | 540 lb | |
| 00565-100 | 1,000 lb | Orange | 3.0 ft-lb | 720 lb | |
| 00565-120 | 1,200 lb | Purple | 3.0 ft-lb | 800 lb | |
| 00565-130 | 1,300 lb | Black | 4.0 ft-lb | 840 lb | |
| 00565-150 | 1,500 lb | Red | 4.0 ft-lb | 980 lb | |
| 00565-200 | 2,000 lb | Blue | 6.0 ft-lb | 1,360 lb | |
| 00565-200S | 2,000 lb | Grey | 6.0 ft-lb | 1,360 lb | |
| 00565-250 | 2,500 lb | Green | 7.0 ft-lb | 1,700 lb | |
| 00565-250S | 2,500 lbt | Dark Blue | 7.0 ft-lb | 1,700 lb | |
| 00565-300 | 3,000 lb | Yellow | 12 ft-lb | 1,853 lb | 00560-020 |
| 00565-600 | 6,000 lb | Orange | 23 ft-lb | 3,680 lb | |
| 00565-700 | 7,000 lbt | Red | 26 ft-lb | 4,160 lb | |
| 00565-800 | 8,000 lb | Blue | 30 ft-lb | 4,800 lb | |
| 00565-900 | 9,000 lb | Green | 33 ft-lb | 5,280 lb |
