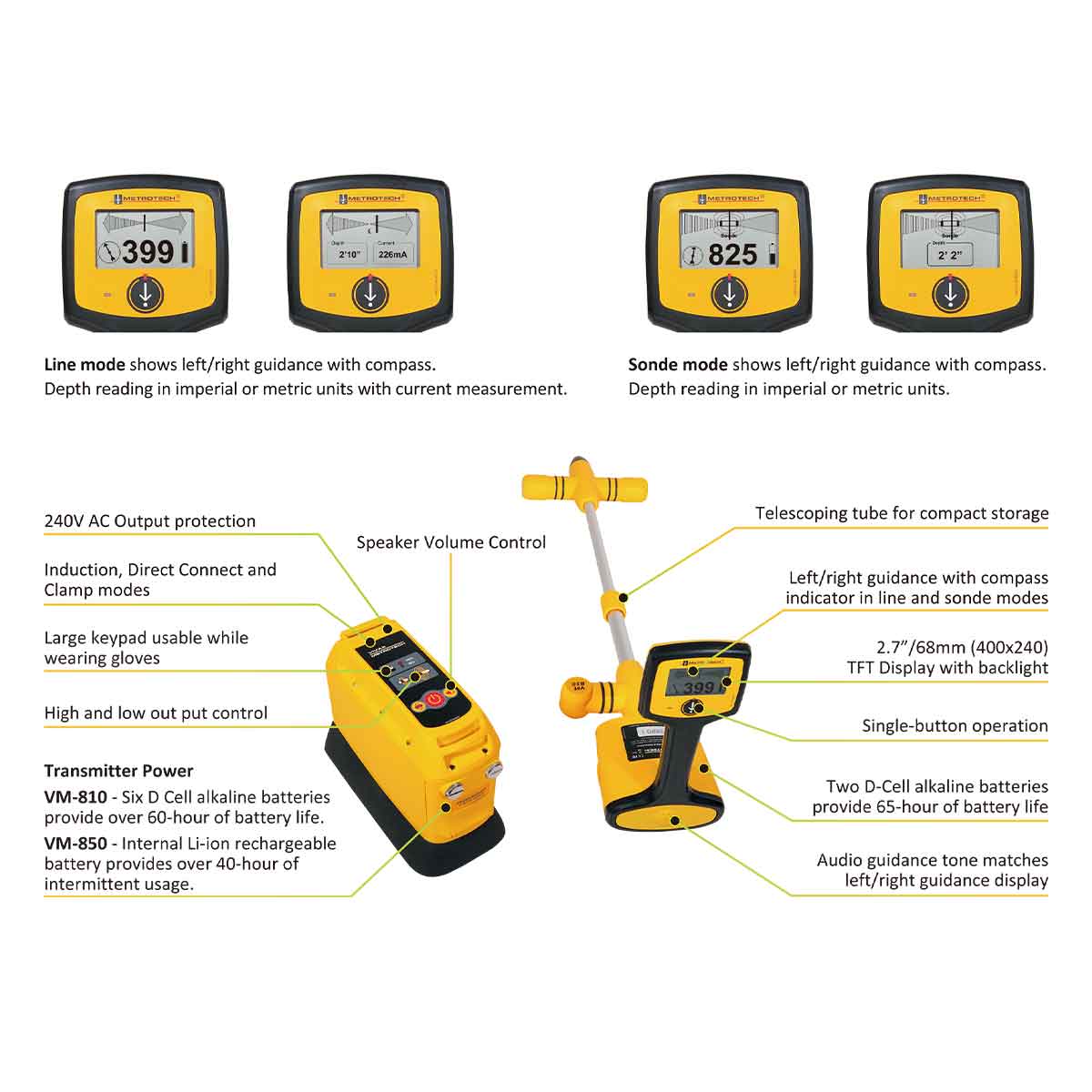

Key Features

Simple – Single button operation
Intuitive – Distance Sensitive Left/Right GuidanceTM
Eﬃcient – “Real Time” fully automatic gain
Accurate – Depth and current readout

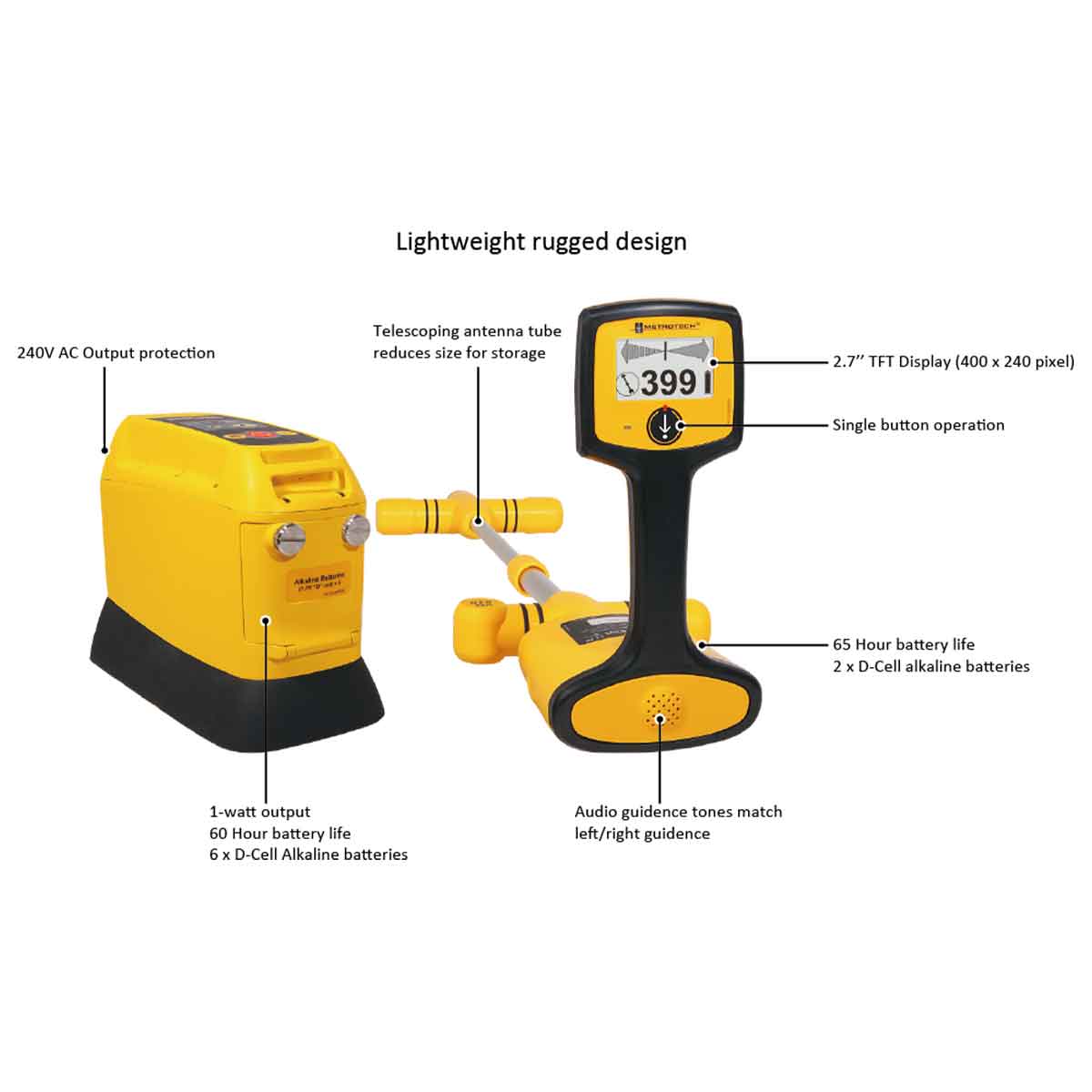

Compact – Lightweight rugged design
Rechargeable Li-ion battery – Li-ion battery in the VM-850 transmitter

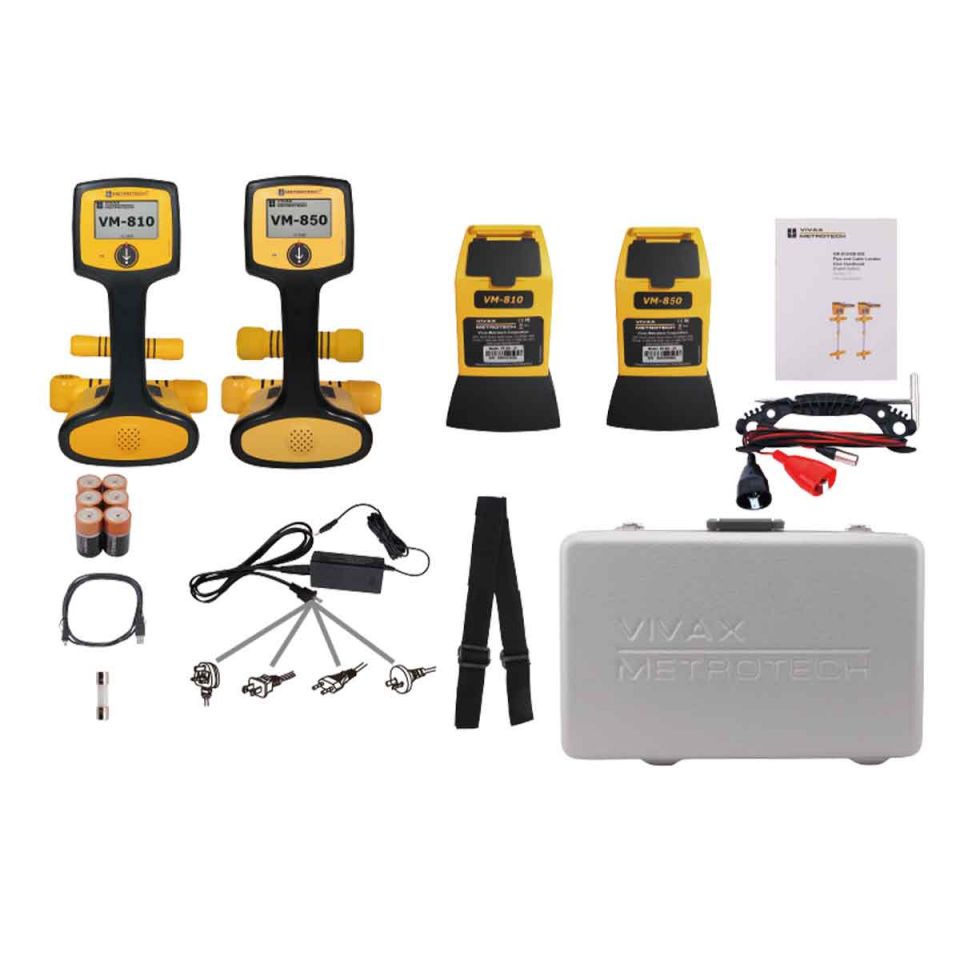

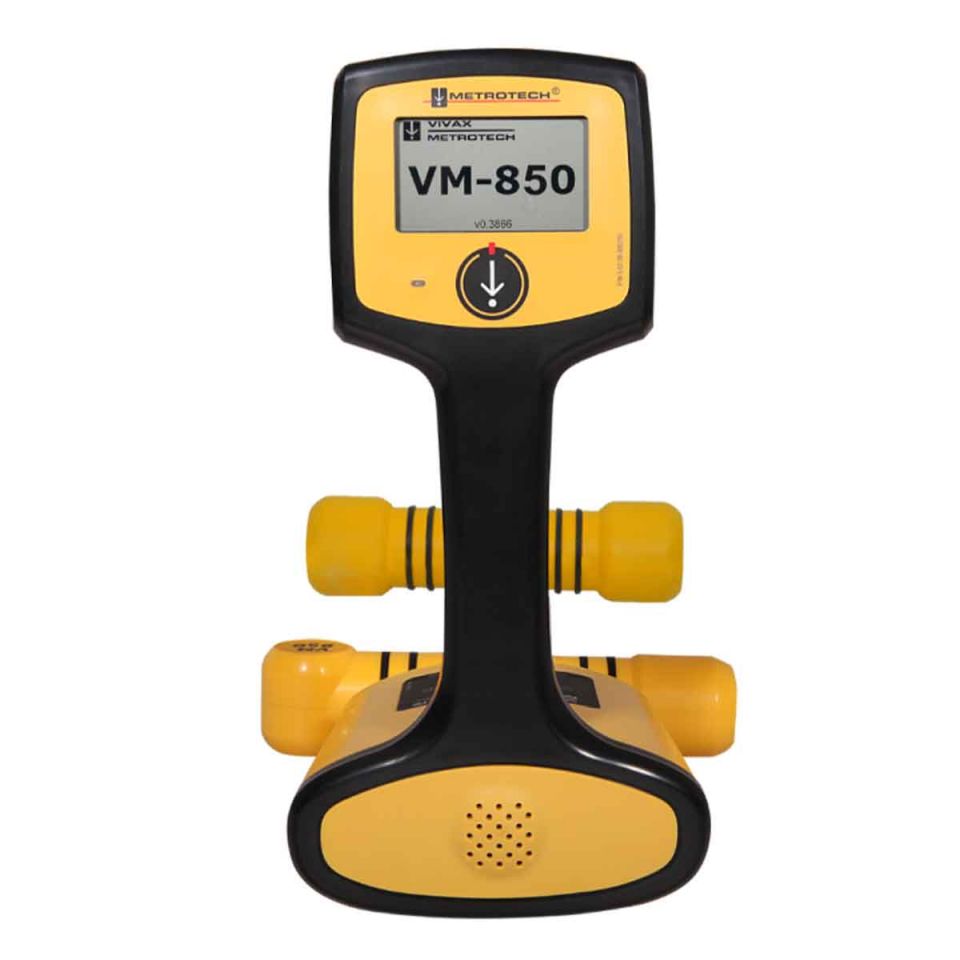

VM-850 Underground Utility Locator Kit

Using the correct frequency makes a world of diﬀerence when locating buried utilities. The depth of the utility, size, material, and amount of congestion (proximity of other utilities) all need to be taken into consideration for the correct frequency selection. Large diameter, direct buried pipes with bell housing ends that use insulators and rubber gaskets, such as water or gas require a higher frequency while smaller diameter, well-grounded direct buried or long distance in conduits work, better with a lower frequency. The VM-850 operates at a much lower frequency of 9.82kHz which is ideal for smaller diameter utilities such as CATV, power and telephone with less bleeding onto adjacent services.

WCT Products is the Southern California Distributor for Vivax-Metrotech products. Reach out for a quote or demonstration and we'll be in touch!
