Key Features

Range of clamps from 2” to 18”
Apply a transmitter signal to live cables
Apply locate signals on lines in a range of situations

Transmitter Signal Clamps

Vivax-Metrotech Transmitter Clamps are available in multiple sizes and lengths, making them easy to attach to lines with 2" (50mm), 4" (100mm), 5" (125mm), 9" (230mm) or a Flexible 18" (450mm) diameters. Signal Clamps provide a precise way to apply a locating signal. They are generally used when it is not possible or convenient to access the conductor to make a direct connection but there is sufficient room to place the clamp around the cable or pipe, or when it is not safe to make a direct connection because the target cable is carrying electricity. Signal Clamps are specialized inductive devices, sometimes known as a toroid or coupler. All clamps are optimized to work at specific frequencies. In most cases, clamps are designed to be used at frequencies generally between 8kHz and 83.1kHz.
The Loc3 transmitters, starting in 2023, use the Blue Plug; older transmitters and the VM Transmitters (VM-810/VM-850) will have the 3-pin Silver Plug.

WCT Products is the Southern California Distributor for Vivax-Metrotech.

PRODUCT

PRICE

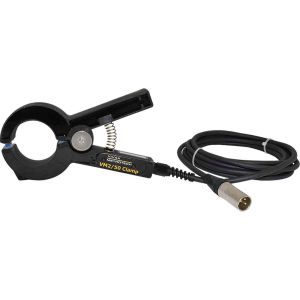

2" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00011)

2" Transmitter Clamp 3 Pin Silver Plug

2" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00011)

Quote Only

2" Transmitter Clamp Blue plug (1.200.15.00001)

2" Transmitter Clamp Blue plug

2" Transmitter Clamp Blue plug (1.200.15.00001)

Quote Only

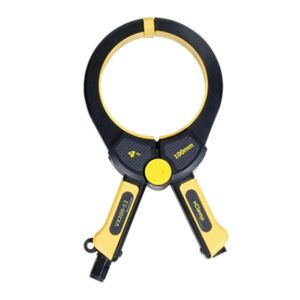

4" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00012)

4" Transmitter Clamp 3 Pin Silver Plug

4" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00012)

Quote Only

4" Transmitter Clamp Blue plug (1.222.03.00001)

4" Transmitter Clamp Blue plug

4" Transmitter Clamp Blue plug (1.222.03.00001)

Quote Only

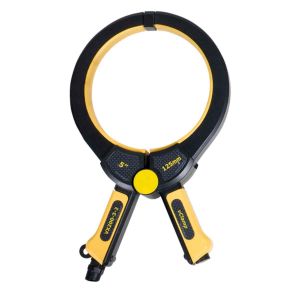

5" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00004)

5" Transmitter Clamp 3 Pin Silver Plug

5" Transmitter Clamp 3 Pin Silver Plug (1.200.03.00004)

Quote Only

5" Transmitter Clamp Blue plug (1.222.04.00001)

5" Transmitter Clamp Blue plug

5" Transmitter Clamp Blue plug (1.222.04.00001)

Quote Only

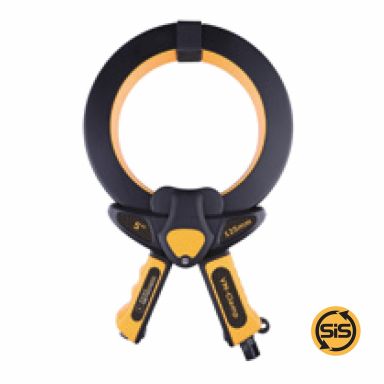

5" Transmitter Clamp SiS with Blue plug (1.219.09.00001)

5" Transmitter Clamp SiS with Blue plug

5" Transmitter Clamp SiS with Blue plug (1.219.09.00001)

Quote Only

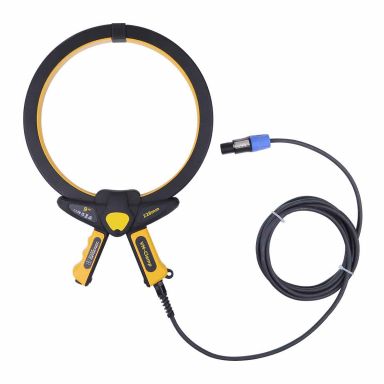

9" Transmitter Clamp Blue plug (1.219.08.00001)

9" Transmitter Clamp Blue plug

9" Transmitter Clamp Blue plug (1.219.08.00001)

Quote Only

9" Transmitter Clamp 3 Pin Silver Plug (1.219.08.00002)

9" Transmitter Clamp 3 Pin Silver Plug

9" Transmitter Clamp 3 Pin Silver Plug (1.219.08.00002)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
