Test Slug Mandrel

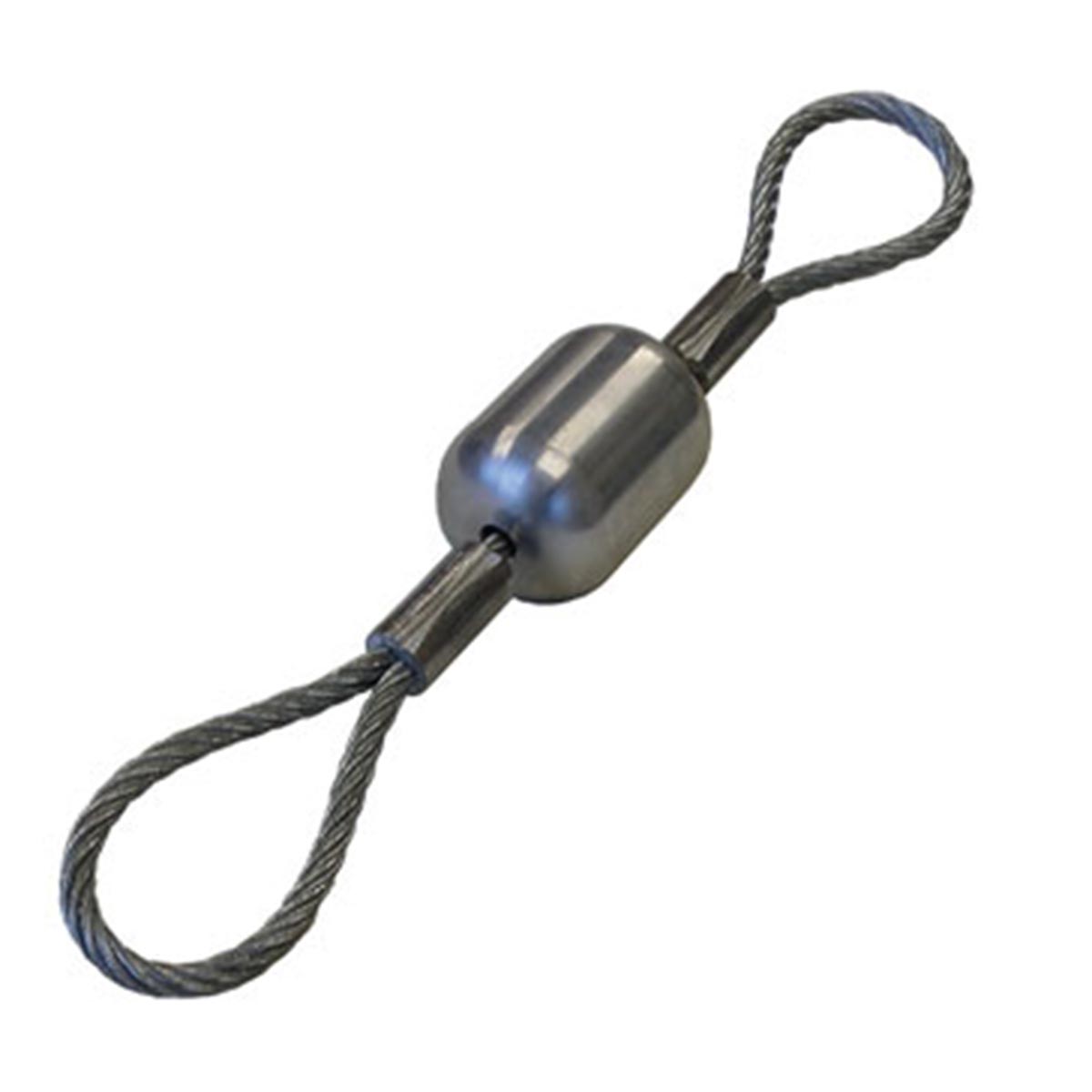

These simple aluminum mandrels are designed to be pulled through the duct prior to cable installation, verifying the duct is rounded correctly and ready for use.

The Test Slug diameters will approximately fill 70% of Schedule 40 ducting & 80% of Schedule 80 ducting. Both ends are rounded for convenient pulling in either direction, allowing for a more thorough check of the installed ducts prior to running utilities or facilities.

PRODUCT

PRICE

Test Slug - Aluminum for 1-1/2" Diameter Sched.40 Duct (08450-150)

Quote Only

Test Slug - Aluminum for 2" Diameter Sched.40 Duct (08450-200)

Quote Only

Test Slug - Aluminum for 2-1/2" Diameter Sched.40 Duct (08450-250)

Quote Only

Test Slug - Aluminum for 3" Diameter Sched.40 Duct (08450-300)

Quote Only

Test Slug - Aluminum for 3-1/2" Diameter Sched.40 Duct (08450-350)

Quote Only

Test Slug - Aluminum for 4" Diameter Sched.40 Duct (08450-400)

Quote Only

Test Slug - Aluminum for 5" Diameter Sched.40 Duct (08450-500)

Quote Only

Test Slug - Aluminum for 6" Diameter Sched.40 Duct (08450-600)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Nominal Duct Size	Body Diameter	Body Length	3:1 Safe Working Load	Weight
08450-150	1.5"	1.33"	1.68"	2,300 lbs.	0.4 lbs.
08450-200	2"	1.73"	2.37"	2,300 lbs.	0.7 lbs.
08450-250	2.5"	2.06"	2.94"	2,300 lbs.	1.1 lbs.
08450-300	3"	2.6"	3.5"	2,300 lbs.	1.6 lbs.
08450-350	3.5"	2.96"	4.06"	4,800 lbs.	2.7 lbs.
08450-400	4"	3.42"	4.81"	4,800 lbs.	4.1 lbs.
08450-500	5"	4.3"	5.94"	4,800 lbs.	7.1 lbs.
08450-600	6"	5.15"	7.06"	4,800 lbs.	11.5 lbs.
