    Swivel-Grip Clevis Style Pulling Eye

    Constructed of stainless steel, Swivel-Grip power cable pulling eyes feature a built-in swivel head with load ratings higher than the cables they pull. Swivel-Grip cable pullers work best with power cables that have more than seven strand conductors.

    Series 00925 Swivel-Grips are reusable and feature a clevis style head that attaches directly over the looped ends of bridle slings or other pulling attachments. There are three body sizes available, covering the 1/0 AWG to 1000 MCM cable range.

    The 00925 series Swivel-Grip pulling eyes feature a built-in swivel eliminating the need for an added line swivel and reducing the cost.
    PRODUCT
    PRICE
    Swivel-Grip Cable Pulling Eyes, 1/0 Awg (00925-001)
    Swivel-Grip Cable Pulling Eyes, 1/0 Awg
    Swivel-Grip Cable Pulling Eyes, 1/0 Awg (00925-001)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 2/0 Awg (00925-002)
    Swivel-Grip Cable Pulling Eyes, 2/0 Awg
    Swivel-Grip Cable Pulling Eyes, 2/0 Awg (00925-002)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 3/0 Awg (00925-003)
    Swivel-Grip Cable Pulling Eyes, 3/0 Awg
    Swivel-Grip Cable Pulling Eyes, 3/0 Awg (00925-003)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 4/0 Awg (00925-004)
    Swivel-Grip Cable Pulling Eyes, 4/0 Awg
    Swivel-Grip Cable Pulling Eyes, 4/0 Awg (00925-004)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 250 Mcm (00925-025)
    Swivel-Grip Cable Pulling Eyes, 250 Mcm
    Swivel-Grip Cable Pulling Eyes, 250 Mcm (00925-025)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 350 Mcm (00925-035)
    Swivel-Grip Cable Pulling Eyes, 350 Mcm
    Swivel-Grip Cable Pulling Eyes, 350 Mcm (00925-035)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 350 Mcm Compact (00925-035C)
    Swivel-Grip Cable Pulling Eyes, 350 Mcm Compact
    Swivel-Grip Cable Pulling Eyes, 350 Mcm Compact (00925-035C)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 500 Mcm (00925-050)
    Swivel-Grip Cable Pulling Eyes, 500 Mcm
    Swivel-Grip Cable Pulling Eyes, 500 Mcm (00925-050)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 600 Mcm (00925-060)
    Swivel-Grip Cable Pulling Eyes, 600 Mcm
    Swivel-Grip Cable Pulling Eyes, 600 Mcm (00925-060)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 700 Mcm (00925-070)
    Swivel-Grip Cable Pulling Eyes, 700 Mcm
    Swivel-Grip Cable Pulling Eyes, 700 Mcm (00925-070)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 750 Mcm (00925-075)
    Swivel-Grip Cable Pulling Eyes, 750 Mcm
    Swivel-Grip Cable Pulling Eyes, 750 Mcm (00925-075)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 750 Mcm Compact (00925-075C)
    Swivel-Grip Cable Pulling Eyes, 750 Mcm Compact
    Swivel-Grip Cable Pulling Eyes, 750 Mcm Compact (00925-075C)

    Quote Only
    Swivel-Grip Cable Pulling Eyes, 1000 Mcm (00925-100)
    Swivel-Grip Cable Pulling Eyes, 1000 Mcm
    Swivel-Grip Cable Pulling Eyes, 1000 Mcm (00925-100)

    Quote Only
    Swivel-Grip Cable Pulling Eyes,1000 Mcm Compact (00925-100C)
    Swivel-Grip Cable Pulling Eyes,1000 Mcm Compact
    Swivel-Grip Cable Pulling Eyes,1000 Mcm Compact (00925-100C)

    Quote Only
    Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
    Total: $0.00


    Sign in or register to access Job Lists.

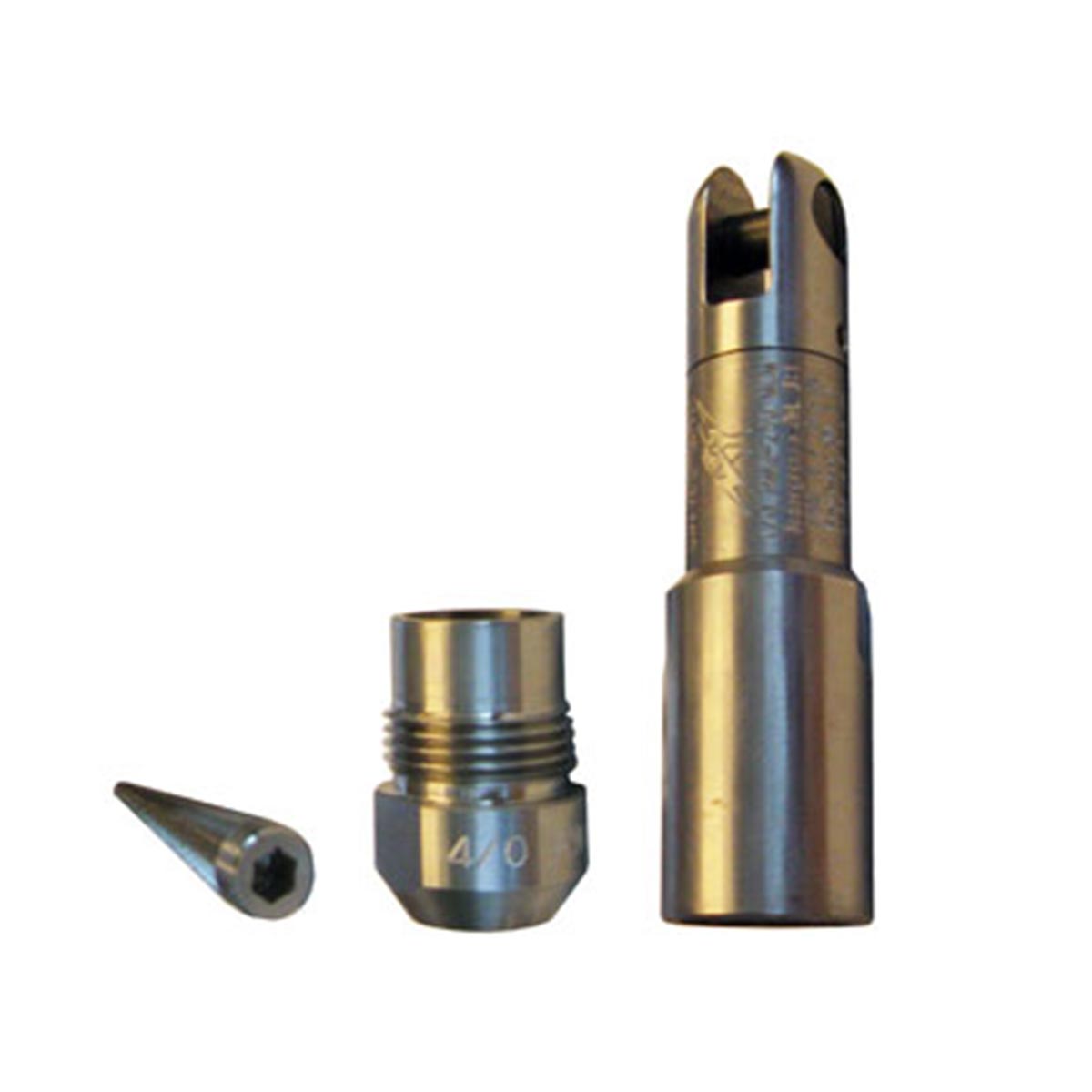

    The re-useable Swivel-Grip is used to install power cable and has a built-in swivel. The Swivel-Grip is constructed out of stainless steel with a radial bearing for bending load and a thrust bearing for tensile load. Grip is obtained by cutting away the cable jacket, feeding the core through the Cone nut and driving the tapered insert into the cable core. The higher the load, the further the insert is drawn into the tapered bore and the firmer the grip becomes. Note that this product is not designed to run around bullwheels.

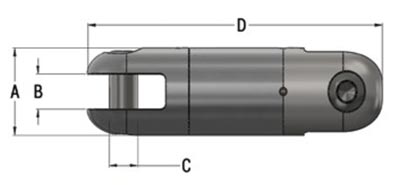

    Swivel-Grip Clevis Style Pulling Eye diagram
    Part # Cable Size Max. Core Dia. A B C D Weight Threaded Cone Nut Tapered Insert Body Fits Bridle
    Sling
    00925-001 1/0 AWG 0.39"
    9.9mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 1.05 lbs
    0.47 kg    		 24006-001 24005-001 24026-001 1/4"
    00925-002 2/0 AWG 0.44"
    11.1mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 1.03 lbs
    0.46 kg    		 24006-002 24005-001 24026-001
    00925-003 3/0 AWG 0.50"
    12.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 .08 lbs
    0.49 kg    		 24006-003 24005-001 24026-001
    00925-004 4/0 AWG 0.54"
    13.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 0.98 lbs
    0.44 kg    		 24006-004 24005-001 24026-001
    00925-025 250 MCM 0.61"
    15.5mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 0.93 lbs
    0.42 kg    		 24006-025 24005-001 24026-001
    00925-030 300 MCM 0.62"
    15.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 5-5/8"
    143mm    		 0.92 lbs
    0.42 kg    		 24006-030 24005-001 24026-001
    00925-035C 350 MCM
    Compact    		 0.65"
    16.5mm    		 1-7/8"
    48mm    		 11/16"
    17.4mm    		 5/8"
    15.9mm    		 7-1/8"
    181mm    		 3.34 lbs
    1.51 kg    		 24006-035C 24005-035 24026-035 1/4"
    &
    3/8"
    00925-035 350 MCM 0.71"
    18mm    		 1-7/8"
    48mm    		 11/16"
    17.4mm    		 5/8"
    15.9mm    		 7-1/8"
    181mm    		 3.3 lbs
    1.49 kg    		 24006-035 24005-035 24006-035
    00925-050 500 MCM 0.81"
    20.6mm    		 1-7/8"
    48mm    		 11/16"
    17.4mm    		 5/8"
    15.9mm    		 7-1/8"
    181mm    		 3.2 lbs
    1.45 kg    		 24006-050 24005-035 24006-035
    00925-060 600 MCM 0.91"
    23.1mm    		 1-7/8"
    48mm    		 11/16"
    17.4mm    		 5/8"
    15.9mm    		 7-1/8"
    181mm    		 3.1 lbs
    1.41 kg    		 24006-060 24005-035 24006-035
    00925-070 700 MCM 0.97"
    24.6mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.4mm    		 8"
    203mm    		 4.7 lbs
    2.1 kg    		 24006-070 24005-070 24006-070 3/8"
    &
    1/2"
    00925-075C 50 MCM
    Compact    		 0.94"
    23.8mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.4mm    		 8"
    203mm    		 4.9 lbs
    2.2 kg    		 24006-075C 24005-070 24006-070
    00925-075 750 MCM 1.00"
    25.4mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.4mm    		 8"
    203mm    		 4.7 lbs
    2.1 kg    		 24006-075 24005-070 24006-070
    00925-100C 500 mm²
    Custom    		 1.03"
    26.2mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.4mm    		 8"
    203mm    		 4.4 lbs
    2.0 kg    		 24006-100C 24005-070 24006-070
    00925-100 1000 MCM 1.15"
    29.2mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.4mm    		 8"
    203mm    		 4.5 lbs
    2.0 kg    		 24006-100 24005-070 24006-070
