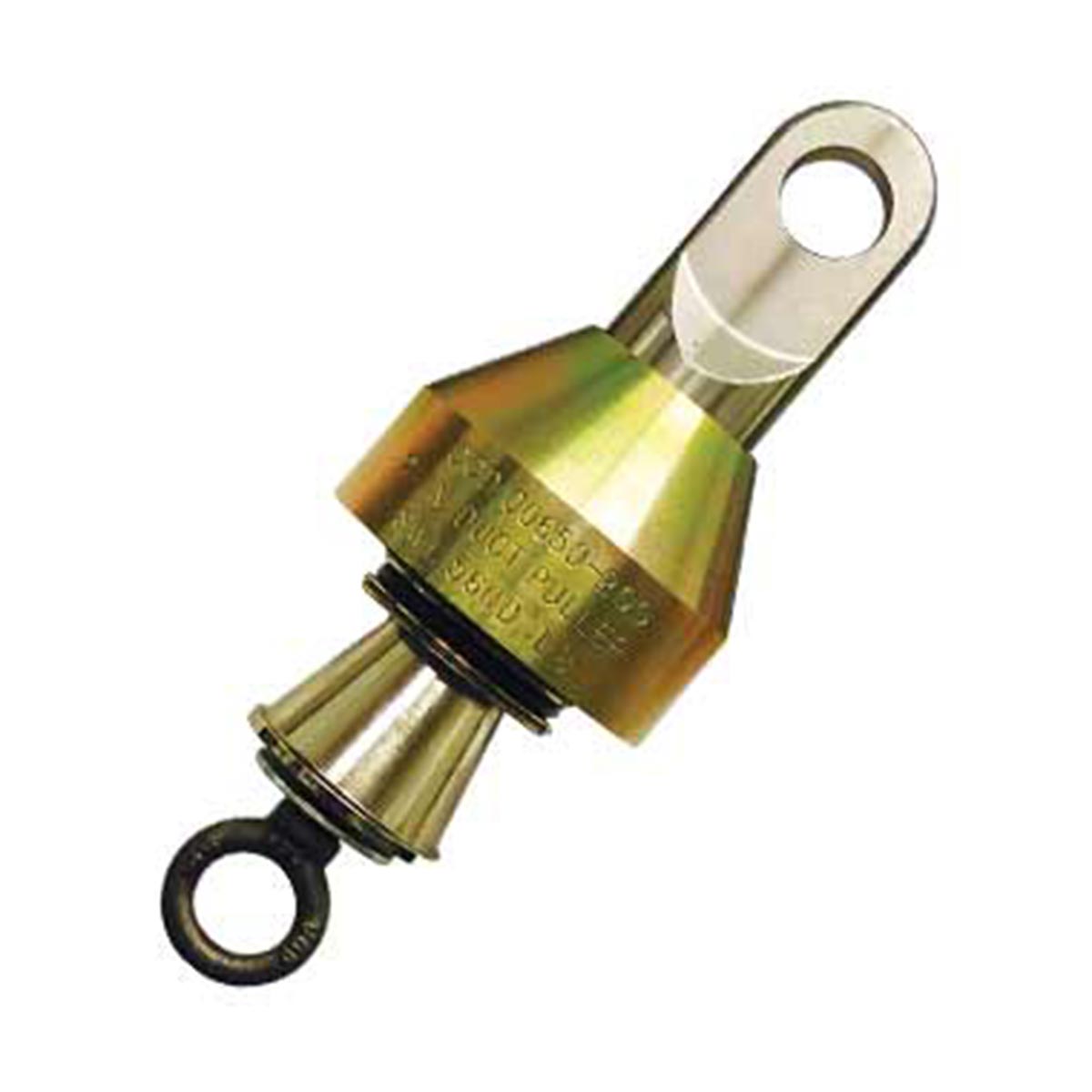

Sealed Duct Puller with Expanding Jaw

Ensure the final integrity of your polyethylene ducting with the 00650/00651 Series Duct Pullers. The expanding jaws grip the inside wall of the duct to evenly spread pull loads, allowing maximum pulling loads with no damage to the ducting.

A heavy-duty alloy steel pulling head protects the mechanism from heavy knocks or side loads. The permanent outer sleeve on the puller prevents trenchless elements, such as fluids & contaminants, from entering the duct.

PRODUCT

PRICE

Sealed Expanding Duct Puller 1-1/4" Duct (00650-125)

Quote Only

Sealed Expanding Duct Puller 1-1/2" Duct (00650-150)

Quote Only

Sealed Expanding Duct Puller 2" Duct (00650-200)

Quote Only

Sealed Expanding Duct Puller 2-1/2" Duct (00650-250)

Quote Only

Sealed Expanding Duct Puller 3" Duct (00650-300)

Quote Only

Sealed Expanding Duct Puller 4" Duct (00650-400)

Quote Only

Sealed Expanding Duct Puller 5" Duct (00650-500)

Quote Only

Sealed Expanding Duct Puller 6" Duct (00650-600)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Nominal Duct Size	3:1 Safe Working Load	Rear Eye Capacity (3:1 SWL).	Min. Duct Inside Dia.	Max. Duct Inside Dia.	Max. Duct Outside Dia.	Weight
00650-125	1.25"	3,100 lbs.	1,000 lbs.	1.250"	1.500"	1.656"	1.9 lbs.
00650-150	1.5"	3,600 lbs.	1,000 lbs.	1.438"	1.688"	1.906"	2.2 lbs.
00650-200	2.0"	5,600 lbs.	1,000 lbs.	1.813"	2.188"	2.375"	3.9 lbs.
00650-250	2.5"	8,200 lbs.	1,000 lbs.	2.188"	2.563"	2.875"	5.6 lbs.
00650-300	3.0"	12,000 lbs.	1,000 lbs.	2.688"	3.063"	3.500"	7.33 lbs.
00650-400	4.0"	20,100 lbs.	1,500 lbs.	3.438"	4.250"	4.500"	17.3 lbs.
00650-500	5.0"	30,700 lbs.	1,500 lbs.	4.313"	5.125"	5.563"	26.5 lbs.
00650-600	6.0"	43,600 lbs.	2,500 lbs.	5.063"	6.063"	6.625"	48.0 lbs.
