    Power-Grip Lug Style Pulling Eye

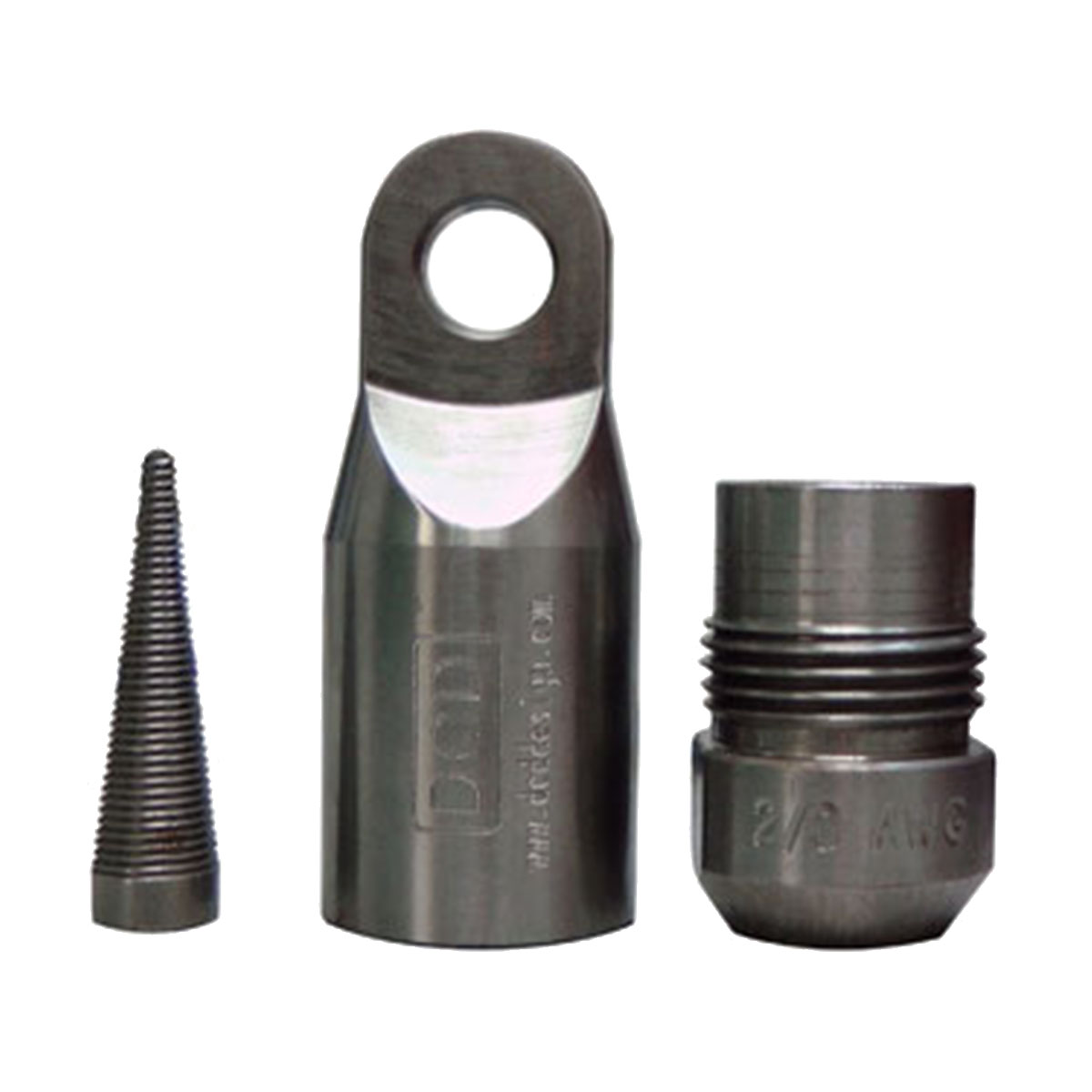

    Constructed of stainless steel, Power-Grip power cable pulling eyes offer the shortest possible overall length to easily travel over sheaves or bullwheels. Power-Grip cable pullers work best with power cables that have more than seven strand conductors. Series 24000 Power-Grips are reusable and feature a lug style head that attaches directly into a line swivel or other type of connector. There are four body sizes available, that covers the 1/0 AWG to 2000 MCM cable range. The 24000 series Power-Grip pulling eyes should always be used with a Series 00505 line swivel.
    PRODUCT
    PRICE
    Power-grip Pulling Eye 1/0 Awg Lug Style (24000-001)
    Power-grip Pulling Eye 1/0 Awg Lug Style
    Power-grip Pulling Eye 1/0 Awg Lug Style (24000-001)

    Quote Only
    Power-grip Pulling Eye 2/0 Awg Lug Style (24000-002)
    Power-grip Pulling Eye 2/0 Awg Lug Style
    Power-grip Pulling Eye 2/0 Awg Lug Style (24000-002)

    Quote Only
    Power-grip Pulling Eye 3/0 Awg Lug Style (24000-003)
    Power-grip Pulling Eye 3/0 Awg Lug Style
    Power-grip Pulling Eye 3/0 Awg Lug Style (24000-003)

    Quote Only
    Power-grip Pulling Eye 4/0 Awg Lug Style (24000-004)
    Power-grip Pulling Eye 4/0 Awg Lug Style
    Power-grip Pulling Eye 4/0 Awg Lug Style (24000-004)

    Quote Only
    Power-grip Pulling Eye 250 Mcm Lug Style (24000-025)
    Power-grip Pulling Eye 250 Mcm Lug Style
    Power-grip Pulling Eye 250 Mcm Lug Style (24000-025)

    Quote Only
    Power-grip Pulling Eye 300 MCM Lug Style (24000-030)
    Power-grip Pulling Eye 300 MCM Lug Style
    Power-grip Pulling Eye 300 MCM Lug Style (24000-030)

    Quote Only
    Power-grip Pulling Eye 350 Mcm Lug Style (24000-035)
    Power-grip Pulling Eye 350 Mcm Lug Style
    Power-grip Pulling Eye 350 Mcm Lug Style (24000-035)

    Quote Only
    Power-grip Pulling Eye - Compact 350 MCM Lug Style (24000-035C)
    Power-grip Pulling Eye - Compact 350 MCM Lug Style
    Power-grip Pulling Eye - Compact 350 MCM Lug Style (24000-035C)

    Quote Only
    Power-grip Pulling Eye 500 Mcm Lug Style (24000-050)
    Power-grip Pulling Eye 500 Mcm Lug Style
    Power-grip Pulling Eye 500 Mcm Lug Style (24000-050)

    Quote Only
    Power-grip Pulling Eye 600 MCM Lug Style (24000-060)
    Power-grip Pulling Eye 600 MCM Lug Style
    Power-grip Pulling Eye 600 MCM Lug Style (24000-060)

    Quote Only
    Power-grip Pulling Eye 700 Mcm Lug Style (24000-070)
    Power-grip Pulling Eye 700 Mcm Lug Style
    Power-grip Pulling Eye 700 Mcm Lug Style (24000-070)

    Quote Only
    Power-grip Pulling Eye 750 Mcm Lug Style (24000-075)
    Power-grip Pulling Eye 750 Mcm Lug Style
    Power-grip Pulling Eye 750 Mcm Lug Style (24000-075)

    Quote Only
    Power-grip Pulling Eye - Compact 750 Mcm Lug Style (24000-075C)
    Power-grip Pulling Eye - Compact 750 Mcm Lug Style
    Power-grip Pulling Eye - Compact 750 Mcm Lug Style (24000-075C)

    Quote Only
    Power-grip Pulling Eye 1000 Mcm Lug Style (24000-100)
    Power-grip Pulling Eye 1000 Mcm Lug Style
    Power-grip Pulling Eye 1000 Mcm Lug Style (24000-100)

    Quote Only
    Power-grip Pulling Eye - Compact 1000 MCM Lug Style (24000-100C)
    Power-grip Pulling Eye - Compact 1000 MCM Lug Style
    Power-grip Pulling Eye - Compact 1000 MCM Lug Style (24000-100C)

    Quote Only
    Power-grip Pulling Eye 1250 MCM Lug Style (24000-125)
    Power-grip Pulling Eye 1250 MCM Lug Style
    Power-grip Pulling Eye 1250 MCM Lug Style (24000-125)

    Quote Only
    Power-grip Pulling Eye 1500 MCM Lug Style (24000-150)
    Power-grip Pulling Eye 1500 MCM Lug Style
    Power-grip Pulling Eye 1500 MCM Lug Style (24000-150)

    Quote Only
    Power-grip Pulling Eye 1750 MCM Lug Style (24000-175)
    Power-grip Pulling Eye 1750 MCM Lug Style
    Power-grip Pulling Eye 1750 MCM Lug Style (24000-175)

    Quote Only
    Power-grip Pulling Eye 2000 MCM Lug Style (24000-200)
    Power-grip Pulling Eye 2000 MCM Lug Style
    Power-grip Pulling Eye 2000 MCM Lug Style (24000-200)

    Quote Only
    Power-grip Pulling Eye - Compact 2000 MCM Lug Style (24000-200C)
    Power-grip Pulling Eye - Compact 2000 MCM Lug Style
    Power-grip Pulling Eye - Compact 2000 MCM Lug Style (24000-200C)

    Quote Only
    Power-grip Pulling Eye 3000 MCM Lug Style (24000-300)
    Power-grip Pulling Eye 3000 MCM Lug Style
    Power-grip Pulling Eye 3000 MCM Lug Style (24000-300)

    Quote Only
    Power-grip Pulling Eye - Compact 3000 MCM Lug Style (24000-300C)
    Power-grip Pulling Eye - Compact 3000 MCM Lug Style
    Power-grip Pulling Eye - Compact 3000 MCM Lug Style (24000-300C)

    Quote Only
    Power-grip Pulling Eye 4000 MCM Lug Style (24000-400)
    Power-grip Pulling Eye 4000 MCM Lug Style
    Power-grip Pulling Eye 4000 MCM Lug Style (24000-400)

    Quote Only
    Power-grip Pulling Eye 5000 MCM Lug Style (24000-500)
    Power-grip Pulling Eye 5000 MCM Lug Style
    Power-grip Pulling Eye 5000 MCM Lug Style (24000-500)

    Quote Only
    Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
    Total: $0.00


    Sign in or register to access Job Lists.

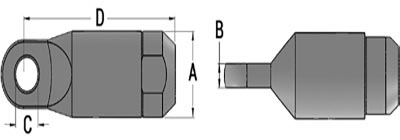

    Power-Grip Lug Style Pulling Eye diagram
    Part # Cable
    Size    		 Max.
    Core
    Dia.    		 A B C D Weight Threaded
    Cone Nut    		 Tapered
    Insert    		 Body Fits Line
    Swivels
    24000-001 1/0 AWG 0.39"
    9.9mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 1/2"
    13mm    		 3-7/8"
    98mm    		 0.68 lbs
    0.30 kg    		 24006-001 24005-001 24007-001 00505-010
    to
    00505-027
    24000-002 2/0 AWG 0.44"
    11.1mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 1/2"
    13mm    		 3-7/8"
    98mm    		 0.67 lbs
    0.30 kg    		 24006-002 24005-001 24007-001
    24000-003 3/0 AWG 0.50"
    12.7mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 1/2"
    13mm    		 3-7/8"
    98mm    		 0.64 lbs
    0.29 kg    		 24006-003 24005-001 24007-001
    24000-004 4/0 AWG 0.54"
    13.7mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 1/2"
    13mm    		 3-7/8"
    98mm    		 0.61 lbs
    0.27 kg    		 24006-004 24005-001 24007-001
    24000-025 250 MCM 0.61"
    15.5mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 3-7/8"
    98mm    		 3-5/8"
    92mm    		 0.26 kg 24006-025 24005-001 24007-001
    24000-030 300 MCM 0.62"
    15.7mm    		 1-1/4"
    32mm    		 11/32"
    8.7mm    		 1/2"
    13mm    		 3-7/8"
    98mm    		 0.57 lbs
    0.26 kg    		 24006-030 24005-001 24007-001
    24000-035C 350 MCM
    Compact    		 0.65"
    16.5mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-3/4"
    120mm    		 1.88 lbs
    0.85 kg    		 24006-035C 24005-035 24007-035 00505-015
    to
    00505-030
    24000-035 350 MCM 0.71"
    18mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-3/4"
    120mm    		 1.84 lbs
    0.83 kg    		 24006-035 24005-035 24007-035
    24000-050 500 MCM 0.81"
    20.6mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-3/4"
    120mm    		 1.75 lbs
    0.79 kg    		 24006-050 24005-035 24007-035
    24000-060 600 MCM 0.91"
    23.1mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-3/4"
    120mm    		 1.73 lbs
    0.79 kg    		 24006-060 24005-035 24007-035
    24000-070 700 MCM 0.97"
    24.6mm    		 2-1/8"
    54mm    		 1/2"
    13mm    		 13/16"
    20.5mm    		 5-5/8"
    142mm    		 2.55 lbs
    1.15 kg    		 24006-070 24005-070 24007-070 00505-020
    to
    00505-035
    24000-075C 750 MCM 0.94"
    23.8mm    		 2-1/8"
    54mm    		 1/2"
    13mm    		 13/16"
    20.5mm    		 5-5/8"
    142mm    		 2.51 lbs
    1.14 kg    		 24006-075C 24005-070 24007-070
    24000-075 750 MCM 1.00"
    25.4mm    		 2-1/8"
    54mm    		 1/2"
    13mm    		 13/16"
    20.5mm    		 5-5/8"
    142mm    		 2.47 lbs
    1.12 kg    		 24006-075 24005-070 24007-070
    24000-100C 500 mm²
    Custom    		 1.03"
    26.2mm    		 2-1/8"
    54mm    		 1/2"
    13mm    		 13/16"
    20.5mm    		 5-5/8"
    142mm    		 2.4 lbs
    1.09 kg    		 24006-100C 24005-070 24007-070
    24000-100 1000 MCM 1.15"
    29.2mm    		 2-1/8"
    54mm    		 1/2"
    13mm    		 13/16"
    20.5mm    		 5-5/8"
    142mm    		 2.3 lbs
    1.04 kg    		 24006-100 24005-070 24007-070
    24000-125* 1250 MCM 1.29"
    32.8mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 7-15/16"
    202mm    		 6.37 lbs
    2.88 kg    		 24006-125 24005-125 24007-125 00505-035
    to
    00505-041
    24000-150* 1500 MCM 1.41"
    35.8mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 7-15/16"
    202mm    		 6.13 lbs
    2.78 kg    		 24006-150 24005-125 24007-125
    24000-175* 1750 MCM 1.53"
    38.9mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 7-15/16"
    202mm    		 5.84 lbs
    2.64 kg    		 24006-175 24005-125 24007-125
    24000-200* 2000 MCM 1.63"
    41.4mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 7-15/16"
    202mm    		 5.53 lbs
    2.5 kg    		 24006-200 24005-125 24007-125
    24100-200C* 45 mm
    2500 MCM    		 1.75"
    44.5mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 7-15/16"
    202mm    		 5.4 lbs
    2.45 kg    		 24006-200C 24005-125 24007-125
    24100-300* 3000 MCM 1.85"
    47mm    		 2-3/4"
    70mm    		 3/4"
    19mm    		 1-1/32"
    26mm    		 6-25/32"
    172mm    		 4.64 lbs
    2.11 kg    		 24006-200 24005-125 24007-125
    24000-300C* 1800 mm² 2.06"
    52.4mm    		 4-1/2"
    114mm    		 1"
    25mm    		 1-3/4"
    44.5mm    		 11-11/16"
    297mm    		 25.8 lbs
    11.7 kg    		 24006-300 24005-500 24007-500 00505-045
    &
    00505-050
    24000-500* 5000 MCM 2.52"
    64.0mm    		 4-1/2"
    114mm    		 1"
    25mm    		 1-3/4"
    44.5mm    		 1-11/16"
    297mm    		 23.7 lbs
    10.8 kg    		 24006-500 24005-500 24007-500
