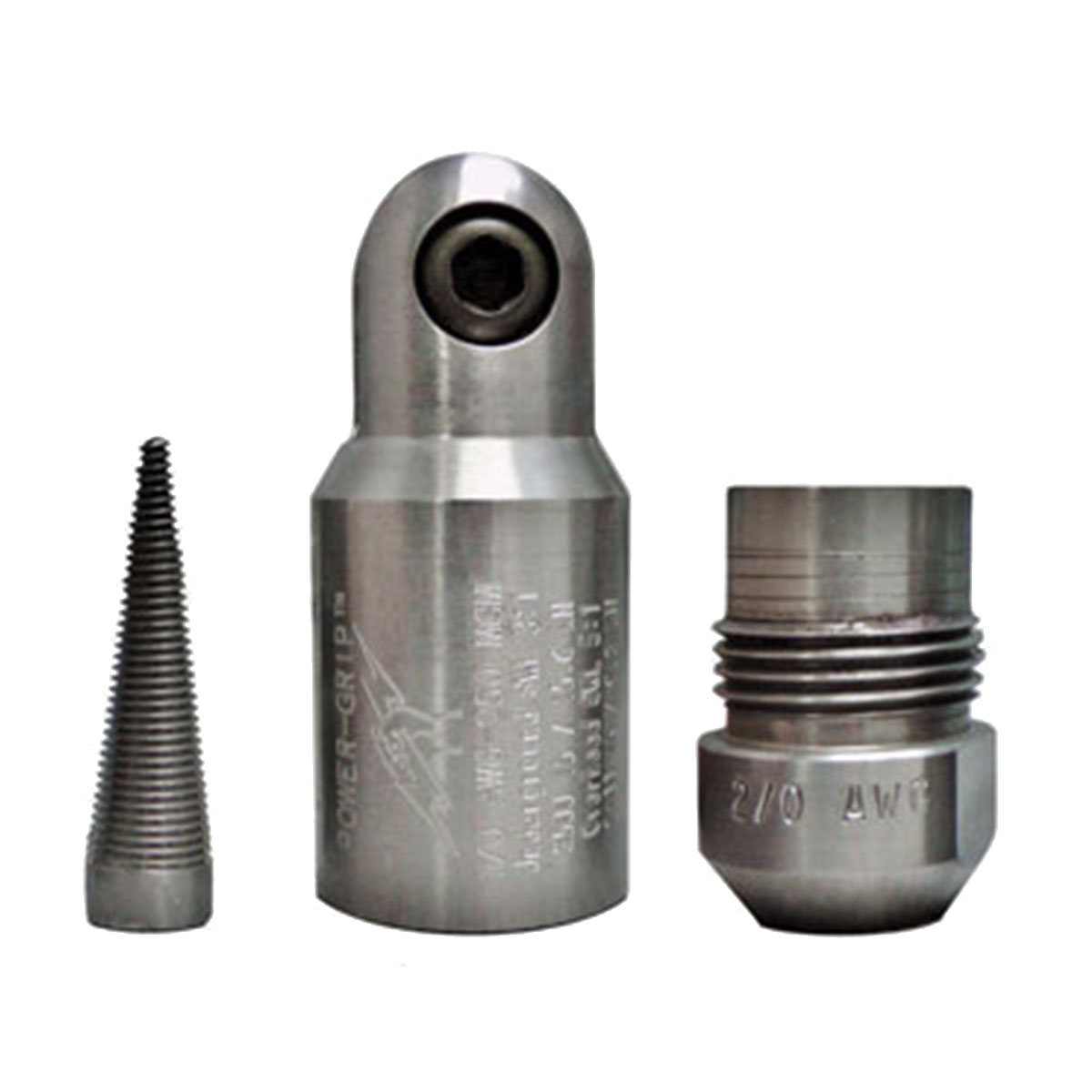

    Power-Grip Clevis Style Pulling Eye

    Constructed of stainless steel, Power-Grip power cable pulling eyes offer the shortest possible overall length to easily travel over sheaves or bullwheels. Power-Grip cable pullers work best with power cables that have more than seven strand conductors. Series 24100 Power-Grips are reusable and feature a clevis style head that attaches directly over the looped ends of bridle slings or other pulling attachments. There are four body sizes available, that covers the 1/0 AWG to 2000 MCM cable range. The 24100 series Power-Grip pulling eyes should always be used with a Series 00505 line swivel.
    PRODUCT
    PRICE
    Power-grip Pulling Eye 1/0 Awg, Clevis Style (24100-001)
    Power-grip Pulling Eye 1/0 Awg, Clevis Style
    Power-grip Pulling Eye 1/0 Awg, Clevis Style (24100-001)

    Quote Only
    Power-grip Pulling Eye 2/0 Awg, Clevis Style (24100-002)
    Power-grip Pulling Eye 2/0 Awg, Clevis Style
    Power-grip Pulling Eye 2/0 Awg, Clevis Style (24100-002)

    Quote Only
    Power-grip Pulling Eye 3/0 Awg, Clevis Style (24100-003)
    Power-grip Pulling Eye 3/0 Awg, Clevis Style
    Power-grip Pulling Eye 3/0 Awg, Clevis Style (24100-003)

    Quote Only
    Power-grip Pulling Eye 4/0 Awg, Clevis Style (24100-004)
    Power-grip Pulling Eye 4/0 Awg, Clevis Style
    Power-grip Pulling Eye 4/0 Awg, Clevis Style (24100-004)

    Quote Only
    Power-grip Pulling Eye 250 MCM, Clevis Style (24100-025)
    Power-grip Pulling Eye 250 MCM, Clevis Style
    Power-grip Pulling Eye 250 MCM, Clevis Style (24100-025)

    Quote Only
    Power-grip Pulling Eye 350 MCM, Clevis Style (24100-035)
    Power-grip Pulling Eye 350 MCM, Clevis Style
    Power-grip Pulling Eye 350 MCM, Clevis Style (24100-035)

    Quote Only
    Power-grip Pulling Eye - Compact 350 MCM, Clevis Style (24100-035C)
    Power-grip Pulling Eye - Compact 350 MCM, Clevis Style
    Power-grip Pulling Eye - Compact 350 MCM, Clevis Style (24100-035C)

    Quote Only
    Power-grip Pulling Eye 500 MCM, Clevis Style (24100-050)
    Power-grip Pulling Eye 500 MCM, Clevis Style
    Power-grip Pulling Eye 500 MCM, Clevis Style (24100-050)

    Quote Only
    Power-grip Pulling Eye 600 MMC, Clevis Style (24100-060)
    Power-grip Pulling Eye 600 MMC, Clevis Style
    Power-grip Pulling Eye 600 MMC, Clevis Style (24100-060)

    Quote Only
    Power-grip Pulling Eye 700 MCM, Clevis Style (24100-070)
    Power-grip Pulling Eye 700 MCM, Clevis Style
    Power-grip Pulling Eye 700 MCM, Clevis Style (24100-070)

    Quote Only
    Power-grip Pulling Eye 750 MCM, Compact Clevis Style (24100-075C)
    Power-grip Pulling Eye 750 MCM, Compact Clevis Style
    Power-grip Pulling Eye 750 MCM, Compact Clevis Style (24100-075C)

    Quote Only
    Power-grip Pulling Eye 750 MCM, Clevis Style (24100-075)
    Power-grip Pulling Eye 750 MCM, Clevis Style
    Power-grip Pulling Eye 750 MCM, Clevis Style (24100-075)

    Quote Only
    Power-grip Pulling Eye 1000 MCM, Clevis Style (24100-100)
    Power-grip Pulling Eye 1000 MCM, Clevis Style
    Power-grip Pulling Eye 1000 MCM, Clevis Style (24100-100)

    Quote Only
    Power-grip Pulling Eye 1000 MCM, Compact Clevis Style (24100-100C)
    Power-grip Pulling Eye 1000 MCM, Compact Clevis Style
    Power-grip Pulling Eye 1000 MCM, Compact Clevis Style (24100-100C)

    Quote Only
    Power-grip Pulling Eye 1250 MCM Clevis Style (24100-125)
    Power-grip Pulling Eye 1250 MCM Clevis Style
    Power-grip Pulling Eye 1250 MCM Clevis Style (24100-125)

    Quote Only
    Power-grip Pulling Eye 1500 MCM Clevis Style (24100-150)
    Power-grip Pulling Eye 1500 MCM Clevis Style
    Power-grip Pulling Eye 1500 MCM Clevis Style (24100-150)

    Quote Only
    Power-grip Pulling Eye 1750 MCM Clevis Style (24100-175)
    Power-grip Pulling Eye 1750 MCM Clevis Style
    Power-grip Pulling Eye 1750 MCM Clevis Style (24100-175)

    Quote Only
    Power-grip Pulling Eye 2000 MCM Clevis Style (24100-200)
    Power-grip Pulling Eye 2000 MCM Clevis Style
    Power-grip Pulling Eye 2000 MCM Clevis Style (24100-200)

    Quote Only
    Power-grip Pulling Eye 2000 MCM Compact Clevis Style (24100-200C)
    Power-grip Pulling Eye 2000 MCM Compact Clevis Style
    Power-grip Pulling Eye 2000 MCM Compact Clevis Style (24100-200C)

    Quote Only
    Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.
    Total: $0.00


    Sign in or register to access Job Lists.

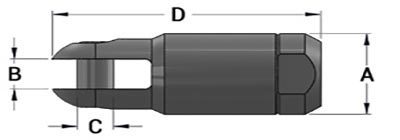

    Power-Grip Clevis Style Pulling Eye diagram
    Part # Cable Size Max. Core Dia. A B C D Weight Threaded Cone Nut Tapered Insert Body Fits Bridle
    Sling
    24100-001 1/0 AWG 0.39"
    9.9mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.68 lbs
    0.30 kg    		 24006-001 24005-001 24005-001 1/4"
    24000-002 2/0 AWG 0.44"
    11.1mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.67 lbs
    0.30 kg    		 24006-002 24005-001 24008-001
    24100-003 3/0 AWG 0.50"
    12.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.64 lbs
    0.29 kg    		 24006-003 24005-001 24008-001
    24100-004 4/0 AWG 0.54"
    13.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.61 lbs
    0.27 kg    		 24006-004 24005-001 24008-001
    24100-025 250 MCM 0.61"
    15.5mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.26 kg 24006-025 24005-001 24008-001
    24100-030 300 MCM 0.62"
    15.7mm    		 1-1/4"
    32mm    		 13/32"
    10.3mm    		 3/8"
    9.5mm    		 3-5/8"
    92mm    		 0.57 lbs
    0.26 kg    		 24006-030 24005-001 24008-001
    24100-035C 350 MCM
    Compact    		 0.65"
    16.5mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-5/8"
    117mm    		 1.94 lbs
    0.88 kg    		 24006-035C 24005-035 24008-035 1/4"
    &
    3/8"
    24100-035 350 MCM 0.71"
    18mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-5/8"
    117mm    		 1.9 lbs
    0.86 kg    		 24006-035 24005-035 24008-035
    24100-050 500 MCM 0.81"
    20.6mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-5/8"
    117mm    		 1.8 lbs
    0.81 kg    		 24006-050 24005-035 24008-035
    24100-060 600 MCM 0.91"
    23.1mm    		 1-7/8"
    48mm    		 3/8"
    9.5mm    		 5/8"
    15.9mm    		 4-5/8"
    117mm    		 1.8 lbs
    0.81 kg    		 24006-060 24005-035 24008-035
    24100-070 700 MCM 0.97"
    24.6mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.5mm    		 5-1/4"
    133mm    		 2.9 lbs
    1.3 kg    		 24006-070 24005-070 24008-070 3/8"
    &
    1/2"
    24100-075C 750 MCM 0.94"
    23.8mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.5mm    		 5-1/4"
    133mm    		 2.8 lbs
    1.2 kg    		 24006-075C 24005-070 24008-070
    24100-075 750 MCM 1.00"
    25.4mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.5mm    		 5-1/4"
    133mm    		 2.7 lbs
    1.2 kg    		 24006-075 24005-070 24008-070
    24100-100C 500 mm²
    Custom    		 1.03"
    26.2mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.5mm    		 5-1/4"
    133mm    		 2.6 lbs
    1.18 kg    		 24006-100C 24005-070 24008-070
    24100-100 1000 MCM 1.15"
    29.2mm    		 2-1/8"
    54mm    		 25/32"
    19.8mm    		 11/16"
    17.5mm    		 5-1/4"
    133mm    		 2.5 lbs
    1.1 kg    		 24006-100 24005-070 24008-070
    24100-125* 1250 MCM 1.29"
    32.8mm    		 2-3/4"
    70mm    		 1"
    25.4mm    		 7/8"
    22.2mm    		 7-1/4"
    184mm    		 6.7 lbs
    3.0 kg    		 24006-125 24005-125 24008-125 3/8"
    &
    1/2"
    24100-150 1500 MCM 1.41"
    35.8mm    		 2-3/4"
    70mm    		 1"
    25.4mm    		 7/8"
    22.2mm    		 7-1/4"
    184mm    		 6.4 lbs
    2.9 kg    		 24006-150 24005-125 24008-125
    24100-175* 1750 MCM 1.53"
    38.9mm    		 2-3/4"
    70mm    		 1"
    25.4mm    		 7/8"
    22.2mm    		 7-1/4"
    184mm    		 6.2 lbs
    2.8 kg    		 24006-175 24005-125 24008-125
    24100-200C* 45 mm
    Custom    		 1.75"
    44.5mm    		 2-3/4"
    70mm    		 1"
    25.4mm    		 7/8"
    22.2mm    		 7-1/4"
    184mm    		 4.7 lbs
    2.14 kg    		 24006-200C 24005-125 24008-125
    24100-200* 2000 MCM 1.63"
    41.4mm    		 2-3/4"
    70mm    		 1"
    25.4mm    		 7/8"
    22.2mm    		 7-1/4"
    184mm    		 5.9 lbs
    2.6 kg    		 24006-200 24005-125 24008-125
