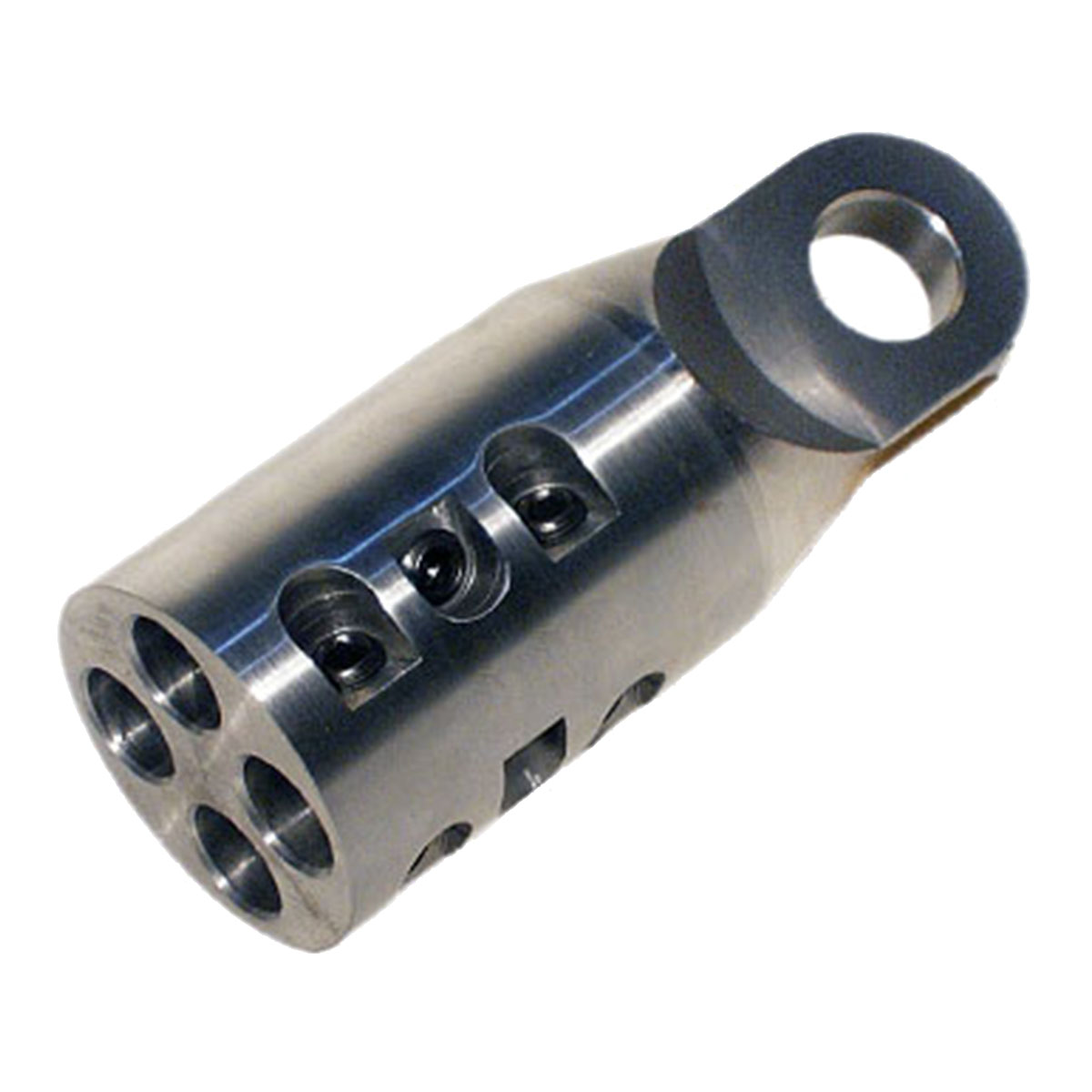

Multiplex Series 24300 Pulling Eye

Constructed of stainless steel, the 24300 series is designed to pull triplex or quadplex cables between 1/0 AWG and 500 MCM in short, straight runs. Series 24300 Multiplex pulling eyes, available in four different sizes, have four holes sized for the cable conductors on the bottom. Each conductor hole features three setscrews to clamp down on the cable, and each pulling eye includes three spare set screws and a hex key. The Multiplex pulling eyes are intended for short, straight pulls; extra care should be taken when pulling around bends or sheaves.

PRODUCT

PRICE

Multiplex Pulling Eye 1/0 Awg Lug Style (24300-001)

$316.06
Quote Only

Multiplex Pulling Eye 4/0 Awg Lug Style (24300-004)

$316.06
Quote Only

Multiplex Pulling Eye 350 Mcm Lug Style (24300-350)

$316.06
Quote Only

Multiplex Pulling Eye 500 Mcm Lug Style (24300-500)

$316.06
Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

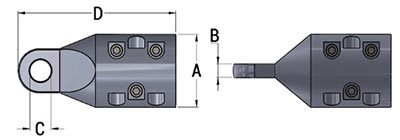

Part #	Max. Cable Size	Max. Core Size	A	B	C	D	Weight	Use with Line Swivel
24300-001	1/0 AWG	0.437"	1-3/4"	3/8"	5/8"	4-15/16"	1.4 lbs.	00505-015 to 00505-030
24300-004	4/0 AWG	0.593"	2-1/4"	3/8"	5/8"	4-5/8"	2.5 lbs.	00505-015 to 00505-030
24300-350	350 MCM	0.750"	2-11/16"	1/2"	13/16"	6"	4.1 lbs.	00505-020 to 00505-035
24300-500	500 MCM	0.875"	2-7/8"	1/2"	13/16"	6-1/8"	4.5 lbs.	00505-020 to 00505-035
