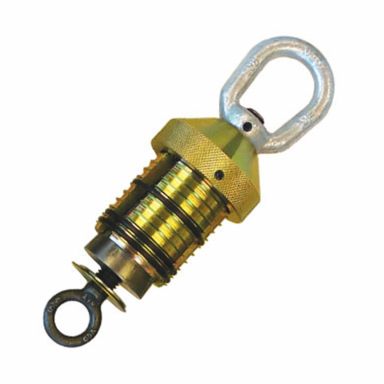

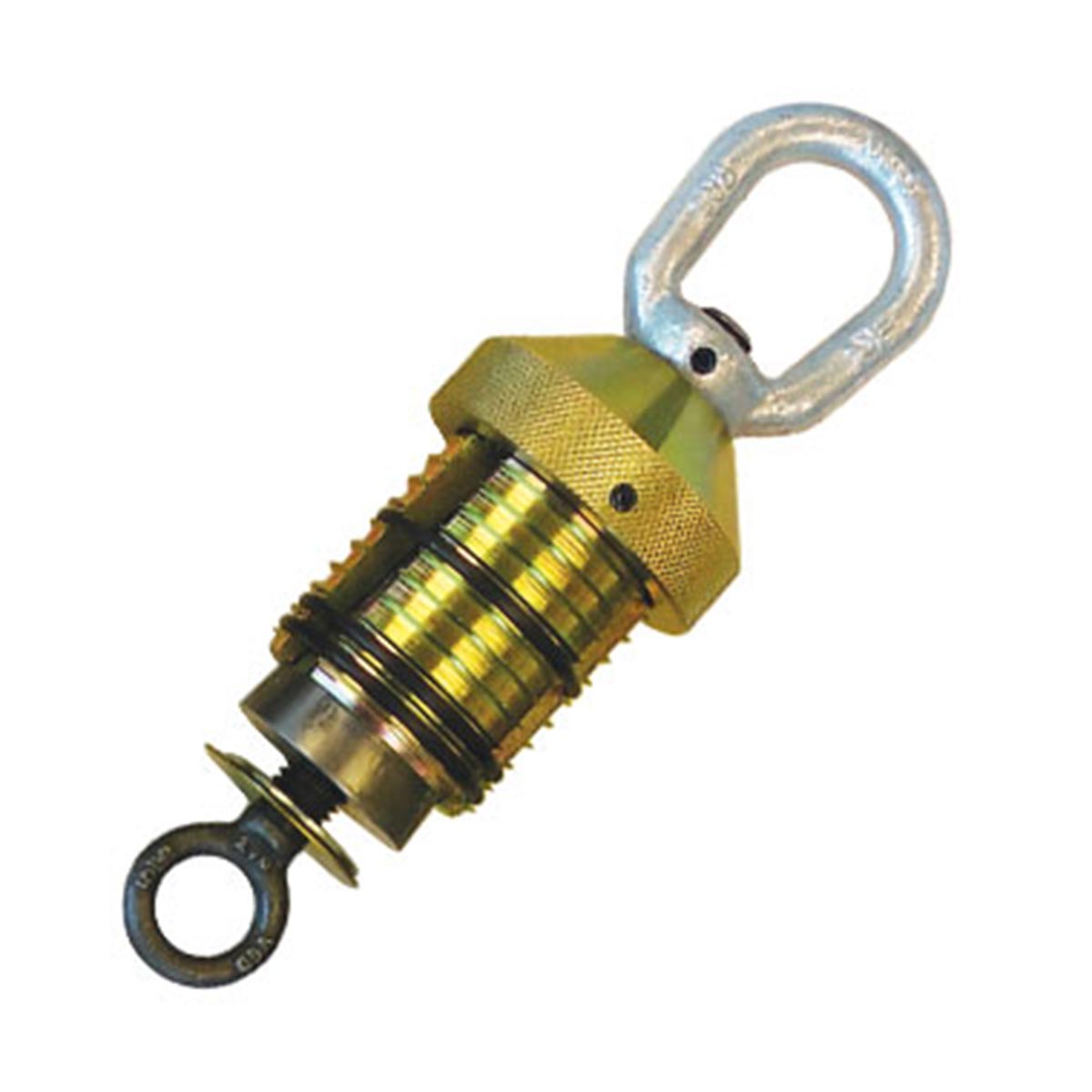

Duct Puller with Expanding Jaw

Ensure the final integrity of your polyethylene ducting with the 00620/00621 Series Duct Pullers. The expanding jaws grip the inside wall of the duct to evenly spread pull loads, allowing maximum pulling loads with no damage to the ducting.

Customize pulls by adding a duct sleeve to protect thin wall ducting; add a duct plug to keep trenchless elements, such as mud and slurry, from passing the puller and entering the duct.

PRODUCT

PRICE

Expanding Duct Puller 2" Duct (00620-200)

Quote Only

Expanding Duct Puller 2-1/2" Duct (00620-250)

Quote Only

Expanding Duct Puller 3" Duct (00620-300)

Quote Only

Expanding Duct Puller 4" Duct (00620-400)

Quote Only

Expanding Duct Puller 5" Duct (00620-500)

Quote Only

Expanding Duct Puller 6" Duct (00620-600)

Quote Only

Expanding Duct Puller 8" Duct (00620-800)

Quote Only

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Nominal Duct Size	3:1 Safe Working Load	Rear Eye Capacity (3:1 SWL).	Min. Duct Inside Dia.	Max. Duct Inside Dia.	Weight	Duct Sleeve Part #	Duct Plugger Part #
00620-125	1.25"	3,750 lbs.	1,000 lbs.	1.281"	1.500"	1.5 lbs.	00625-125	00630-125
00620-150	1.5"	3,750 lbs.	1,000 lbs.	1.469"	1.688"	1.7 lbs.	00625-150	00630-150
00620-200	2.0"	6,000 lbs.	1,500 lbs.	1.875"	2.125"	3.0 lbs.	00625-200	00630-200
00620-250	2.5"	6,000 lbs.	1,500 lbs.	2.250"	2.500"	5.0 lbs.	00625-250	00630-250
00620-300	3.0"	12,000 lbs.	2,500 lbs.	2.750"	3.063"	8.5 lbs.	00625-300	00630-300
00620-400	4.0"	12,000 lbs.	2,500 lbs.	3.500"	4.063"	15 lbs.	00625-400	00630-400
00620-500	5.0"	25,500 lbs.	4,250 lbs.	4.500"	5.000"	32 lbs.	00625-500	00630-500
00620-600	6.0"	25,500 lbs.	4,250 lbs.	5.438"	6.125"	48 lbs.	00625-600	00630-600
00620-800	8.0"	37,000 lbs.	12,000 lbs.	6.708"	7.875"	88 lbs.	N/A	00630-800
