DCD Pulling Eyes, Guides & Adapters

Roller Guides are used to help push rod through conduit with cable already in place. The rollers prevent the rod from wedging in under the cable as they rotate on hardened shoulder bolts. The shank attaches directly to the swivel rod end to provide axial rotation. The Roller Guides are recommended for use with the detectable duct rodders to make a better electrical connection with the walls of the ducting. Pulling Eyes are used for tying wire or pull tape to the end of the rod or used as a leader. They screw directly onto the rod end and are supplied standard with all of the DCD duct rodders and fish tapes. Flexible Guides are designed for helping the rod to navigate around tight bends. The two larger sizes are stainless steel, the smaller sizes are brass.

PRODUCT

PRICE

Flex. Guide 1/4" Diameter For 3/16" Fish Tapes (57110-000)

$24.19

Flex. Guide 3/8" Diameter 3/16" Fish Tapes (57110-001)

$29.20

Flex. Guide For 3/8", 7/16", 1/2" Ruf Rod Duct Rodders (57110-004)

$54.52

Flex. Guide For 1/4" Tuf Rod & 5/16" Ruf Rod Duct Rodders (57110-002)

$38.57

Pulling Eye For 3/16" Rod (57120-000)

$11.50

Pulling Eye For 1/4" Tuf Rod & 5/16" Ruf Rod Duct Rodders (57120-002)

$25.17

Pulling Eye For 3/16" Fish Tapes (57120-001)

$10.60

Pulling Eye For 3/8", 7/16", 1/2" Ruf Rod Duct Rodders (57120-004)

$30.20

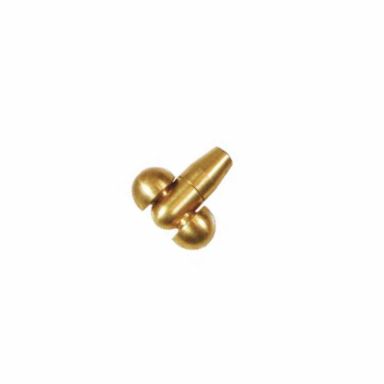

Roller Guide For 3/16" Reel Rod FishTapes (57150-001)

$41.94

Roller Guide For 1/4" Tuf Rod & 5/16"Ruf Rod Duct Rodders (57150-002)

$62.08

Roller Guide For 3/8", 7/16", 1/2" Ruf Rod Duct Rodders (57150-004)

$83.48

Flexible Sonde Adapter 5/16"UN to M10 for 1/4" & 5/16" Rod (57170-012)

$136.69

Flexible Sonde Adapter 3/8"UN to M10 for 3/8", 7/16", 1/2" Rod (57170-013)

$129.86

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Material	Rod Diameter	Head Diameter	Overall Length	Thread Connection	Weight
57110-000	Brass	1/8" & 3/16"	5/16"	3.5"	#12 UNC	0.02 lbs
57110-001	Brass	3/16" & 3/16"	3/8"	3.5"	#12 UNC	0.03 lbs
57110-002	Stainless Steel	1/4" & 5/16"	9/16"	6"	5/16" UNC	0.11 lbs
57110-004	Stainless Steel	3/8", 7/16" & 1/2"	3/4"	12"	3/8" UNC	0.27 lbs
