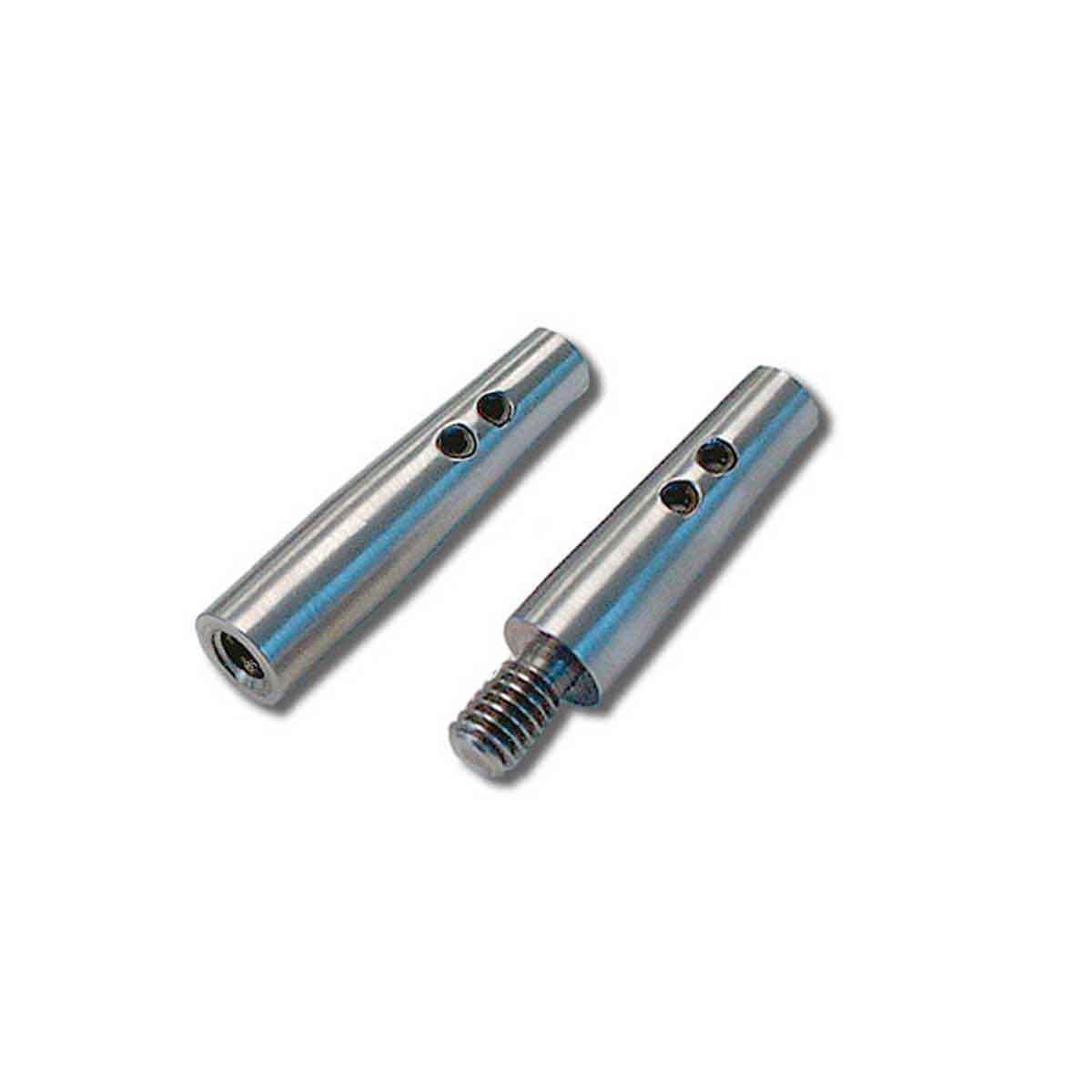

DCD Duct Rodder Rod Ends

These rod ends are used as a means of attaching accessories to the rod. Male rod ends are standard on the leading end of the DCD duct rodders and fish tapes.These rod ends are a means the replace ends that have broken off or been damaged. The rod ends are designed to be glued on in the traditional manner or can be attached by means of four clamping set screws or can be both glued and screwed. The larger 5/16”, 3/8”, 7/16” and 1/2” rod ends are made from stainless steel.

PRODUCT

PRICE

Male Rod End For 3/16" Reel Rod Fish Tapes (57135-001)

$6.53

Male Rod End For 1/4" Tuf Rod Duct Rodders (57135-003)

$39.14

Male Rod End For 5/16" Ruf Rod Duct Rodders (57135-005)

$35.23

Male Rod End For 3/8" Ruf Rod Duct Rodders (57135-004)

$40.26

Male Rod End For 1/2" Ruf Rod Duct Rodders (57135-007)

$40.26

Male Rod End For 7/16" Ruf Rod Duct Rodders (57135-006)

$40.26

Swivel Rod End For 1/4" Tuf Rod Rodders (57140-003)

$58.73

Swivel Rod End For 3/8" Ruf Rod Duct Rodders (57140-004)

$62.91

Swivel Rod End For 5/16" Ruf Rod Duct Rodders (57140-005)

$76.12

Swivel Rod End For 7/16" Ruf Rod Duct Rodders (57140-006)

$62.91

Swivel Rod End For 1/2" Ruf Rod Duct Rodders (57140-007)

$62.91

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Female Rod End	MaleRod End	Rod Diameter	Body Diameter	Thread Connection	Weight
N/A	57135-000	1/8"	1/4"	#12 UNC	0.01 lbs
N/A	57135-001	3/16"	1/4"	#12 UNC	0.01 lbs
57130-003	57135-003	1/4"	1/2"	5/16" UNC	0.07 lbs
57130-005	57135-005	5/16"	1/2"	5/16" UNC	0.07 lbs
57130-004	57135-004	5/16"	5/8"	3/8" UNC	0.13 lbs
57130-006	57135-006	7/16"	5/8"	3/8" UNC	0.13 lbs
57130-007	57135-003	7/16"	5/8"	3/8" UNC	0.13 lbs
