Key Features
- 7,700 lb. tensile strength rod
- 10" bendng radius
- Standard units come with swivel rod end and pulling eye
- Deluxe version includes an accessory kit
- 5/16" diameter, pultrusion processed, high strength fiberglass rod
- Frames allow for vertical or horizontal payout
- Frame size: 33-5/16"L x 11"W x 34"H
- 5/16" UNC male threaded rod end
- Low profile with wheels inside the frame width Steel brake handle
- Available in up to 1000' lengths
PDF Catalogs & Additional Info

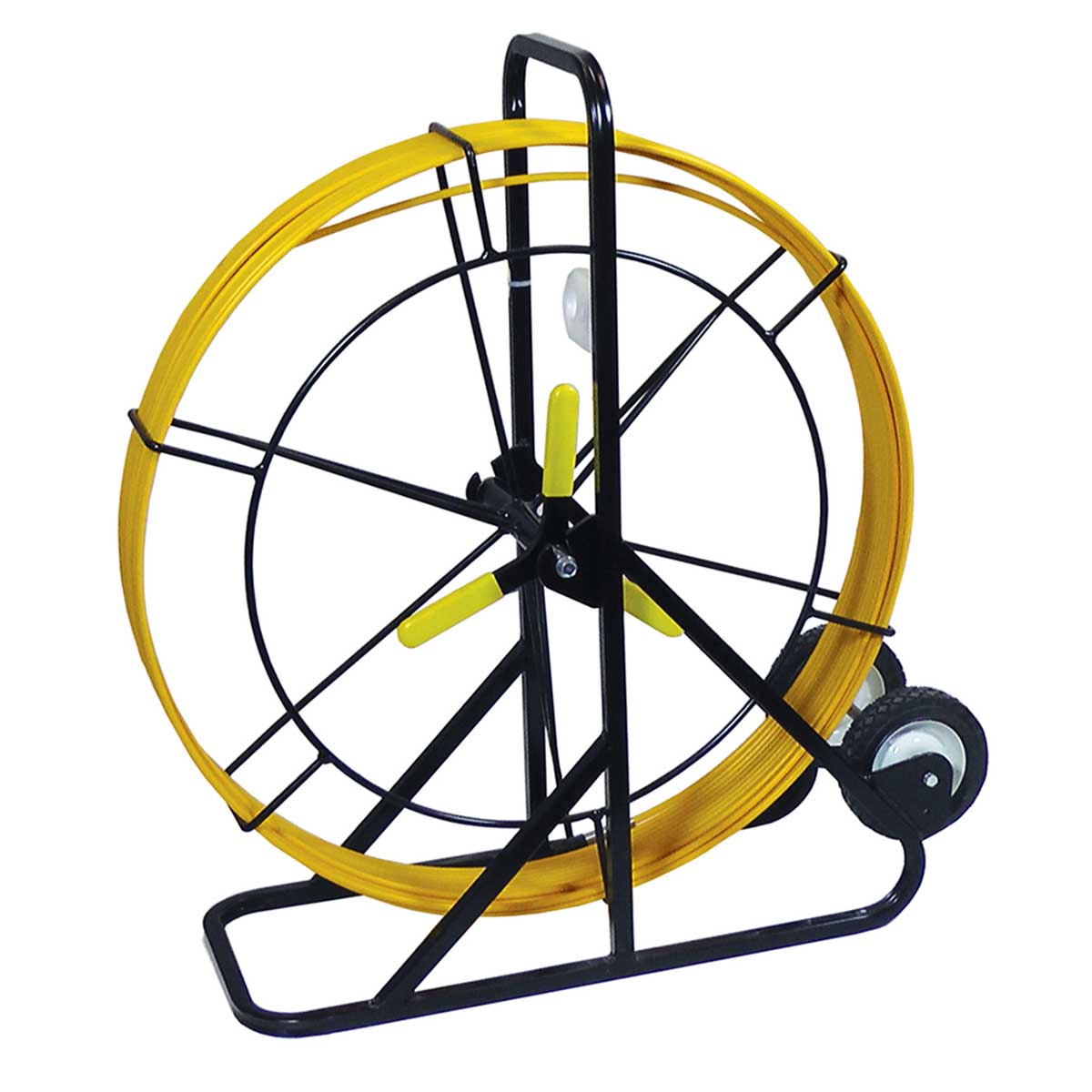

DCD 5/16" Ruf Rod Duct Rodder
The standard unit includes a female rod end, a swivel rod end and a pulling eye. The deluxe version of the rodder includes following accessories: (1) Splice Connector, (1) Flexible Guide Head, (1) Roller Guide, (1) Clevis End, (1) Fiberglass Adhesive, (1) Rod Gripper, and (1) Accessory Pouch.
All accessories that attach to the rod can be glued in the traditional manner or can be clamped with set screws. For extra security, they can be both glued and clamped.
The 5/16" and larger DCD Rodders ship on a pallet. Please request a quote and we will reach out to verify the shipping options available to your location.
The core of the rod is manufactured by the pultrusion process. This involves impregnating high strength continuous glass fiber filaments with a liquefied resin. The fibers are drawn into a heated die where the resin matrix is cured, bonding the fibers together and allowing mechanical loads to be transmitted through the matrix and distributed amongst the fibers. The resulting pultruded rod combines both the high stiffness required to push the rod through long distances of ducting, with the flexibility to handle tight bends without damage. This inner core is then coated with a highly durable, scratch resistant polypropylene sheath which protects the core from mechanical damage.
