Key Features
- 2,200 lb. tensile strength rod
- 4" bendng radius
- Deluxe version includes an accessory kit
- 3/16" diameter, pultrusion processed, high strength fiberglass rod
- Frames allow for vertical or horizontal payout
- Frame size: 16"L x 8-1/8"W x 19-3/8"H
- #12 UNC male threaded rod end
PDF Catalogs & Additional Info

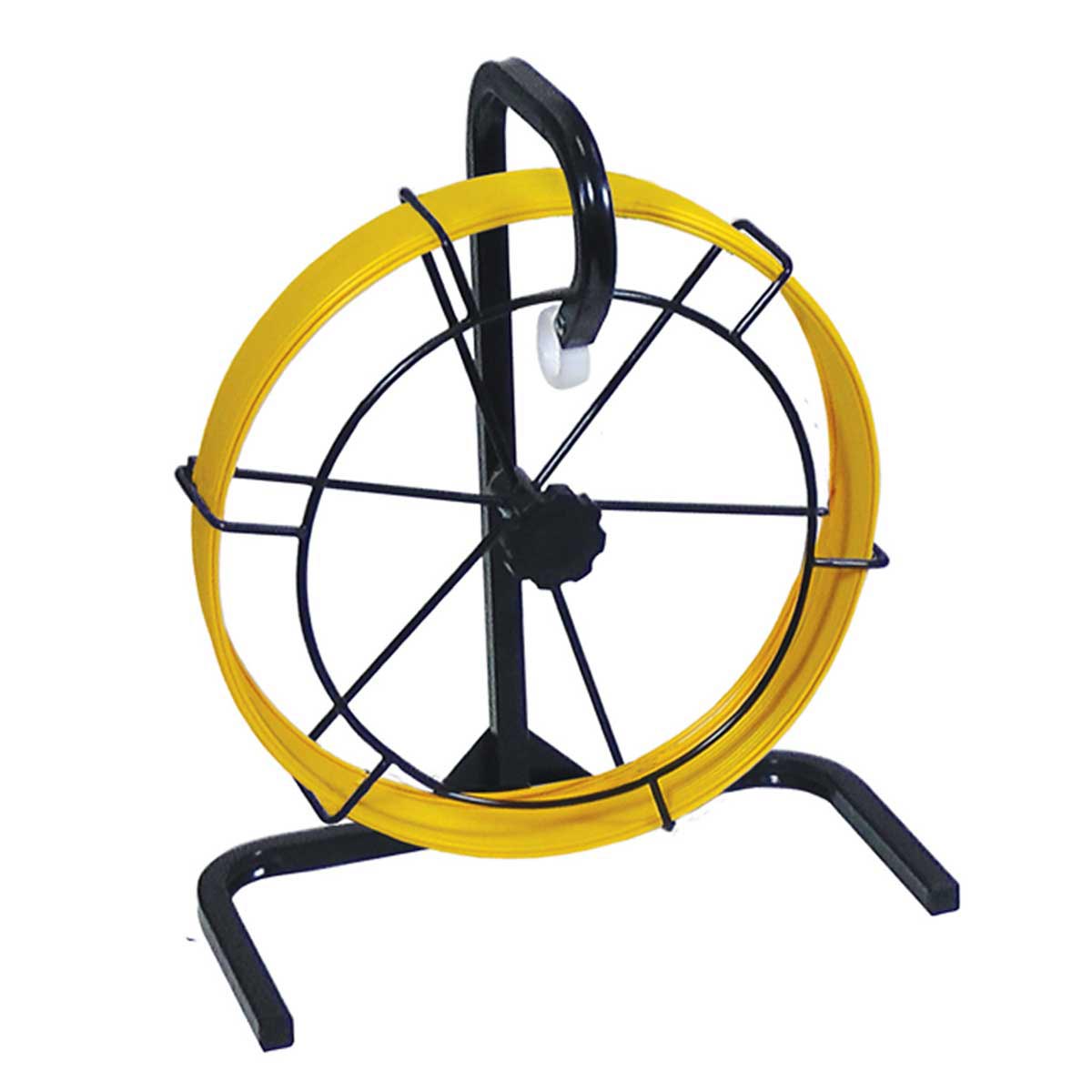

DCD 3/16" Reel Rod Fish Tape

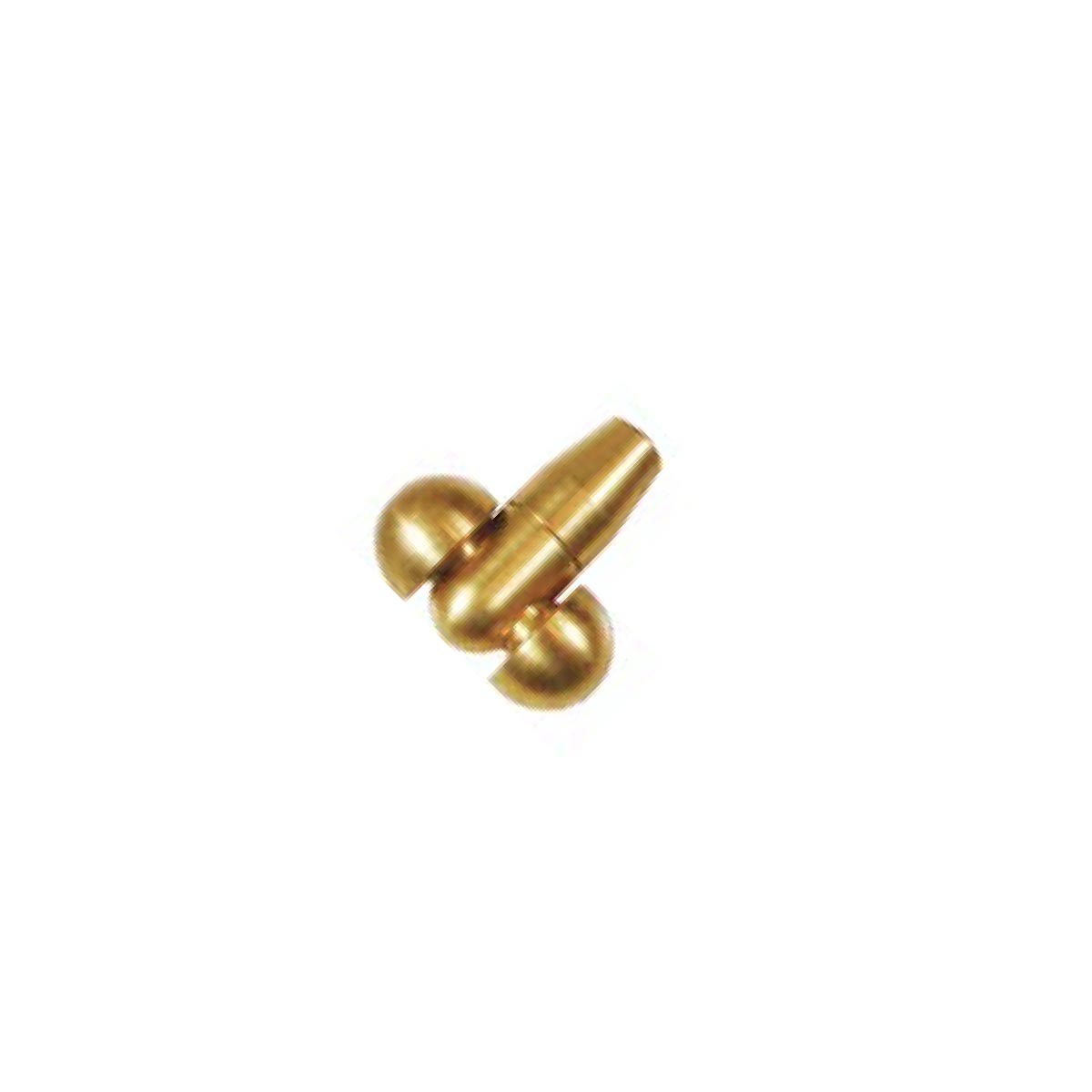

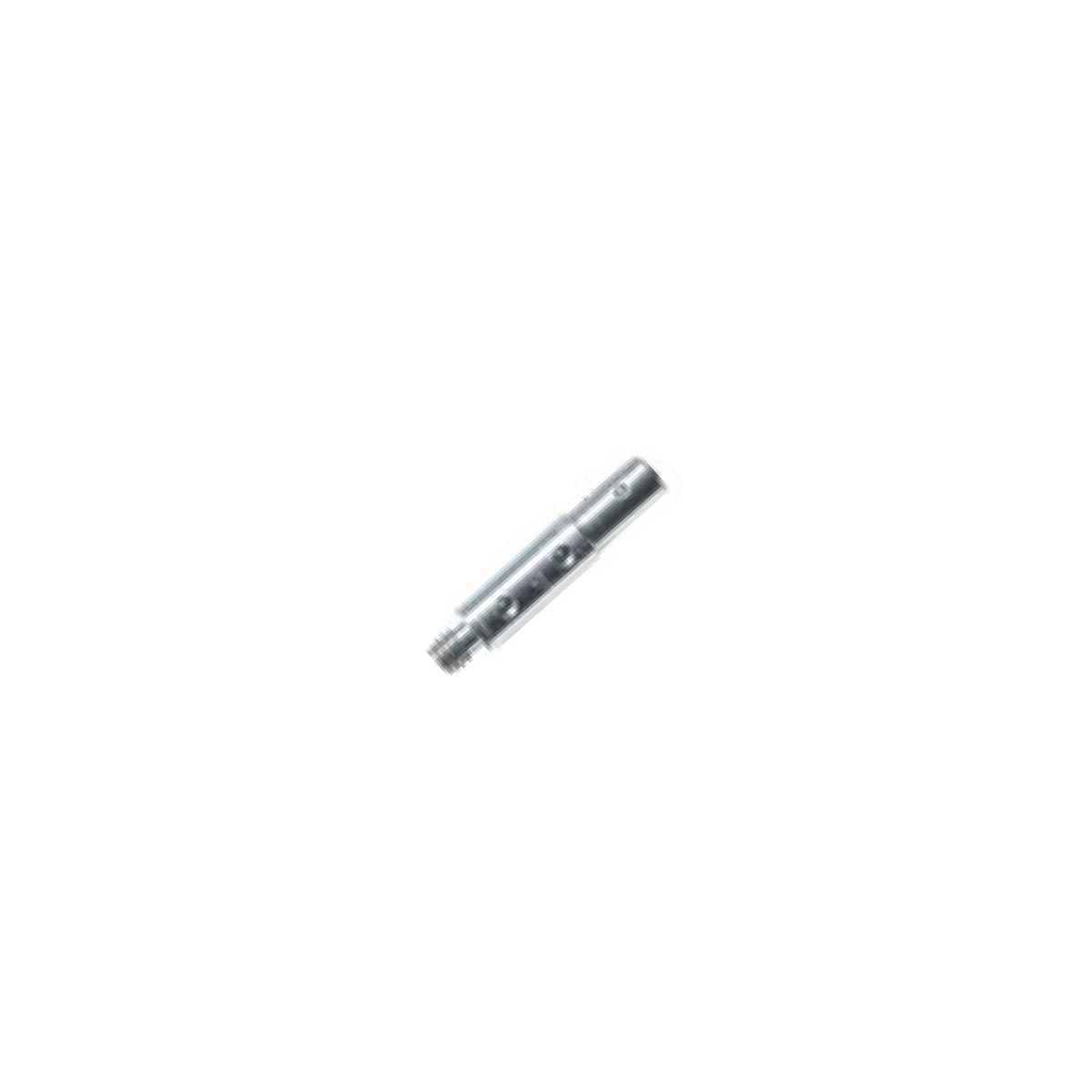

The Standard Reel Rods include a male rod end and a pulling eye. The Deluxe version includes following accessories: (2) Splice Connectors, (1) Flexible Guide Head, (1) Roller Guide, (1) Male Rod End, (1) Fiberglass Adhesive, (1) Rod Gripper, and (1) Accessory Pouch.
Although the fiberglass rods have very high reliability, improper handling can cause the rod to break. In these instances, repair is simple and can be carried out by any user.
The core of the rod is manufactured by the pultrusion process. This involves impregnating high strength continuous glass fiber filaments with a liquefied resin. The fibers are drawn into a heated die where the resin matrix is cured, bonding the fibers together and allowing mechanical loads to be transmitted through the matrix and distributed amongst the fibers. The resulting pultruded rod combines both the high stiffness required to push the rod through long distances of ducting, with the flexibility to handle tight bends without damage. This inner core is then coated with a highly durable, scratch resistant polypropylene sheath which protects the core from mechanical damage.
