DCD Duct Rodder Rod Splices

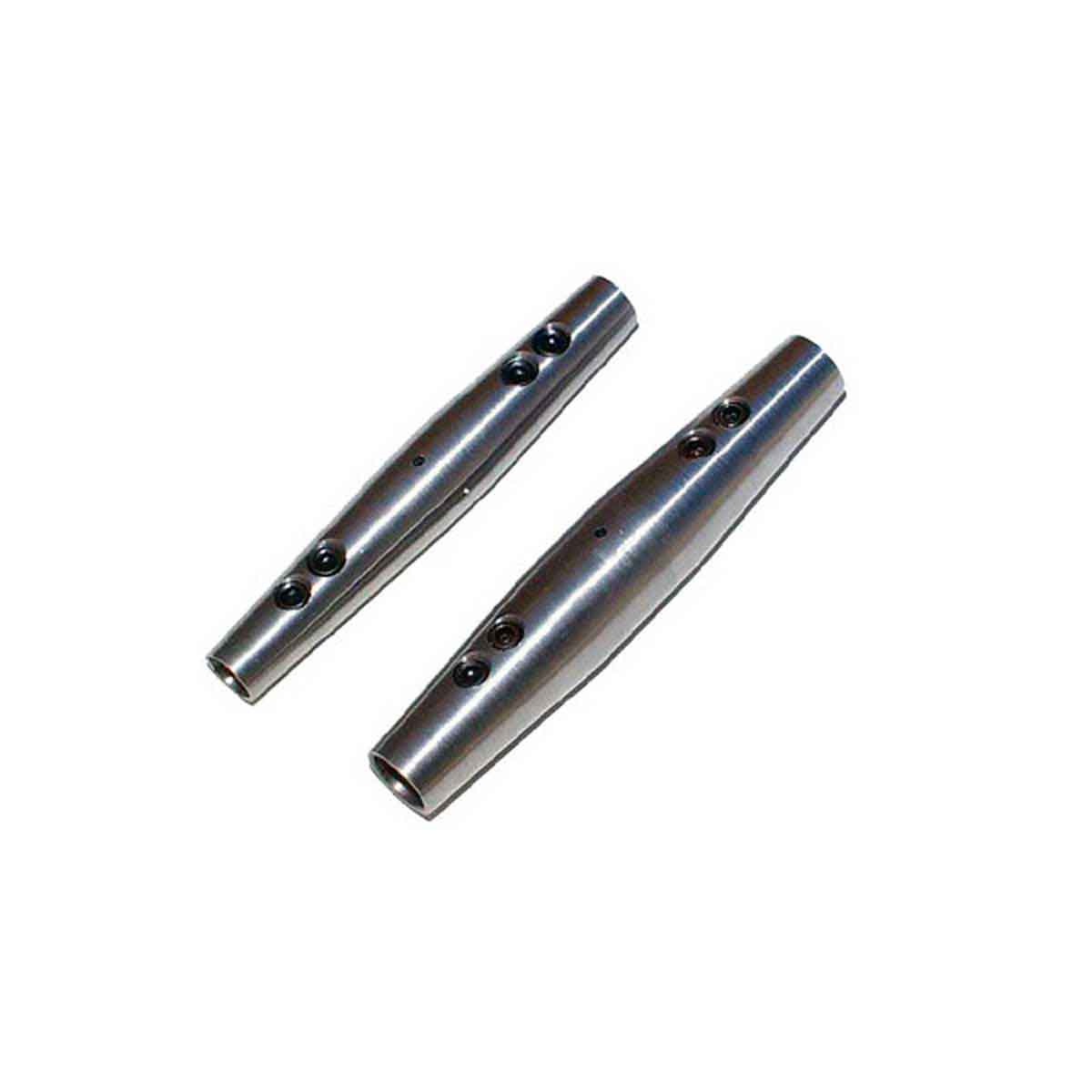

The splices are used to repair a break in the rod. The five larger sizes are stainless steel and can be glued or screwed on, the two smaller sizes are brass and must be glued. Non-metallic splices should be used to repair the traceable duct rodders. It should be noted that having a solid section in the middle of the rod may cause problems with bending at that point and care should be taken when winding rod back into the cage.

PRODUCT

PRICE

Splice Connector For 1/8" Rod (57100-000)

$5.21

Splice Connector For 1/4" Tuf Rod Duct Rodders (57100-003)

$43.41

Splice Connector For 3/16" Reel Rod Fish Tapes (57100-001)

$6.96

Splice Connector For 3/8" Ruf Rod Duct Rodders (57100-004)

$48.62

Splice Connector For 5/16" Ruf Rod Duct Rodders (57100-005)

$43.41

Splice Connector For 7/16" Ruf Rod Duct Rodders (57100-006)

$48.62

Splice Connector For 1/2" Ruf Rod Duct Rodders (57100-007)

$48.62

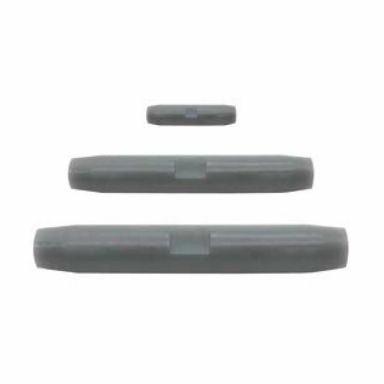

Splice Connector, Non-Metallic For 3/16" Traceable Fish Tapes (57101-001)

$13.59

Splice Connector, Non-Metallic 7/16" Rodders (57101-006)

$29.57

Splice Connector, Non-Metallic For 5/16" Traceable Rodders (57101-005)

$20.96

Flex. Guide 1/4" Diameter For 3/16" Fish Tapes (57110-000)

$25.04

Flex. Guide 3/8" Diameter 3/16" Fish Tapes (57110-001)

$30.22

Most In-Stock items ship within 48 hours, if an item is out of stock you will be contacted within 24 hours.

Total: $0.00

Sign in or register to access Job Lists.

Part #	Material	Rod Diameter	Weight
57100-000	Brass	1/8"	0.01 lbs
57100-001	Brass	3/16"	0.01 lbs
57100-003	Stainless Steel	1/4"	0.09 lbs
57100-005	Stainless Steel	5/16"	0.09 lbs
57100-004	Stainless Steel	3/8"	0.14 lbs
57100-006	Stainless Steel	7/16"	0.14 lbs
57100-007	Stainless Steel	1/2"	0.14 lbs
